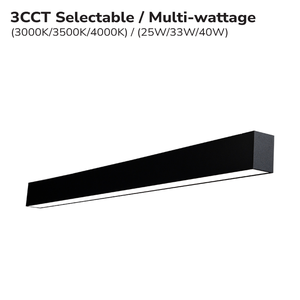

LED LINEAR PENDANT LIGHT 3CCT 0-10V DIMMABLE

💡 4 ft or 8 ft · direct or direct/indirect · 3 selectable color temperatures and wattages · 0-10V dimmable · black or white

The LED linear pendant light brings even, glare-free light to offices, meeting rooms, classrooms, stores and lobbies. Its 60 × 85 mm (2.36 × 3.35 in) extruded aluminum profile comes in 4 ft or 8 ft, in a black or white finish.

Choose direct lighting, which lights downward, or direct/indirect lighting, which also lights the ceiling for a softer feel. Either way, wattage and color temperature are set on site, and the fixture dims down to 1% with 0-10V.

• 4 ft or 8 ft · direct or direct/indirect · black or white finish
• Selectable color temperature: 3000K, 3500K or 4000K
• Selectable wattage: 25-33-40W (4 ft) or 50-66-80W (8 ft), up to 10,400 lumens
• 0-10V dimmable down to 1% · DLC Premium listed
• Special order: our team confirms the lead time when you order

Direct or direct/indirect?

• Direct – all the light goes down, onto workstations and tables.
• Direct/indirect – part of the light washes the ceiling, so the room feels taller and brighter, with less contrast. Both outputs adjust independently.

In direct/indirect, the 4 ft version offers 25-33-40W down and 22-28-33W up; the 8 ft version, 50-66-80W down and 44-56-66W up.

Wattage and color set on site

One fixture covers several needs: you choose the wattage and the color temperature at installation.

• 3000K (warm white) – a welcoming feel for lobbies, restaurants and stores.
• 3500K (neutral white) – a good balance for meeting rooms and classrooms.
• 4000K (natural white) – crisp light for offices and work areas.

At 130 lumens per watt, the 4 ft version delivers up to 5,200 lumens and the 8 ft version up to 10,400 lumens. The fixture is DLC Premium listed.

Soft, even light

The frosted polycarbonate lens snaps onto the profile and spreads Lambertian light with no visible hot spots. The fixture dims down to 1% with a 0-10V dimmer or a 0-10V control system.

Suspension and installation

The fixture ships with two 6 ft galvanized steel aircraft cables (1.5 mm, 1/16 in) with adjustable grippers for easy leveling on site, and a pre-installed 6 ft 18/5 STW 600V power cord with quick connector. End caps are die-cast aluminum and the finish is polyester powder paint.

See also all our LED pendant lights.
