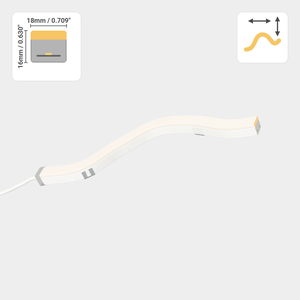

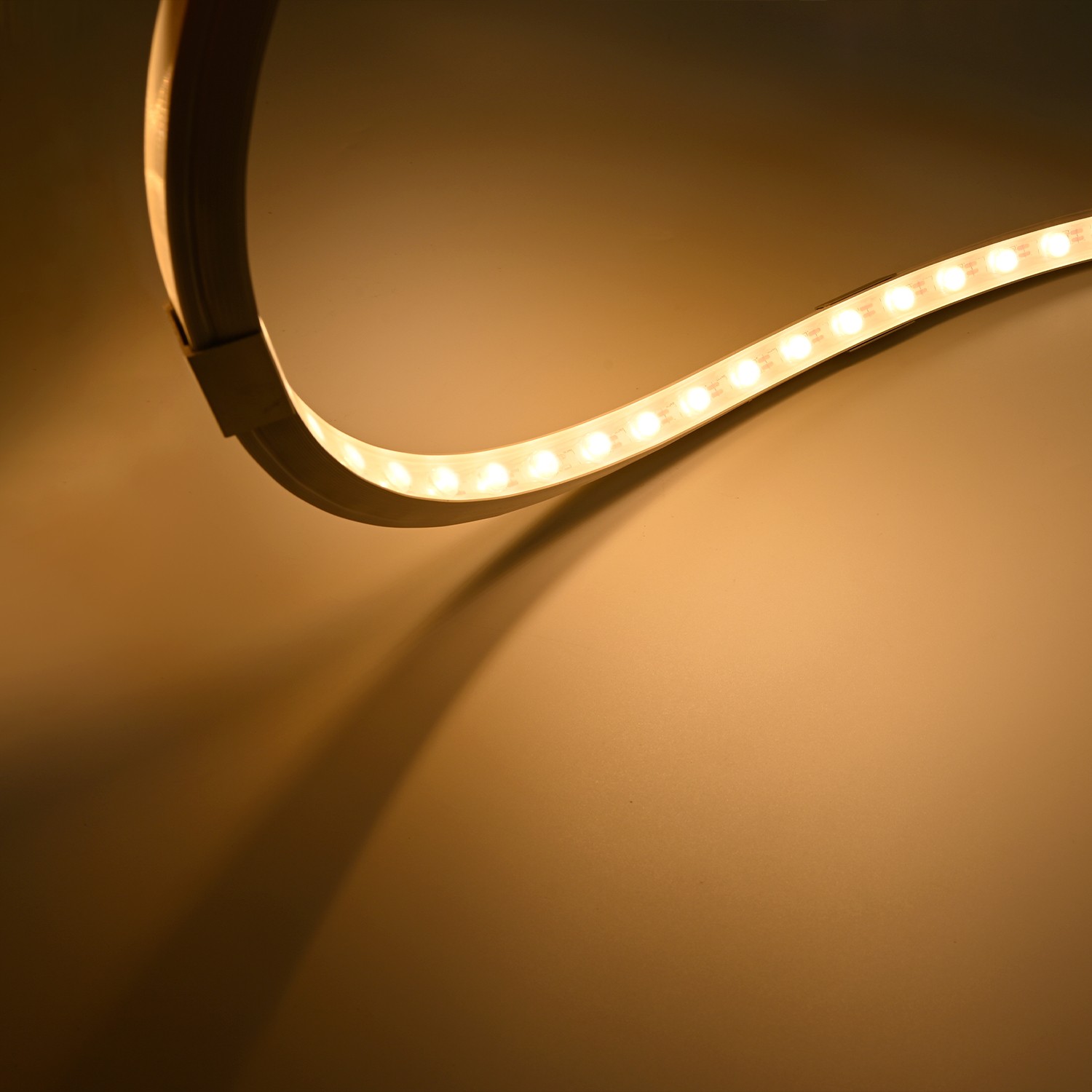

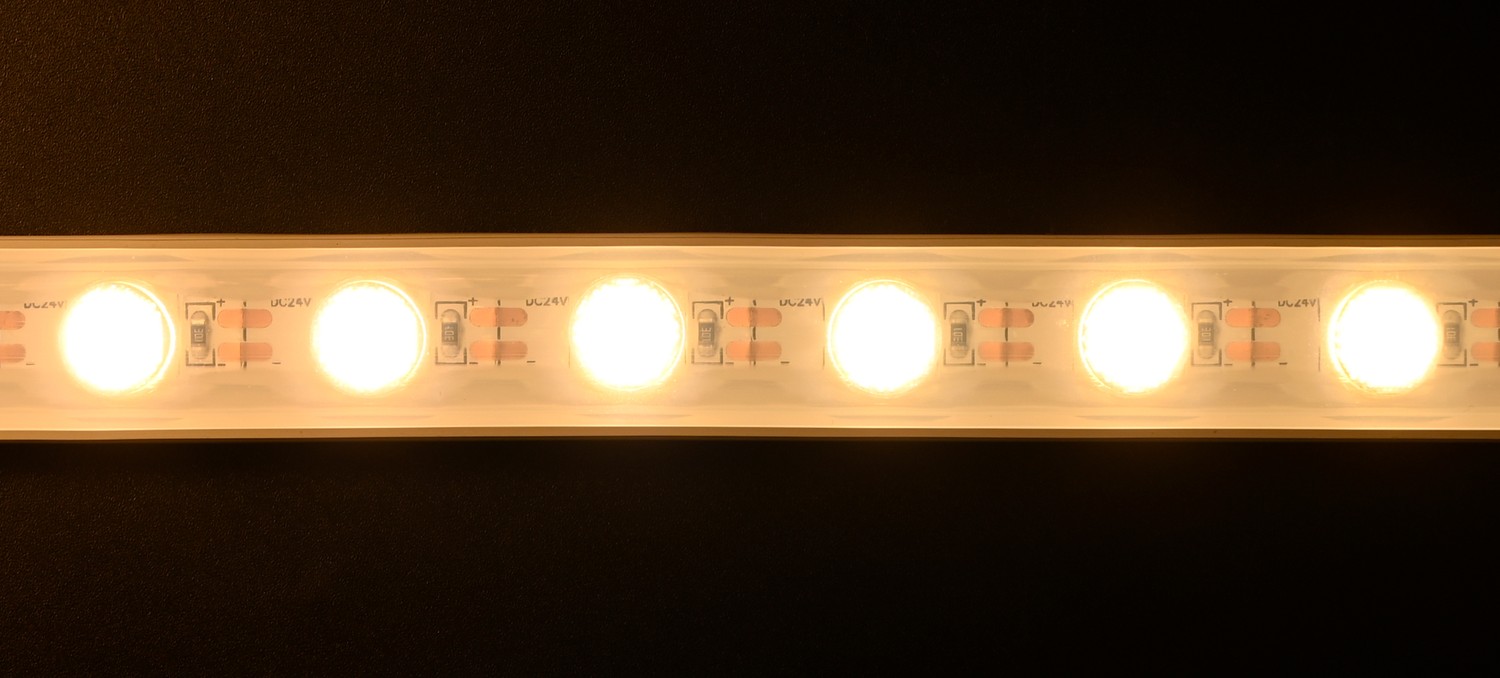

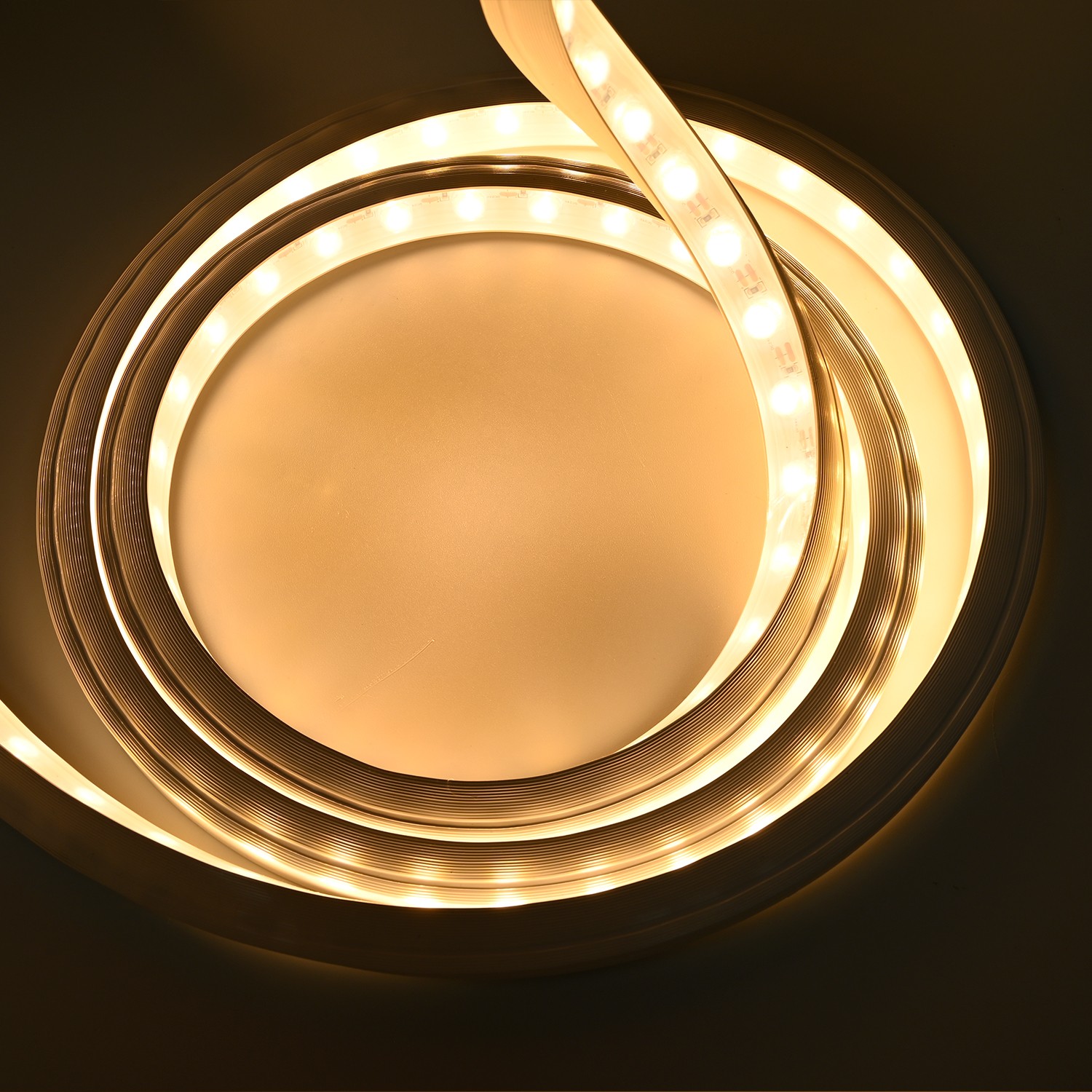

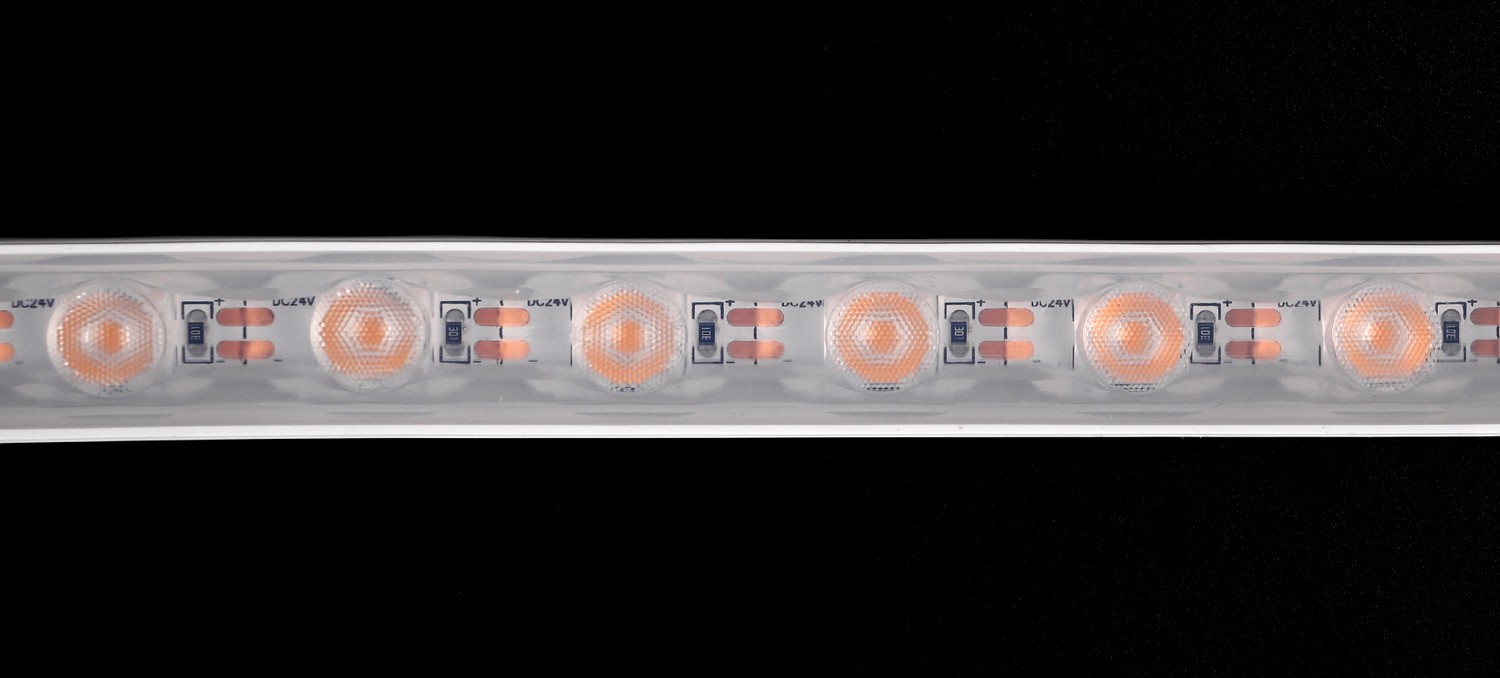

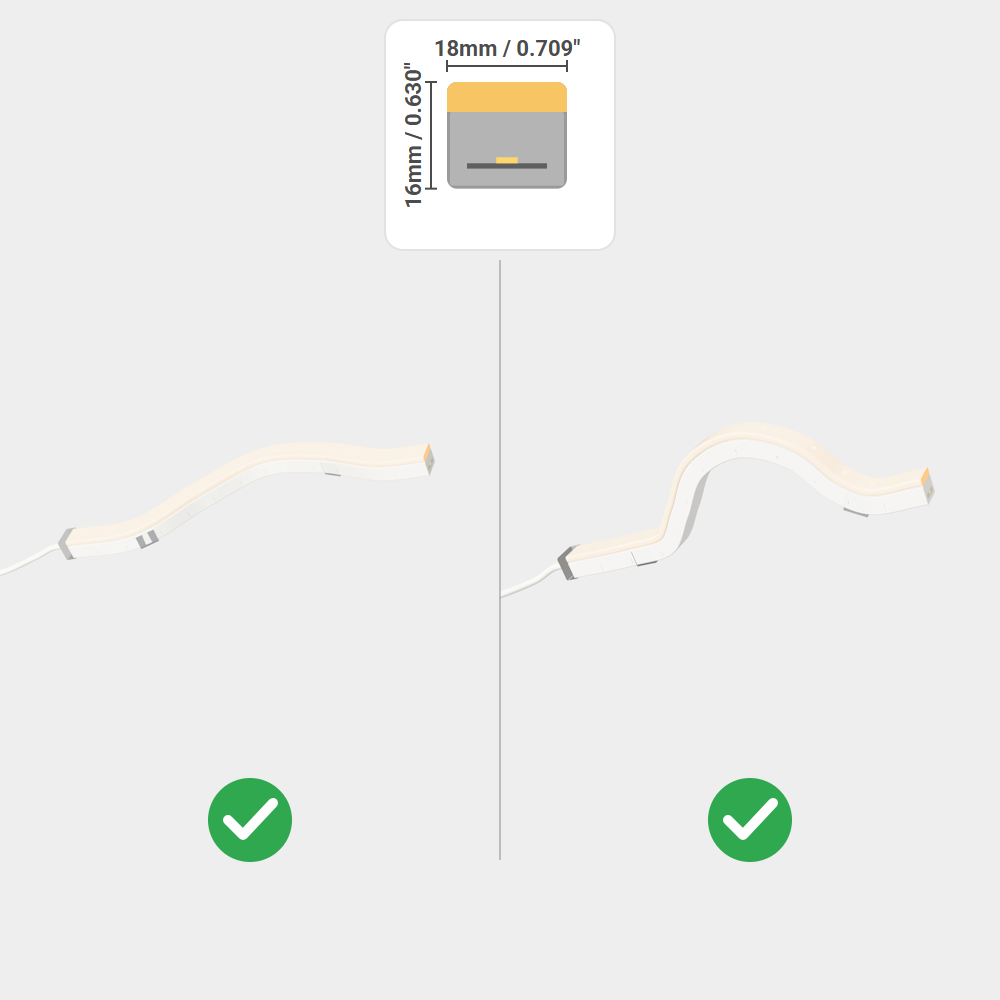

FLEX NEON LED WALL WASHER 20W/M

Available reel: 5 m (16.4 ft)

The Flex Neon Wall Washer 20W/m 30° IP65 by LEDCO is the professional LED solution engineered for wall washing and architectural facade illumination. Its precise 30-degree beam angle concentrates light to dramatically reveal textures, materials, and surfaces with outstanding visual impact.

Running at 24V DC with a consumption of 20W/m, this wall washer neon strip delivers generous and uniform brightness. Its 3000K warm white color temperature enhances surfaces and reveals materials beautifully. IP65 rated for indoor and outdoor installations.

Recommended Applications

• Architectural wall washing (stone, brick, concrete)
• Facade lighting and commercial storefronts
• Garden, terrace and pergola lighting
• Art galleries, museums and luxury spaces
• Signage and illuminated displays

Performance & Installation

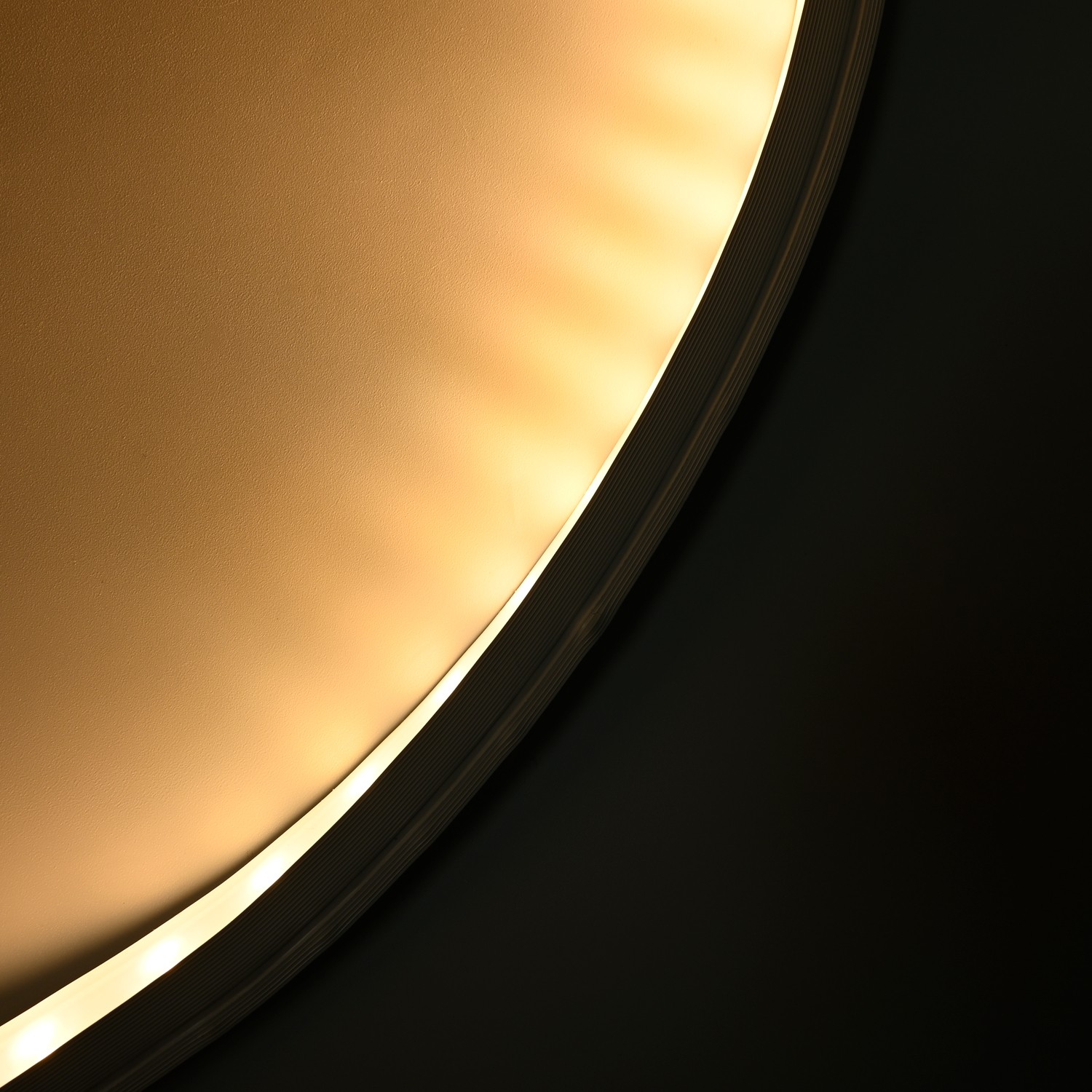

Its 30° beam angle delivers a precise and dramatic grazing effect on vertical surfaces, with a luminous flux of ~1300 lm/m and a CRI ≥ 90. IP65 rated for covered outdoor use. Rated lifespan of 50,000 hours.

Power Supply Calculation

This neon strip consumes 20W/m, approximately 6.1 watts per foot. Multiply total length by 6.1 then add a 20% safety margin.

For a single 5m reel: 5 × 20W = 100W → use a 24V power supply rated at least 120W.

Dimming & Control

Compatible with all LEDCO 24V white LED dimmers. Two ways to control intensity:

• W21 – Wireless wall controller, range up to 100 feet, up to 4 zones.
• R21 – RF remote, range up to 100 feet, up to 4 zones.
• Universal 4-zone 12A receiver – Installed between power supply and strip.

Complete your installation with a 24V power supply.

Complete your installation with dedicated accessories:

• Endcap with hole
• Endcap without hole
• Mounting bracket
