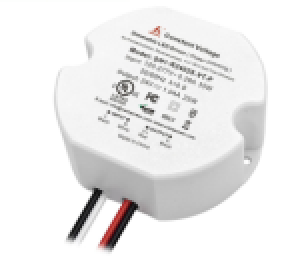

24V 25W IP20 TRANSFORMER (DIMM.) SMALL

The 25W dimmable LED power supply by LEDCO is a compact 24V DC constant voltage driver designed to control the brightness of your LED strips and other 24V low-voltage fixtures. Its phase-cut dimming makes it compatible with forward-phase and reverse-phase wall dimmers (TRIAC, MLV and ELV).

TECHNICAL SPECIFICATIONS

This dimmable LED driver delivers 25W (1.04A) of power at 24V DC. It accepts an input voltage of 120 to 277V AC (50/60 Hz), with a power factor above 0.9. Its compact housing, fitted with mounting tabs, makes it easy to install in tight spaces.

Wiring is done with leads: input L (black) and N (white), output V+ (red) and V- (black). Rated IP20, its all-plastic housing is suitable for dry and damp (covered) locations. To ensure optimal lifespan, it is recommended not to exceed 80% of total capacity, meaning a maximum load of 20W.

SAFETY AND CERTIFICATIONS

cULus listed for use in Canada and the United States and FCC compliant, this dimmable LED transformer is a Class 2 power supply with a safety extra-low voltage (SELV) output.

COMPATIBILITY AND APPLICATIONS

This power supply is compatible with our LED strips and fixtures operating on 24V DC. With a usable capacity of 20W, it powers up to 2 meters of 9.6W/m LED strip or 1 meter of 19.2W/m strip. It is ideal for:

• Under-cabinet kitchen lighting with wall-mounted dimming control.
• Decorative LED strip lighting in coves, cornices and mouldings.
• Accent lighting in display cases and furniture.
• Small installations requiring a compact, dimmable power source.

For larger projects, explore our dimmable LED power supplies in 48W, 96W and 200W models. For a quick quote, contact our team at (450) 444-4007 or visit our showroom in Saint-Hubert, on Montreal's South Shore.
