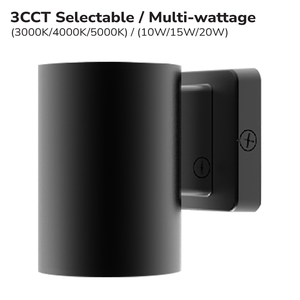

OUTDOOR LED CYLINDER 3CCT 120-347V – CEILING OR WALL

💡 Ceiling, wall or wall up/down · built-in photocell · 3 color temperatures and several wattages · IP65 · 120-347V

The outdoor LED cylinder light highlights the facades, entrances, columns and soffits of homes, hotels, restaurants and stores. Its black die-cast aluminum housing is IP65 rated and runs from -40°C to 40°C.

Three models are available: ceiling (20W), wall (20W) and wall up/down (40W), which lights both up and down. All include a built-in photocell and dim with 0-10V.

• 3 models: ceiling 20W, wall 20W or wall up/down 40W
• Selectable color temperature: 3000K, 4000K or 5000K
• Built-in photocell · 0-10V dimmable
• IP65 rated · 120-347V
• Special order: our team confirms the lead time when you order

Three models for every facade

• Ceiling 20W – under a canopy, an awning or a soffit: selectable 10, 15 or 20W (1,200 to 2,400 lumens).
• Wall 20W – a 45° downward beam, on each side of a door or along a wall: 10, 15 or 20W (1,200 to 2,400 lumens).
• Wall up/down 40W – two 45° beams that draw light on the wall, up and down: 40W (4,800 lumens) or 20W up, down or both (2,400 lumens).

Wattage and color set on site

The 3CCT selector offers 3000K (warm white), 4000K (natural white) or 5000K (daylight), to match the style of the building. Efficacy reaches 105 lumens per watt or more.

Photocell and 0-10V dimming

The built-in photocell turns the cylinder on at dusk and off in the morning. The fixture is also compatible with 0-10V dimming, for example with a 0-10V dimmer.

Rugged and long-lasting

The premium polycarbonate lens is protected by a glass cover. The die-cast aluminum housing dissipates LED heat and offers a 50,000-hour lifespan. See also our other LED wall lights.
