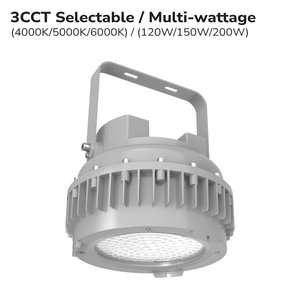

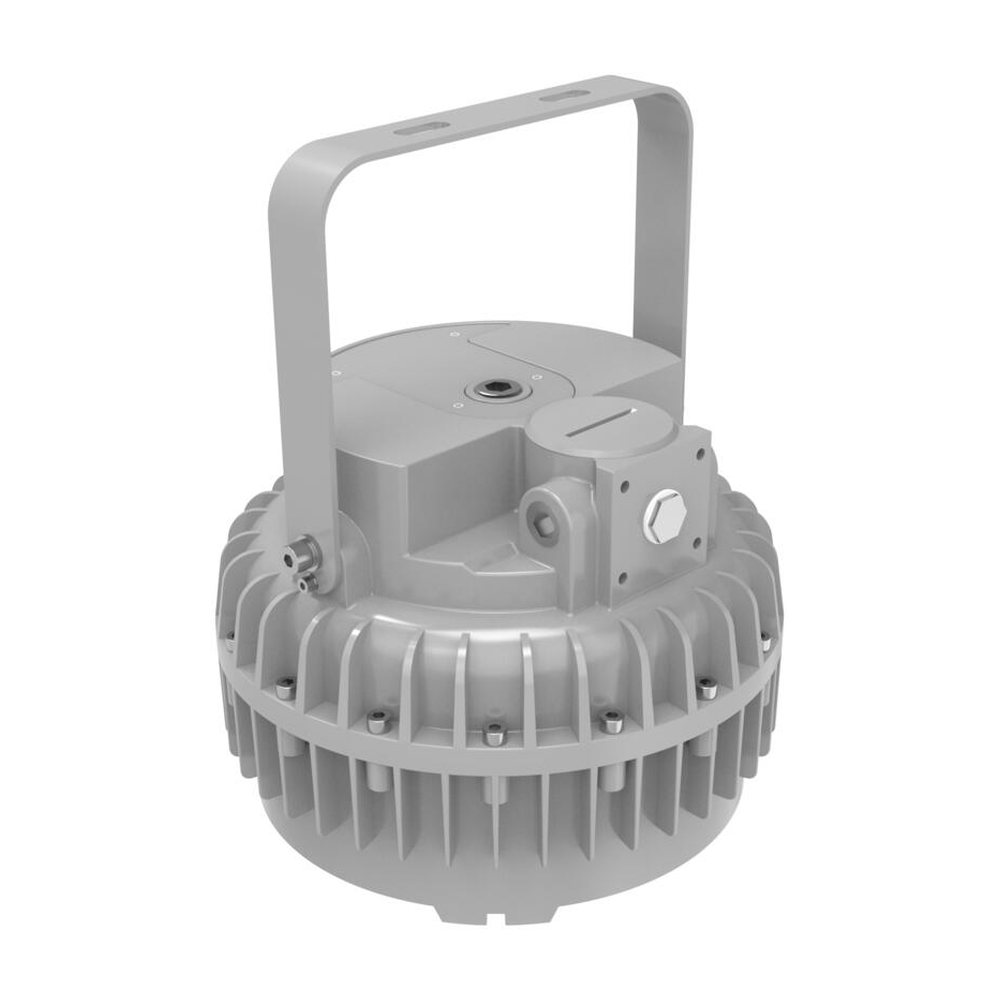

120W-150W-200W 3CCT EXPLOSION-PROOF LED UFO HIGH BAY 120-347V

💡 IP66 · IK10 · glass lens · 120/150/200W and 3 selectable color temperatures · 100-347V · delivered in 3 to 5 business days across canada

The 120-150-200W explosion-proof LED UFO light is the high-output explosion-proof high bay in our range: up to 26,000 lumens to light large, high-ceiling industrial halls. Its IP66 sealed aluminum housing, IK10 impact rated and closed by a glass lens, stands up to the harshest conditions.

Its wattage (120, 150 or 200W) and color temperature (4000K, 5000K or 6000K) are selectable on site, on a universal 100-347V driver. An explosion-proof light built for refineries, chemical plants and oil and gas facilities.

• Selectable wattage: 120/150/200W (up to 26 000 lumens)
• Selectable color temperature: 4000K, 5000K or 6000K
• IP66 rated and IK10 impact resistant
• Delivered in 3 to 5 business days across Canada

Built for hazardous environments

An explosion-proof light is built for locations where flammable gases, vapors or liquids, as well as combustible dust or fibers, may be present. Its rugged housing and sealed cable entries reduce the risks associated with these high-risk environments.

This fixture is designed for Class I, Division 1 (Groups B, C, D) and Division 2 (Groups A, B, C, D), Class II, Division 1 (Groups E, F, G) and Division 2 (Groups F, G), and Class III locations.

Before installing a fixture in a hazardous location, always confirm the class, group and temperature code required by your site: our team can help.

Wattage and color selectable on site

Instead of stocking several models, you select on site the wattage (120/150/200W) and the color temperature that suit the area:

• 4000K (natural white) – crisp light for workshops and production areas.
• 5000K (daylight) – the usual industrial choice, for good detail recognition.
• 6000K (cool white) – very bright light for inspection and maintenance areas.

With an efficacy of 130 lumens per watt, the 200W model delivers 26,000 lumens: enough to replace the most powerful HID fixtures, for a fraction of the energy.

Rugged, sealed and built to last

The powder-coated aluminum housing dissipates LED heat and resists corrosion, while the glass lens protects the light source. IP66 rated, the fixture withstands dust and powerful water jets; its IK10 impact rating protects it from mechanical shocks. It is also suited to wet environments, such as industrial and marine installations, and to applications with heavy vibration, such as heavy or moving equipment.

It operates from -40°C to 50°C and offers a 50,000-hour (L70) lifespan, limiting maintenance in controlled areas.

Installation and wiring

M20 cable-gland entries and two 3/4-in NPT conduit entries ensure compatibility with metric wiring systems and common North American conduit. The universal 100-347V driver covers commercial and industrial networks, including 347V.

Dimensions: 336 mm (13.2 in) in diameter · weight: 18 kg. Plan a mounting structure rated for this weight.

Applications

The 200W model lights large industrial volumes: production halls, chemical storage warehouses, hangars and high-ceiling refinery buildings. For smaller areas, see the 60-80-100W version. Also see our LED high bays for buildings without explosion-proof requirements.

0-10V dimming and energy savings

The 0-10V dimmable driver integrates with the plant's lighting controls. Combined with wattage selection, dimming lets you match light levels to actual needs and cut energy use.
