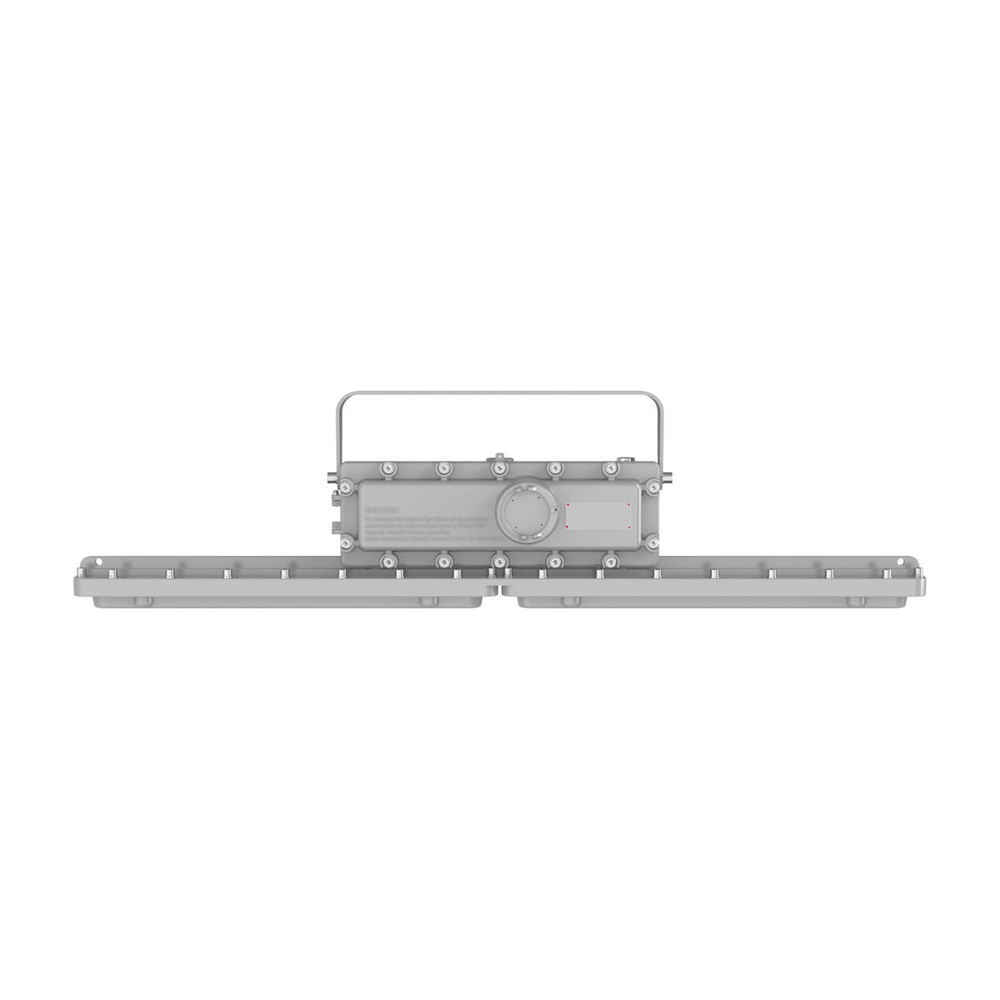

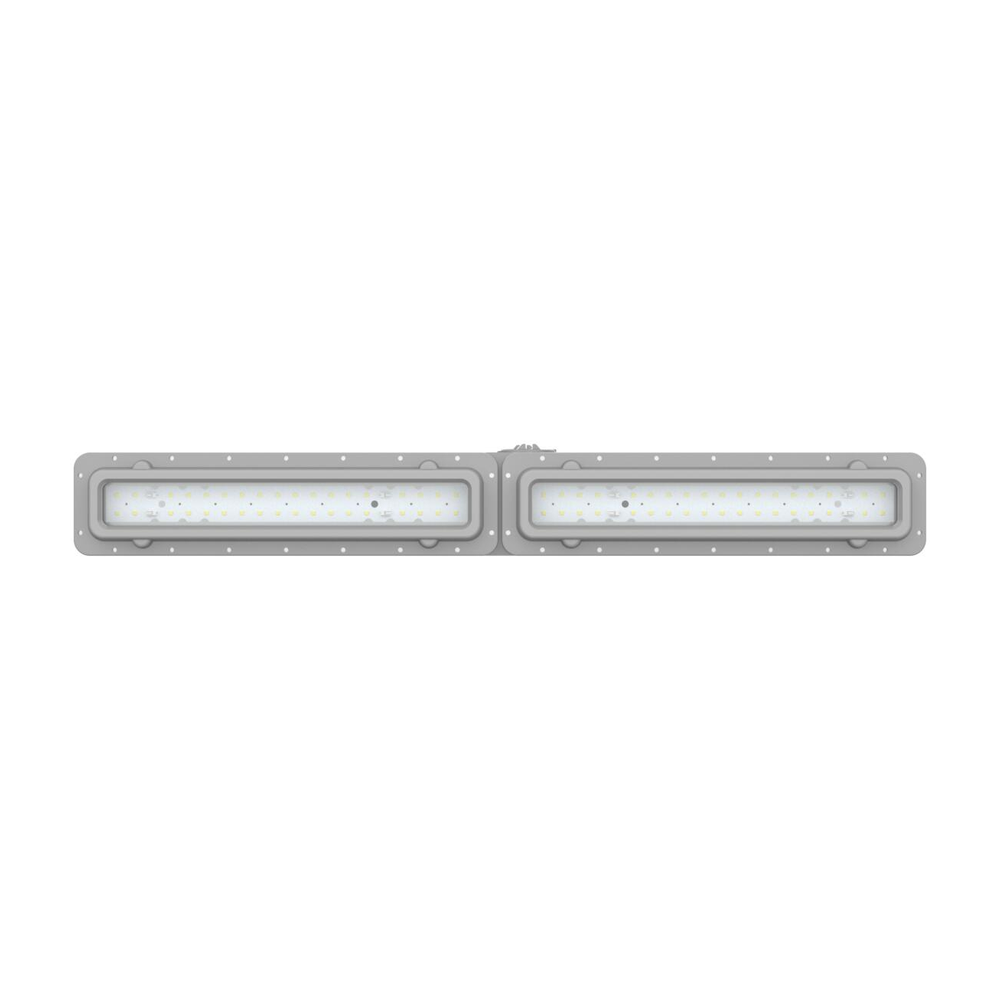

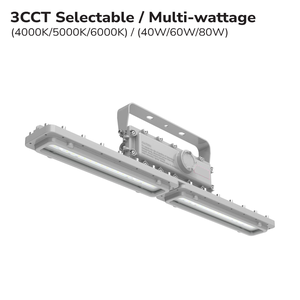

4' 40W-60W-80W 3CCT EXPLOSION-PROOF LINEAR LED LIGHT 120-347V

💡 IP66 · IK10 · glass lens · 40/60/80W and 3 selectable color temperatures · 100-347V · delivered in 3 to 5 business days across canada

The 4 ft 40-60-80W explosion-proof linear LED light is designed for long aisles and catwalks on industrial sites. It delivers up to 10,400 lumens from an IP66 sealed aluminum housing, IK10 impact rated, with a glass lens.

Its wattage (40, 60 or 80W) and color temperature (4000K, 5000K or 6000K) are selectable on site, on a universal 100-347V driver. A linear explosion-proof light that is a strong upgrade from old explosion-proof fluorescent fixtures.

• Selectable wattage: 40/60/80W (up to 10 400 lumens)
• Selectable color temperature: 4000K, 5000K or 6000K
• IP66 rated and IK10 impact resistant
• Delivered in 3 to 5 business days across Canada

Built for hazardous environments

An explosion-proof light is built for locations where flammable gases, vapors or liquids, as well as combustible dust or fibers, may be present. Its rugged housing and sealed cable entries reduce the risks associated with these high-risk environments.

This fixture is designed for Class I, Division 1 (Groups B, C, D) and Division 2 (Groups A, B, C, D), Class II, Division 1 (Groups E, F, G) and Division 2 (Groups F, G), and Class III locations. Linear versions also cover Zone 1 (IIB) and Zone 21 (IIIC).

Before installing a fixture in a hazardous location, always confirm the class, group and temperature code required by your site: our team can help.

Wattage and color selectable on site

Instead of stocking several models, you select on site the wattage (40/60/80W) and the color temperature that suit the area:

• 4000K (natural white) – crisp light for workshops and production areas.
• 5000K (daylight) – the usual industrial choice, for good detail recognition.
• 6000K (cool white) – very bright light for inspection and maintenance areas.

With an efficacy of 130 lumens per watt, the 4 ft model delivers 10,400 lumens at 80W.

Rugged, sealed and built to last

The powder-coated aluminum housing dissipates LED heat and resists corrosion, while the glass lens protects the light source. IP66 rated, the fixture withstands dust and powerful water jets; its IK10 impact rating protects it from mechanical shocks. It is also suited to wet environments, such as industrial and marine installations, and to applications with heavy vibration, such as heavy or moving equipment.

It operates from -40°C to 50°C and offers a 50,000-hour (L70) lifespan, limiting maintenance in controlled areas.

Installation and wiring

M20 cable-gland entries and two 3/4-in NPT conduit entries ensure compatibility with metric wiring systems and common North American conduit. The universal 100-347V driver covers commercial and industrial networks, including 347V.

Dimensions: 1,194 mm (47 in) long · weight: 21 kg. Plan a mounting structure rated for this weight.

Applications

The 4 ft linear version lights long aisles, catwalks, loading docks, paint areas and service corridors on industrial sites. For shorter spaces, see the 2 ft version; for large volumes, our explosion-proof UFO lights. Without explosion-proof requirements, see our LED high bays.

0-10V dimming and energy savings

The 0-10V dimmable driver integrates with the plant's lighting controls. Combined with wattage selection, dimming lets you match light levels to actual needs and cut energy use.
