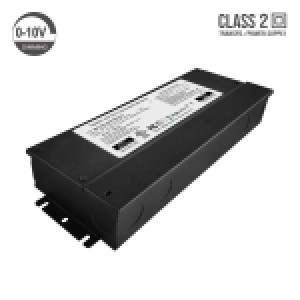

LED POWER SUPPLY - 5IN1 - 288W

The 5-in-1 dimmable LED power supply 288W by LEDCO is the most powerful model in our waterproof multi-protocol driver range. Offering five dimming modes, multiple outputs and an IP67 enclosure, it is designed for large commercial, institutional and architectural projects requiring high capacity with precise dimming control in indoor or outdoor environments.

5 DIMMING MODES AND MULTIPLE OUTPUTS

This 5-in-1 dimmable multi-output 288W LED driver supports five dimming protocols, making it compatible with virtually any lighting control system available:

• TRIAC: Compatible with standard in-wall dimmers (leading edge and trailing edge), the most common mode for residential use.
• 0-10V: The most common standard in commercial and institutional lighting.
• 1-10V: Compatible with European systems and industrial controllers.
• 10V PWM: For digital pulse-width modulation controllers.
• Resistance: Potentiometer dimming for simple, cost-effective control.

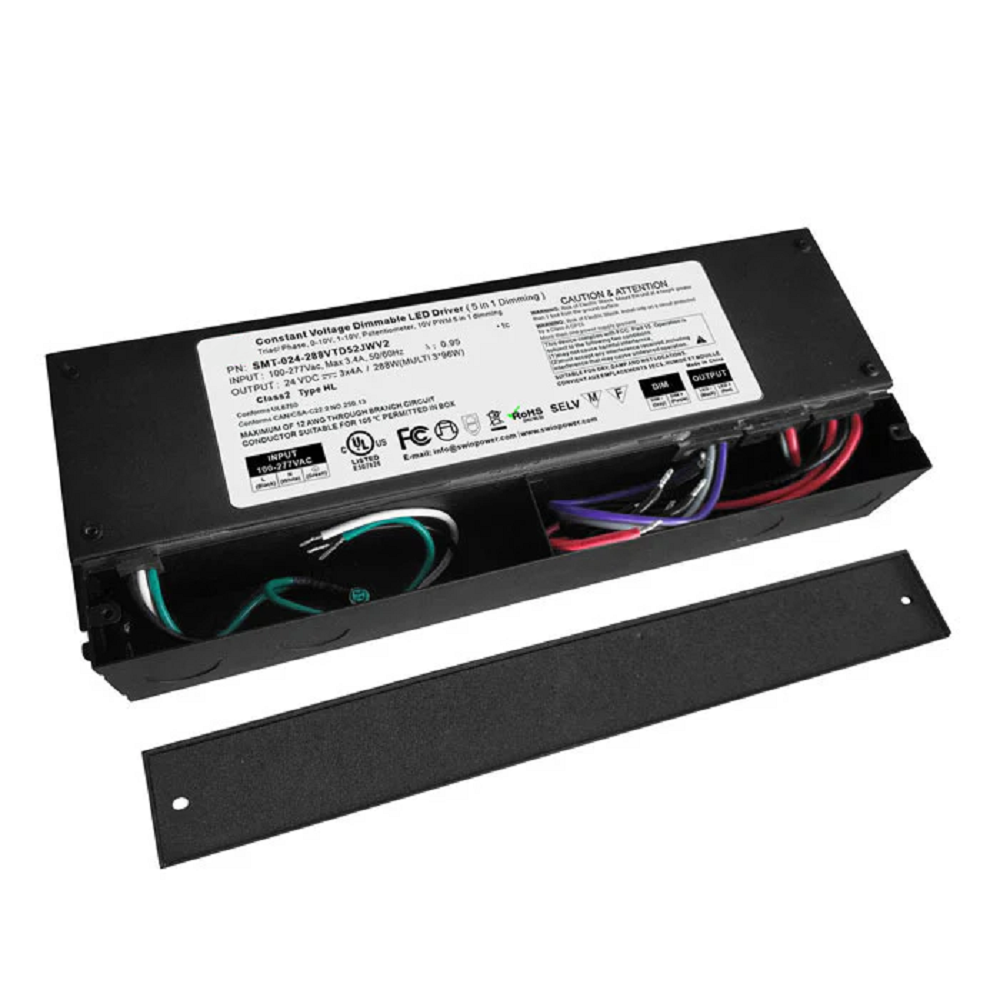

Its multi-output configuration allows multiple LED strip runs or fixtures to be connected directly to the driver without an external splitter. Combined with its 288W capacity and TRIAC plus 0-10V compatibility in a single enclosure, this architecture significantly simplifies large-scale installations by reducing the number of drivers needed and the associated wiring.

TECHNICAL SPECIFICATIONS

This waterproof 288W LED power supply operates on 24V DC with an IP67 protection rating, ensuring full resistance to dust and temporary water immersion. Its aluminum housing provides efficient heat dissipation even in the most demanding environments, including outdoor locations or unventilated utility rooms.

To ensure optimal lifespan, it is recommended not to exceed 80% of total capacity, meaning a maximum load of 230.4W. This translates to approximately 24 meters of 9.6W/m LED strip or 12 meters of 19.2W/m strip, distributed across multiple outputs as needed.

RECOMMENDED APPLICATIONS

This power supply is compatible with all of our LED strips, LED puck lights and fixtures operating on 24V DC. Thanks to its IP67 rating, multiple outputs and 288W capacity, it is the go-to choice for:

• Commercial ceiling perimeters and cornices requiring over 20 meters of dimmable LED strip across multiple simultaneous outputs via a centralized 0-10V system.
• Large-scale facade and architectural lighting combining LED strip
