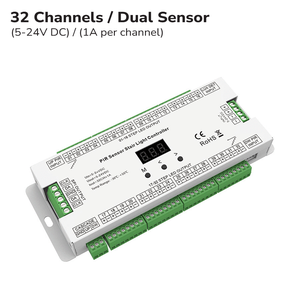

32-CHANNEL LED STAIR CONTROLLER WITH MOTION SENSORS

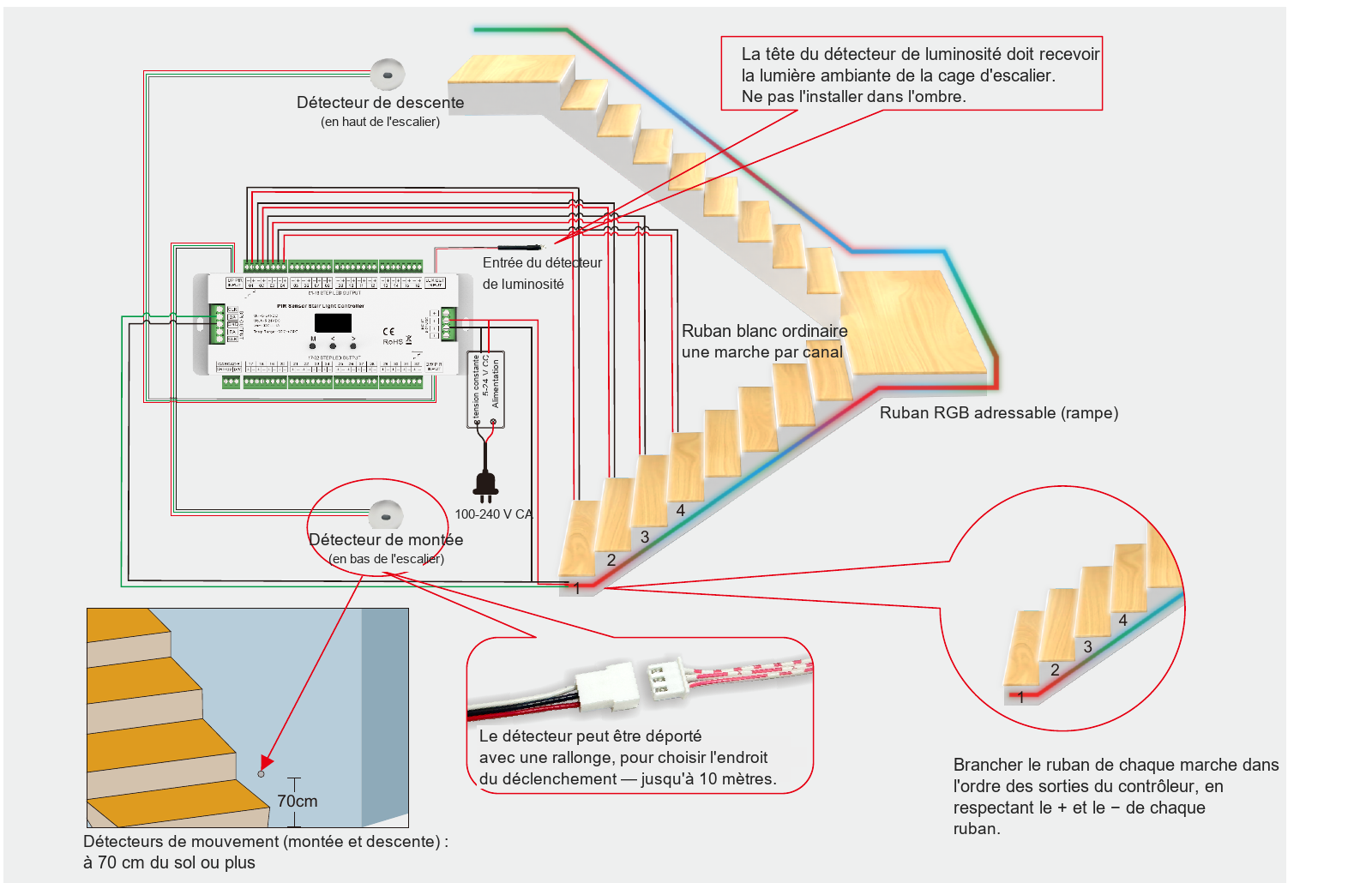

Your steps light up one after another as you walk, then switch off behind you. The controller drives 32 constant-voltage channels (5-24V DC, 1A per channel): one plain white strip per step, up to 32 steps. Two SPI outputs are also provided for addressable digital strips.

What's included

• The controller, with OLED display and 3 buttons
• 2 motion sensors (top and bottom of the stairs) with 5 m extension leads
• 1 daylight sensor — the stairs stay off in broad daylight

Settings

Four working modes, speed and brightness adjustable over 8 steps, fast self-test, over-heat and short-circuit protection, and any damaged channel can be disabled. Two controllers can be cascaded for more than 32 steps.

Specifications

• Input and output: 5-24V DC · 32 channels × 1A
• Detection up to 3 m, 20 to 40° angle
• Operating temperature: -30 °C to +55 °C · IP20
• Housing 256 × 120 × 46 mm · 5-year warranty

Sold separately: the power supply and the LED strip. The power supply must be rated at least 1.25 times the total load of the connected strips.
