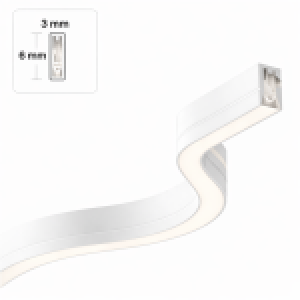

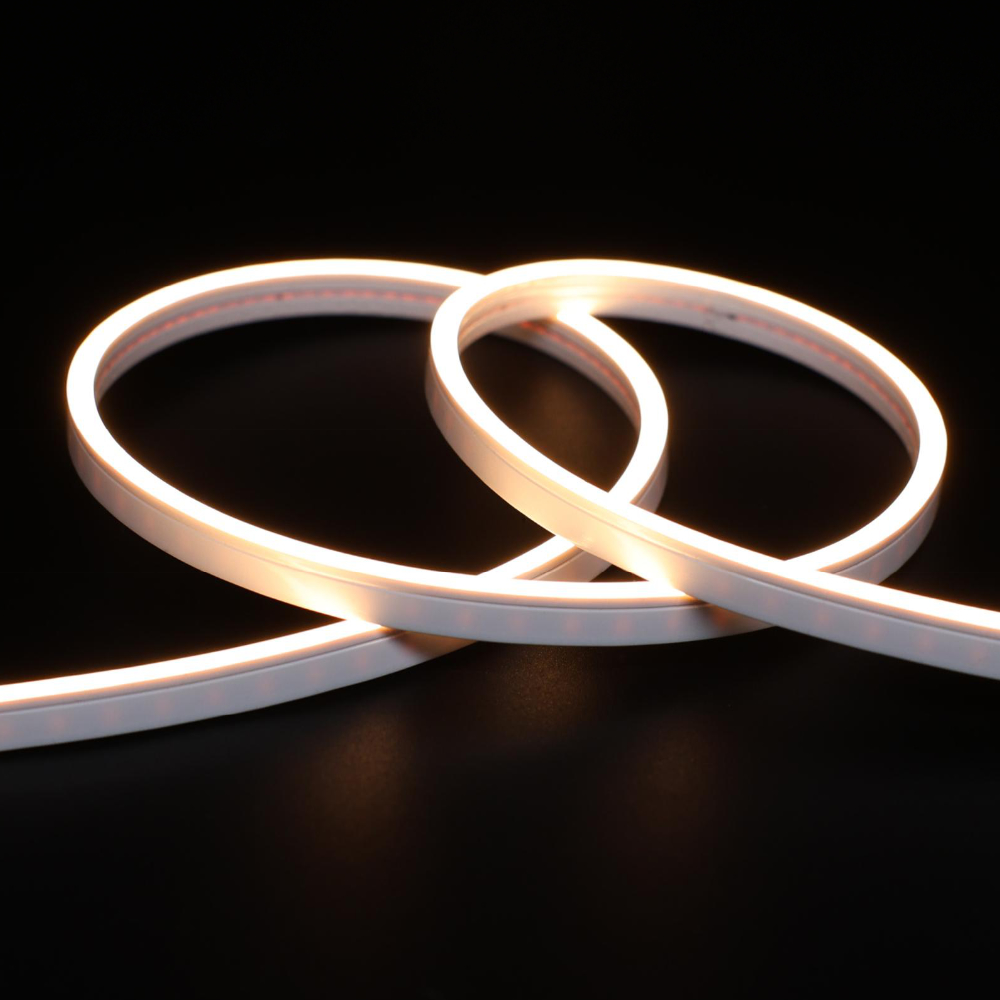

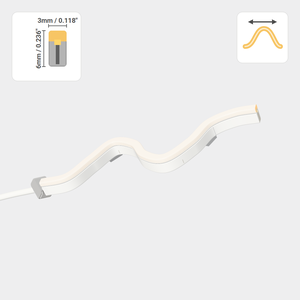

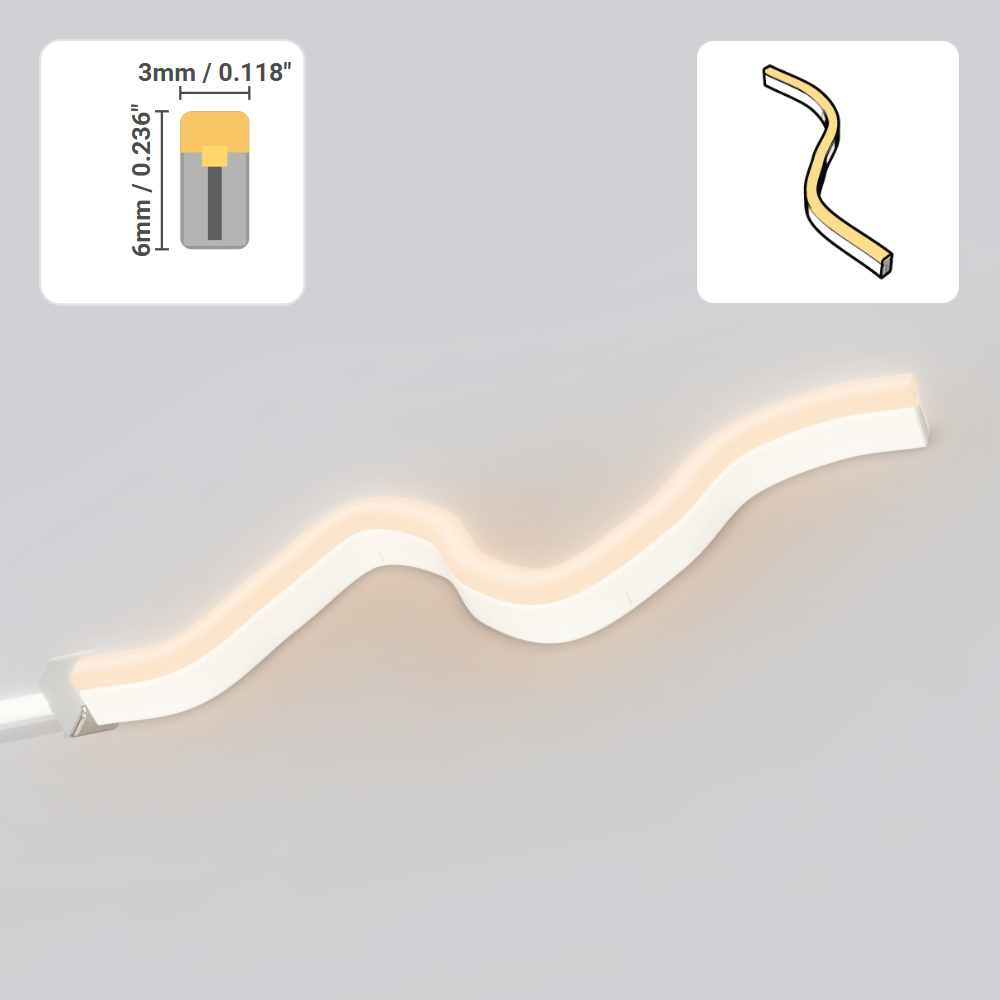

FLEX NEON LED 9.6W/M – 3X6MM

💡 Available in 5 m (16.4 ft) or 30 m (98.4 ft) reels

The FLEX NEON 9.6W/M – 3X6MM from LEDCO delivers LED lighting forward (ultra-flat profile), engineered for architectural applications demanding precision, uniformity, and premium results. Its flexible neon profile ensures continuous, hotspot-free light diffusion.

Operating at 24V DC with a power draw of 9.6W/m, this flex neon delivers consistent, high-output brightness from end to end. Available in 2700K, 3000K and 4000K to suit any residential or commercial project. Available in 5m or 30m reels.

Recommended Applications

• Integration into the tightest spaces
• Discreet LED signage and fine contour lighting
• Interior decoration and architectural accent
• Stair riser, backsplash and frame lighting

Performance and Installation

Its IP66 rating allows use in covered damp environments and sheltered outdoor applications. cULus certified, compliant with Canadian and US electrical standards. Rated lifespan up to 50,000 hours.

Power Supply Calculation

This flex neon draws approximately 2.93 watts per foot. Multiply total length by 2.93 then add a 20% safety margin.

Use a 24V driver sized to the total calculated wattage.

Dimming and Control

There are two ways to control the intensity of your flex neon.

The simplest option is a 120V LED wall dimmer — it installs directly in place of your existing switch, between 120V and a dimmable driver.

• W21 – Wireless wall controller (AAA batteries), up to 100 ft range, up to 4 zones.
• R21 – RF remote control, up to 100 ft range, up to 4 zones.
• Universal 4-zone 12A receiver – Installed between driver and flex neon (1 per independent zone).

Complete your installation with compatible 3x6 accessories:

• 3x6 end cap with hole
• 3x6 end cap without hole
• 3x6 mounting bracket
