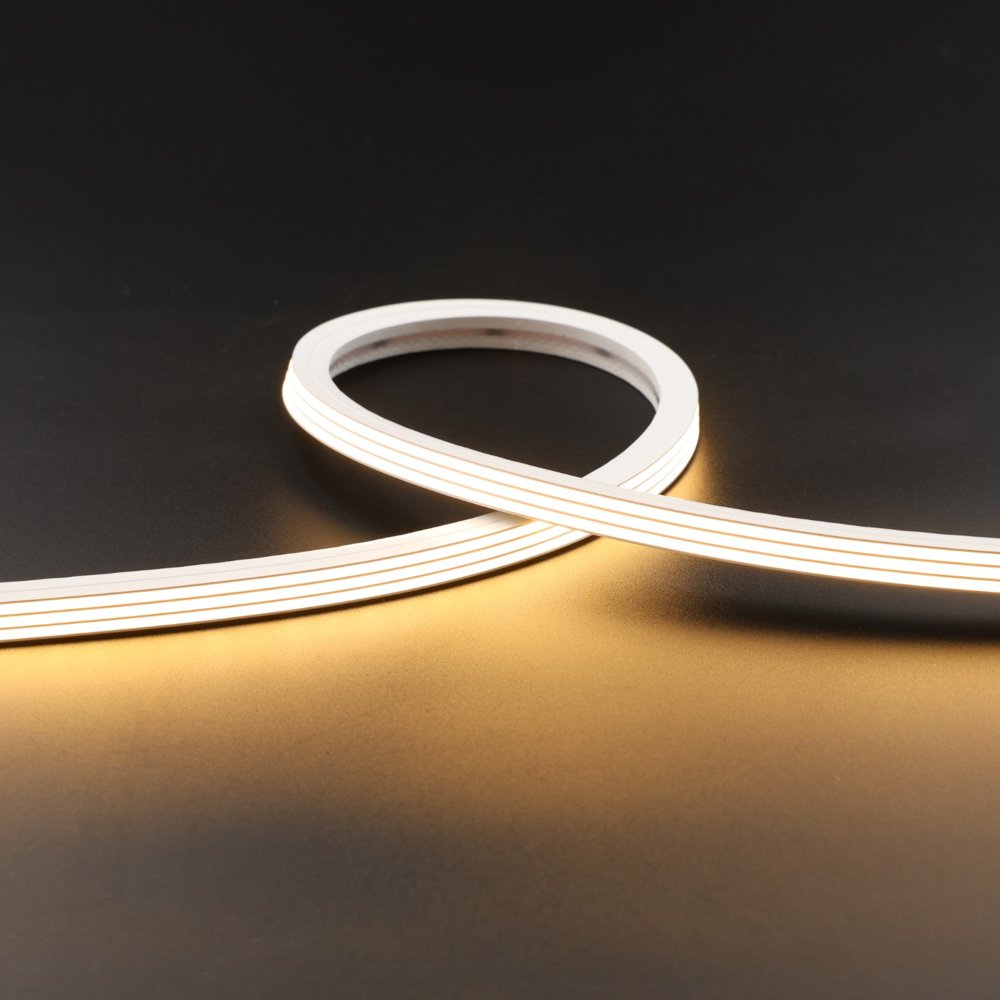

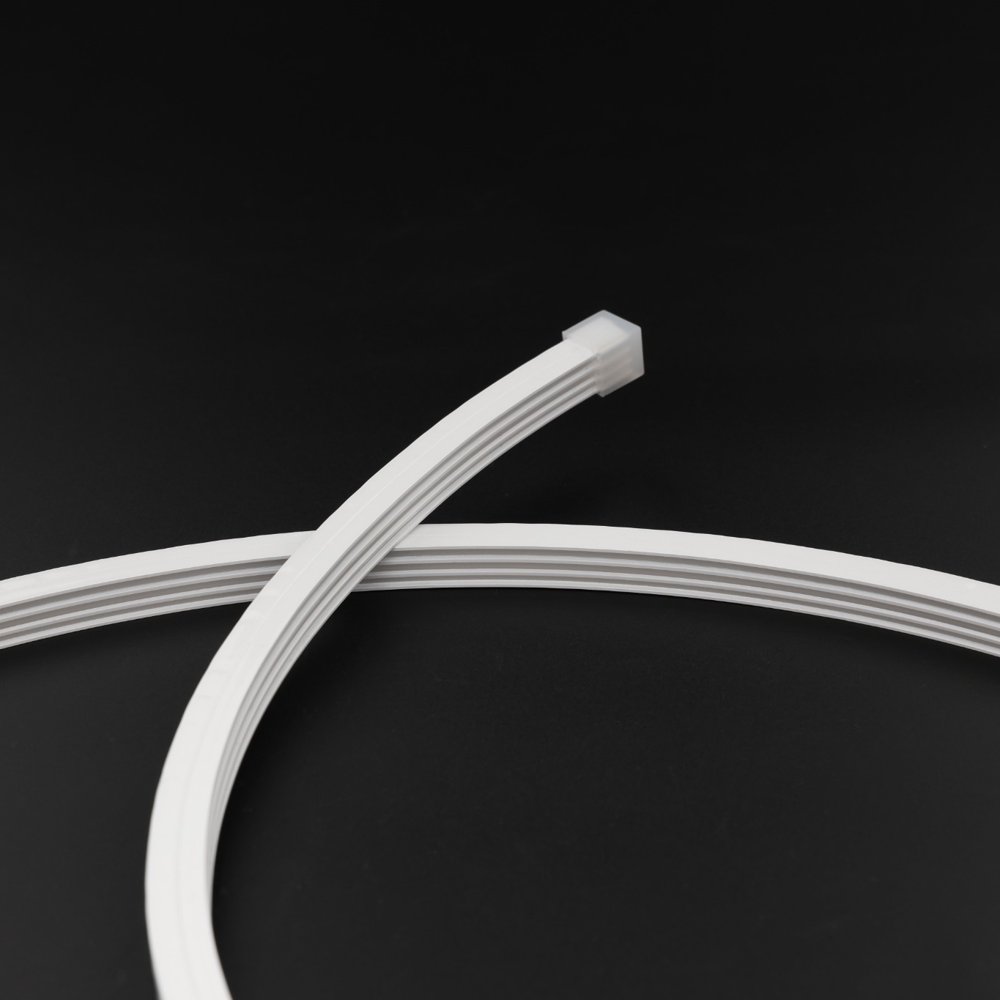

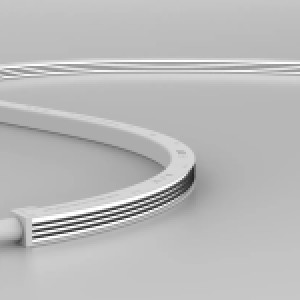

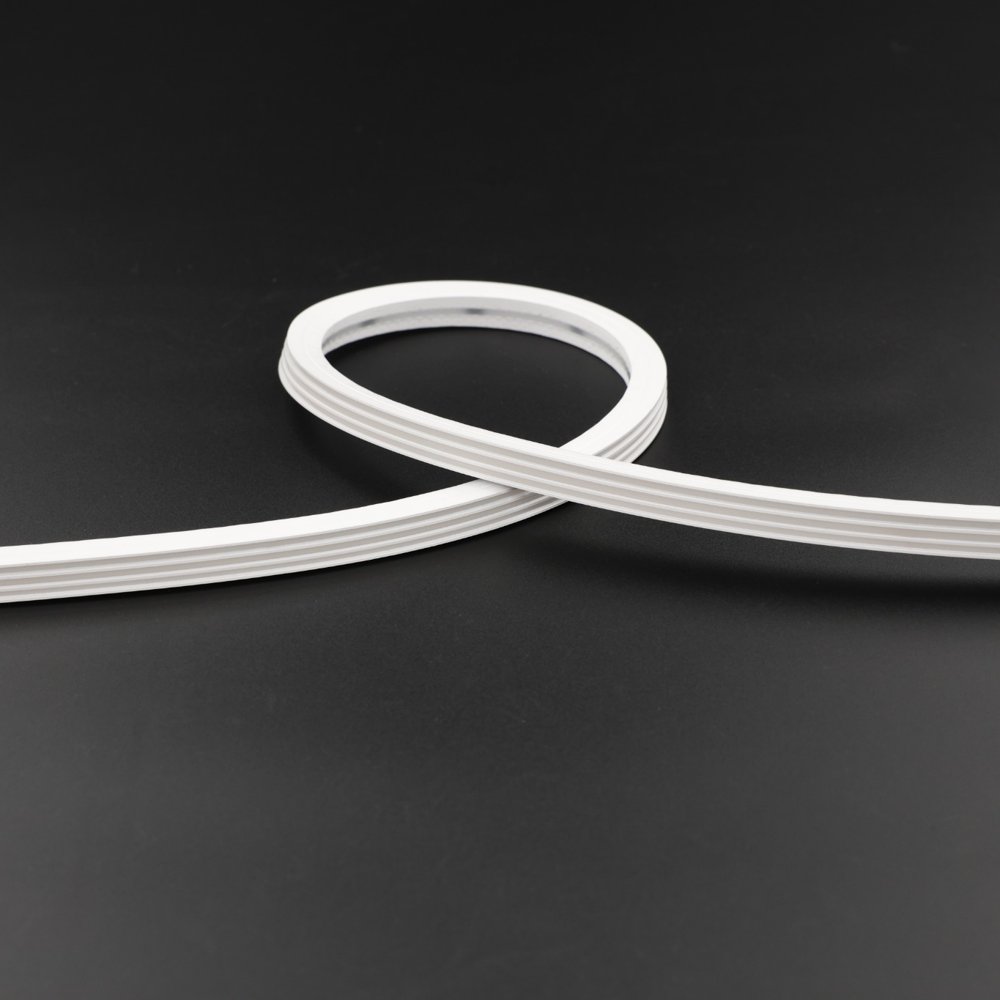

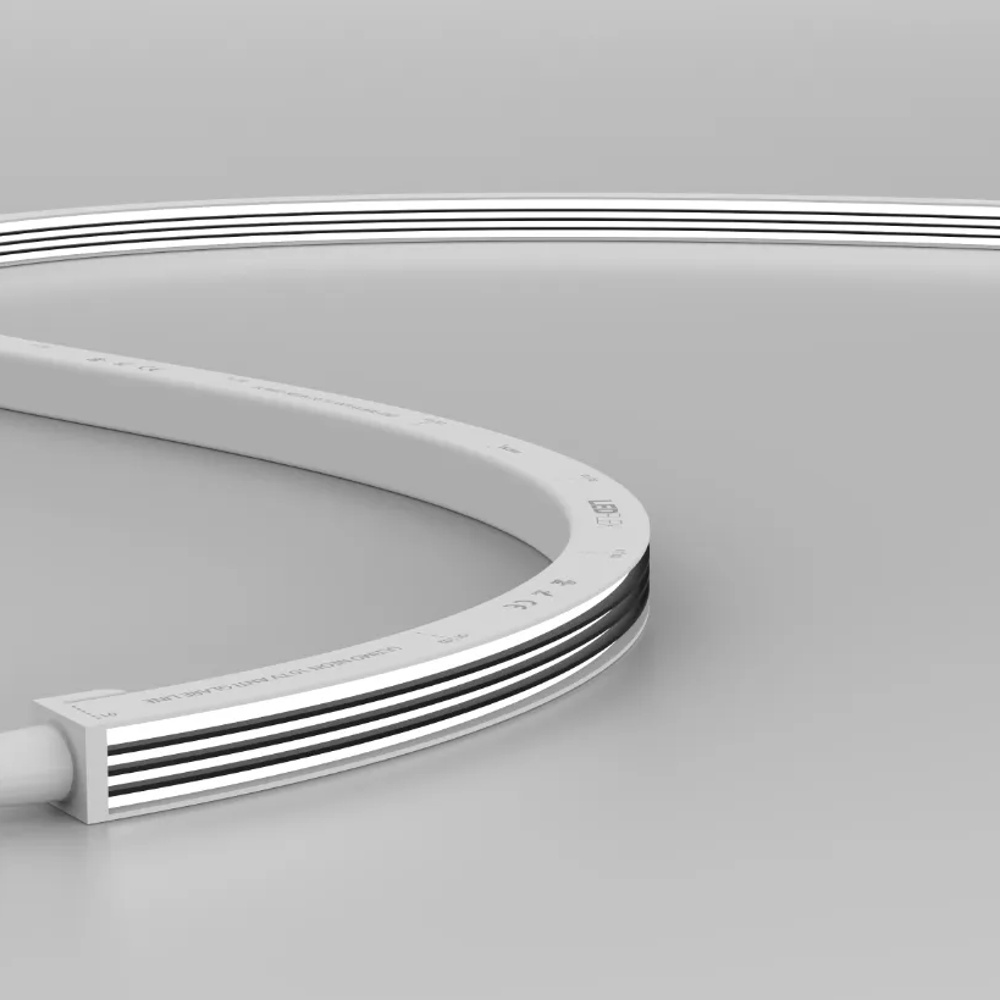

FLEX NEON LED ANTI-GLARE 9.6W/M – 10X10MM

💡 Reels available: 5 m (16.4 ft) or 20 m (65.6 ft)

The Anti-Glare Opal Flex Neon 9.6W/m is a premium indoor lighting solution engineered for projects where visual comfort is paramount. Its opaline silicone diffuser integrated into a 10×10 mm flex neon profile eliminates hotspots and unwanted glare while delivering smooth, even, shadow-free light — even against white surfaces and reflective finishes.

Running on 24V DC, it packs 120 SMD 2835 LEDs per meter with a CRI ≥ 90 for natural, true-to-life color rendering. Its IP66-rated flexible silicone profile makes it well-suited for demanding architectural installations. Available in 3000K warm white, it provides ideal lighting for high-end residences, hotels, and upscale retail environments.

Opal Anti-Glare Technology

The main challenge with high-density flex neons is the presence of visible hotspots and reflections on light-coloured surfaces. The opal anti-glare profile of this 10×10 mm flex neon addresses this directly by diffusing light evenly across the entire length:

• Zero visible hotspots — The opaline diffuser homogenizes the light output, eliminating point-source concentrations.
• Reduced UGR — The anti-glare profile minimizes perceived glare, essential for workspaces, kitchens and retail environments.
• Uniform output on white surfaces — Ideal for cove ceilings, drywall niches and reflective surfaces where any inconsistency is immediately noticeable.
• Durable, flexible silicone — The IP66 housing protects the flex neon from dust and water splashes for long-lasting performance.

Recommended Applications

This anti-glare flex neon is the ideal solution for:

• Drywall coves and architectural niches where a flawless finish is required
• Kitchen islands and prep areas requiring glare-free task lighting
• High-end hotels, spas and residences demanding a polished architectural finish
• Retail displays and showrooms where uniform light output showcases products at their best
• Offices and meeting rooms subject to visual comfort standards

Performance and Installation

The anti-glare flex neon delivers a luminous flux of ~800 lm/m with a 120° beam angle and no visible dark zones. Its IP66 silicone profile provides protection against dust and water splashes for demanding interior applications.

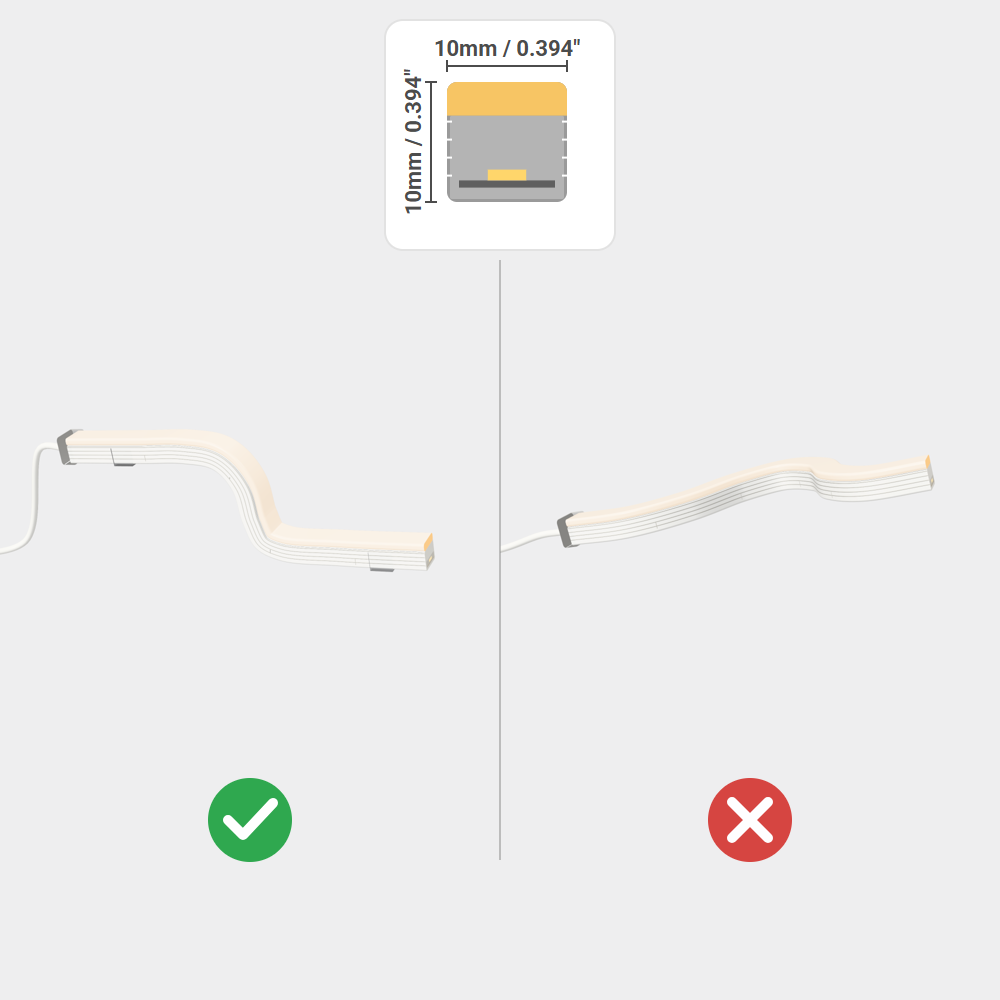

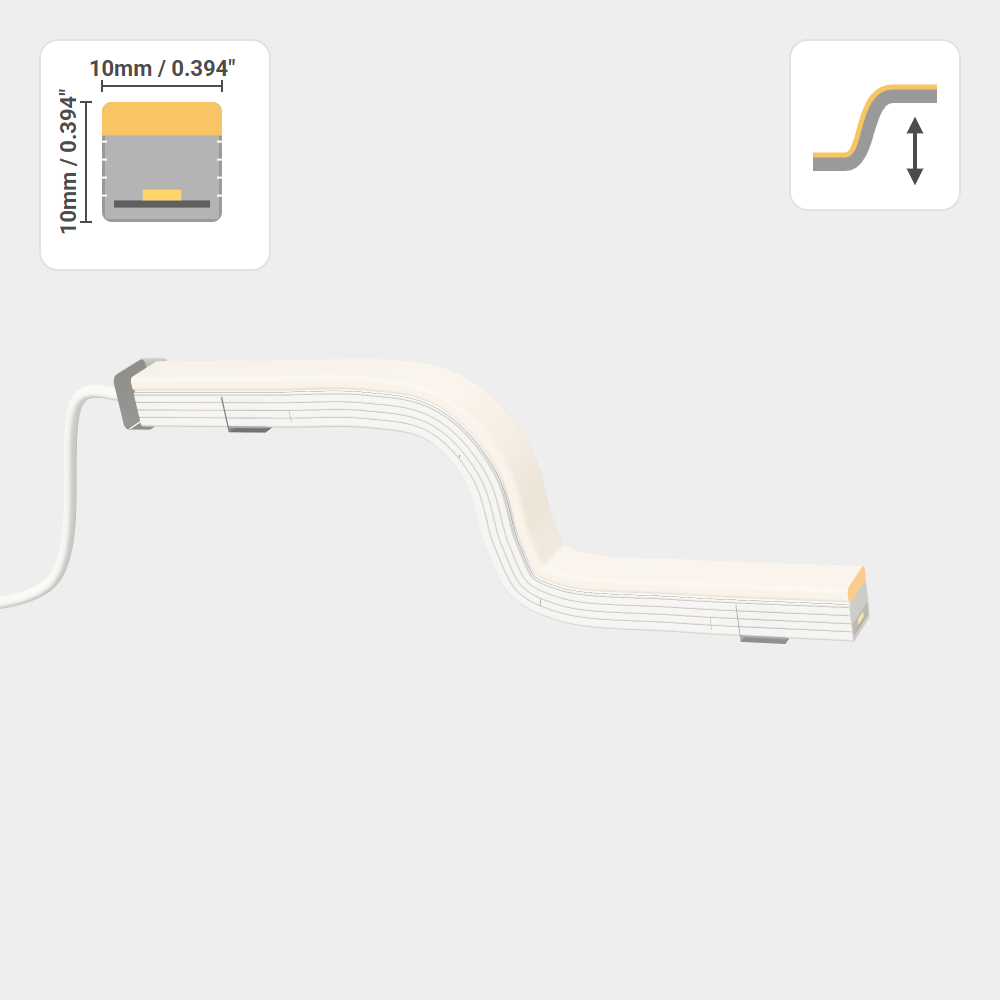

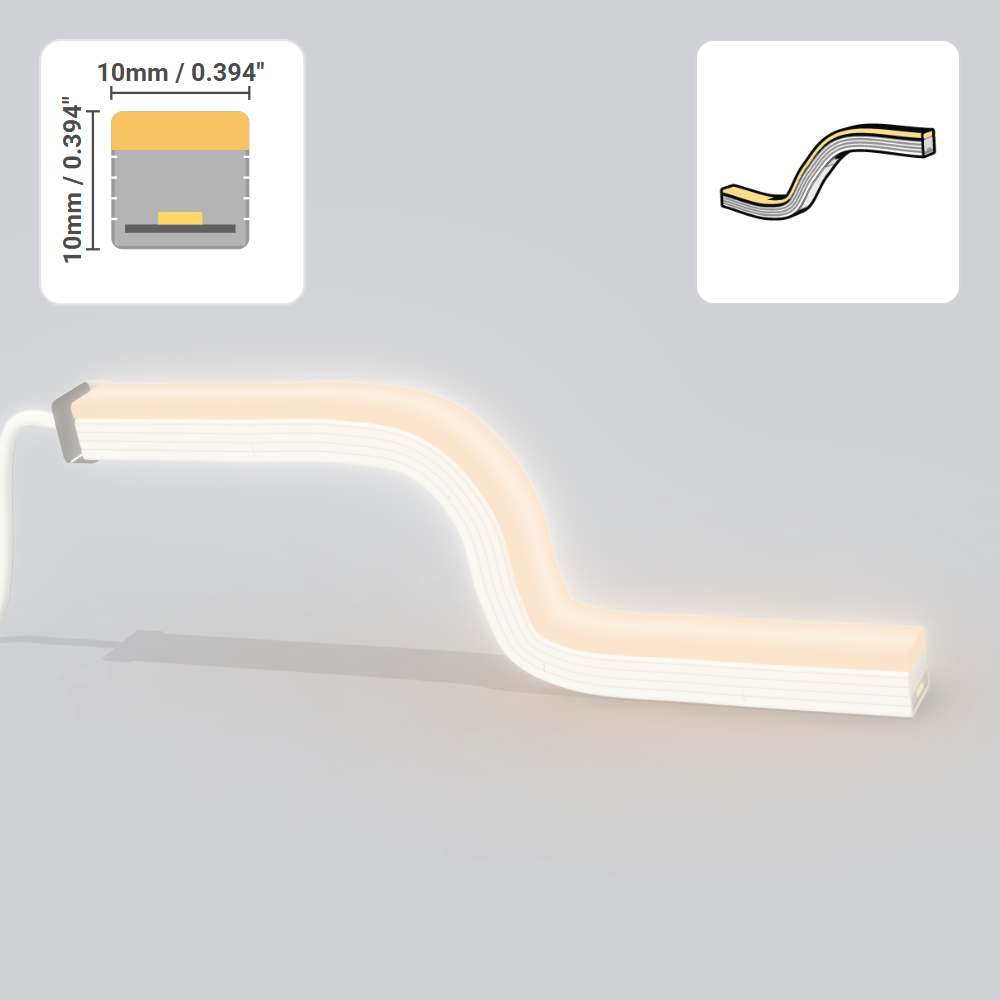

While the flex neon is designed to fit directly into drywall coves or millwork channels, using an aluminum profile further improves thermal dissipation and maximizes lifespan. It can be cut every 33.33 mm for precise length adjustment.

Power Supply Calculator

This flex neon consumes approximately 2.93 watts per foot. Simply multiply the total installed length by 2.93 to determine the required wattage.

Always add a 20% safety margin to ensure system stability and longevity.

• 1 reel (5 m / ~16 ft) = 48W → 60W minimum power supply recommended
• 2 reels (~32 ft) = 96W → 115W power supply recommended
• 4 reels (20 m / ~66 ft) = 192W → 230W power supply recommended

Use a 24V power supply matched to the total calculated wattage.

Dimming and Control

This 3000K white flex neon is compatible with standard PWM dimmers for straightforward brightness control. A standard 120V wall dimmer can be used provided it is compatible with 24V DC power supplies. For more comprehensive control, a wireless dimmer system is recommended.

• Single White Dimmer – Brightness control via touch key, range up to 100 feet.
• Universal 4-Zone 12A Receiver – Installed between the power supply and the flex neon (1 per independent zone).
• 20A LED Amplifier (480W at 24V) – Recommended for installations exceeding 225W per zone.

Length Options

Available in 5-meter or 20-meter reels, this anti-glare flex neon can also be supplied in custom lengths.

Complete your installation with dedicated accessories:

• Endcap with hole
• Endcap without hole
• Mounting bracket
