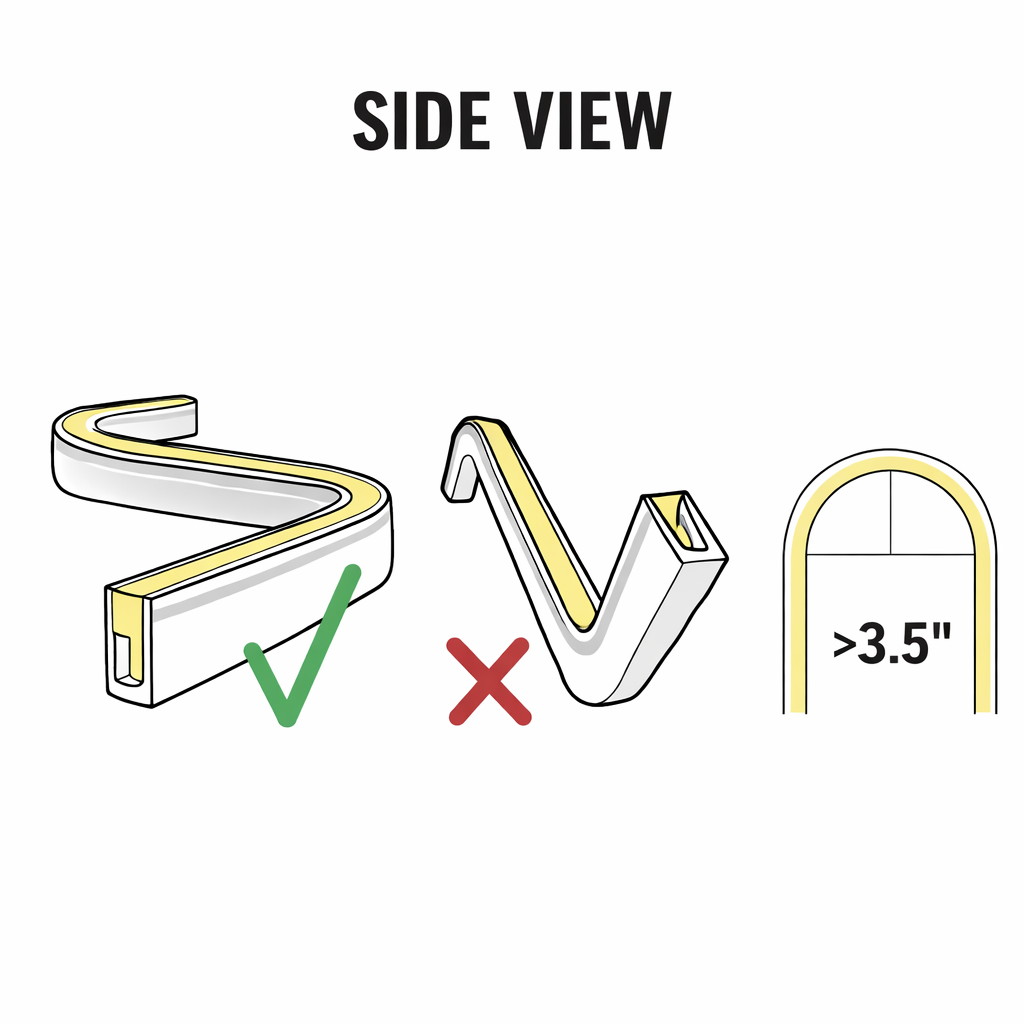

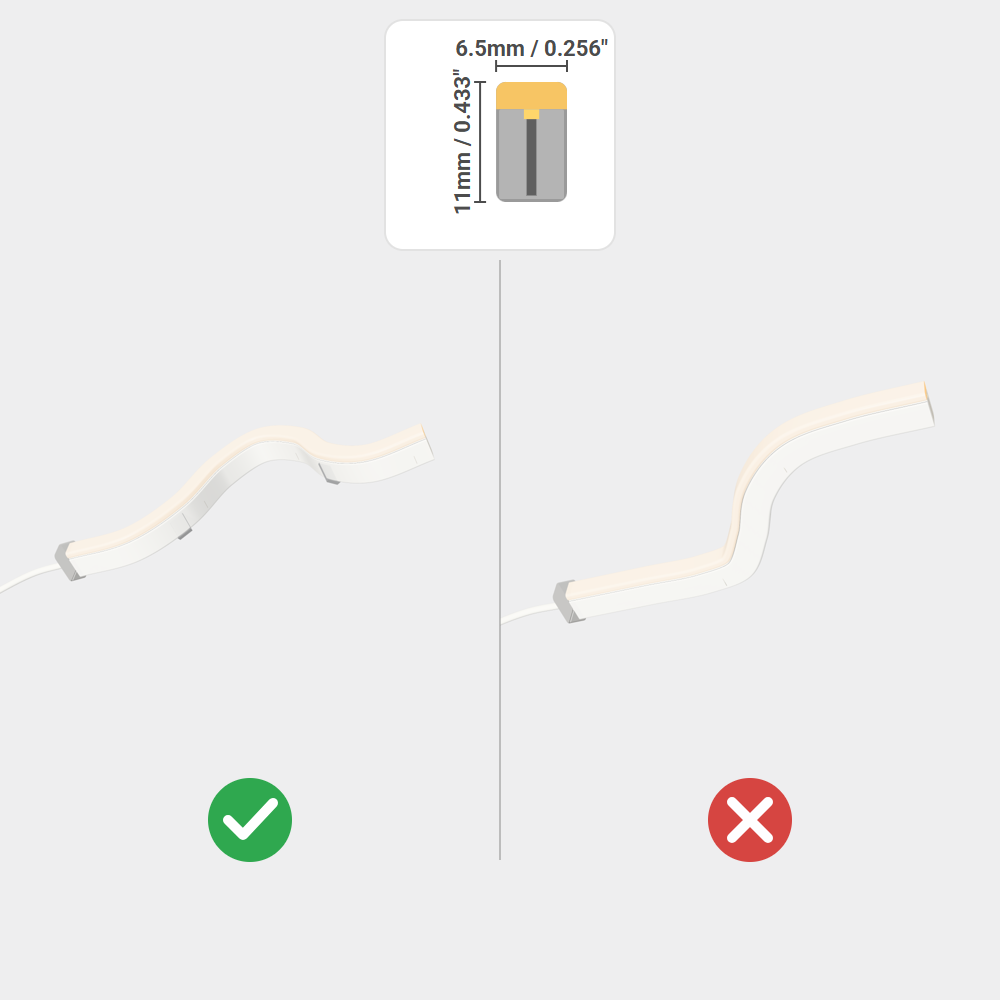

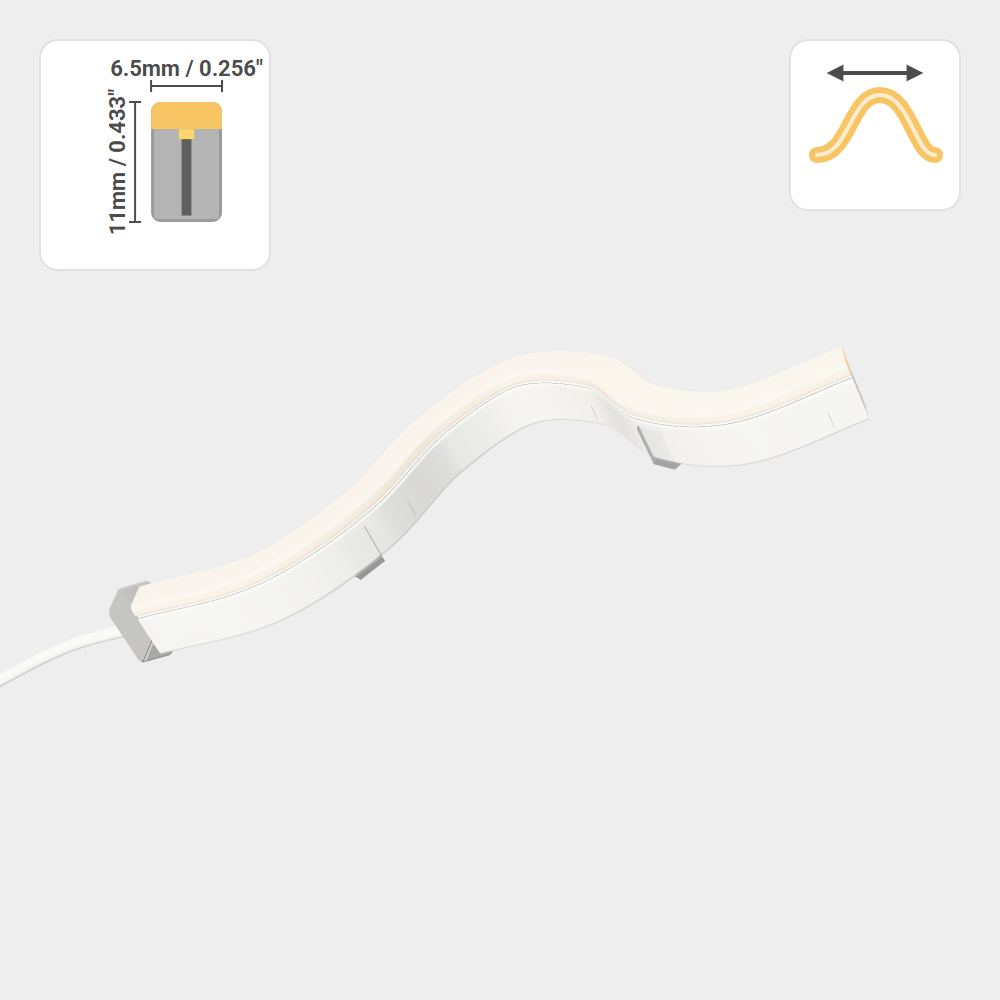

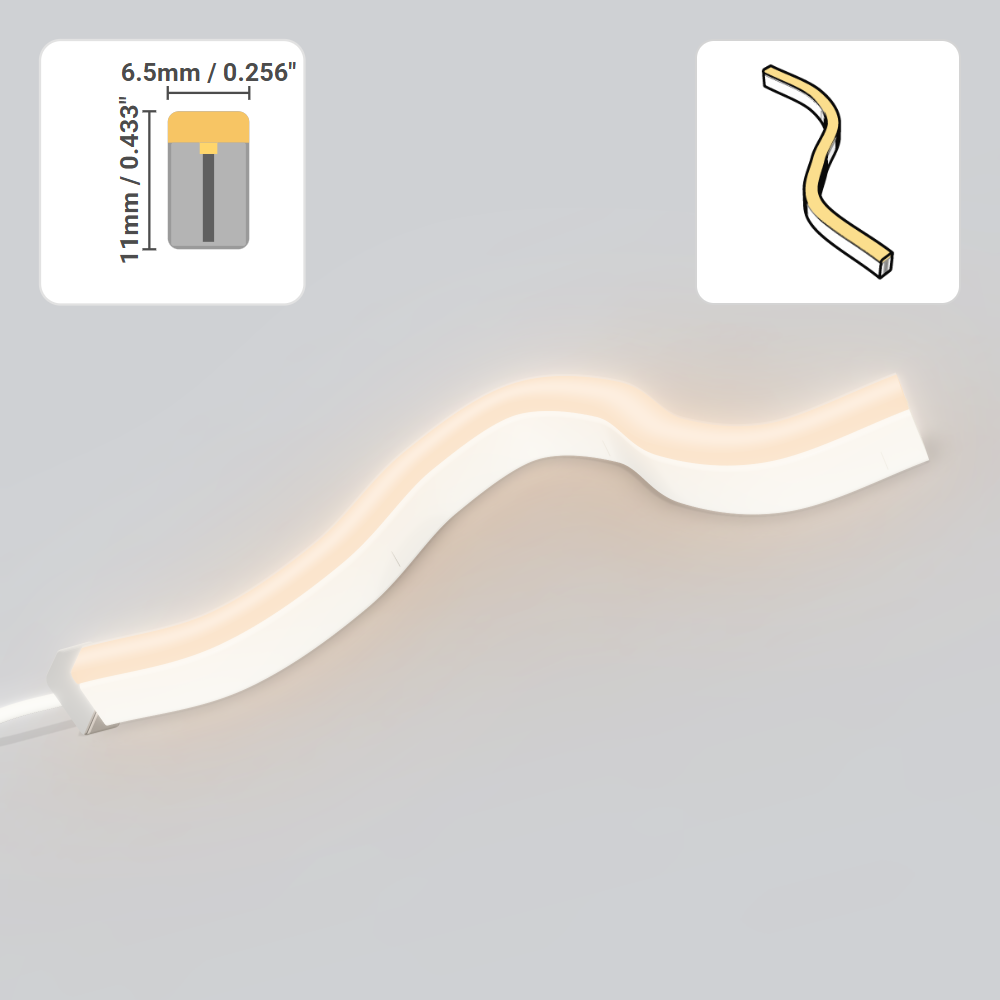

FLEX NEON LED 14.4W/M – SIDE VIEW 6.5X11MM

💡 Available in 5 m (16.4 ft) or 30 m (98.4 ft) reels

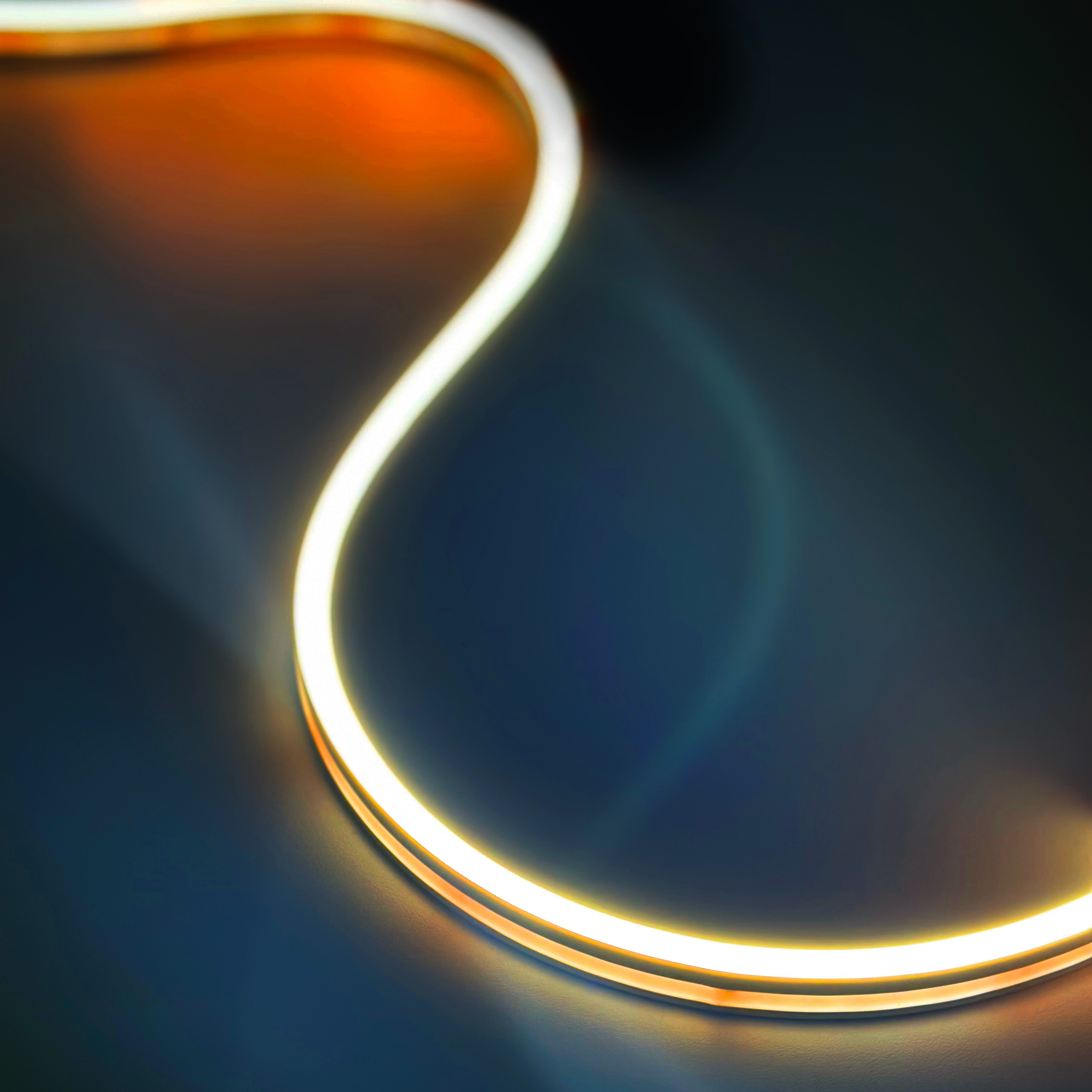

The FLEX NEON 14.4W/M – SIDE VIEW 6.5X11MM from LEDCO delivers LED lighting laterally (side view), engineered for architectural applications demanding precision, uniformity, and premium results. Its flexible neon profile ensures continuous, hotspot-free light diffusion.

Operating at 24V DC with a power draw of 14.4W/m, this flex neon delivers consistent, high-output brightness from end to end. Available in 2700K, 3000K, 3500K and 4000K to suit any residential or commercial project. Available in 5m or 30m reels.

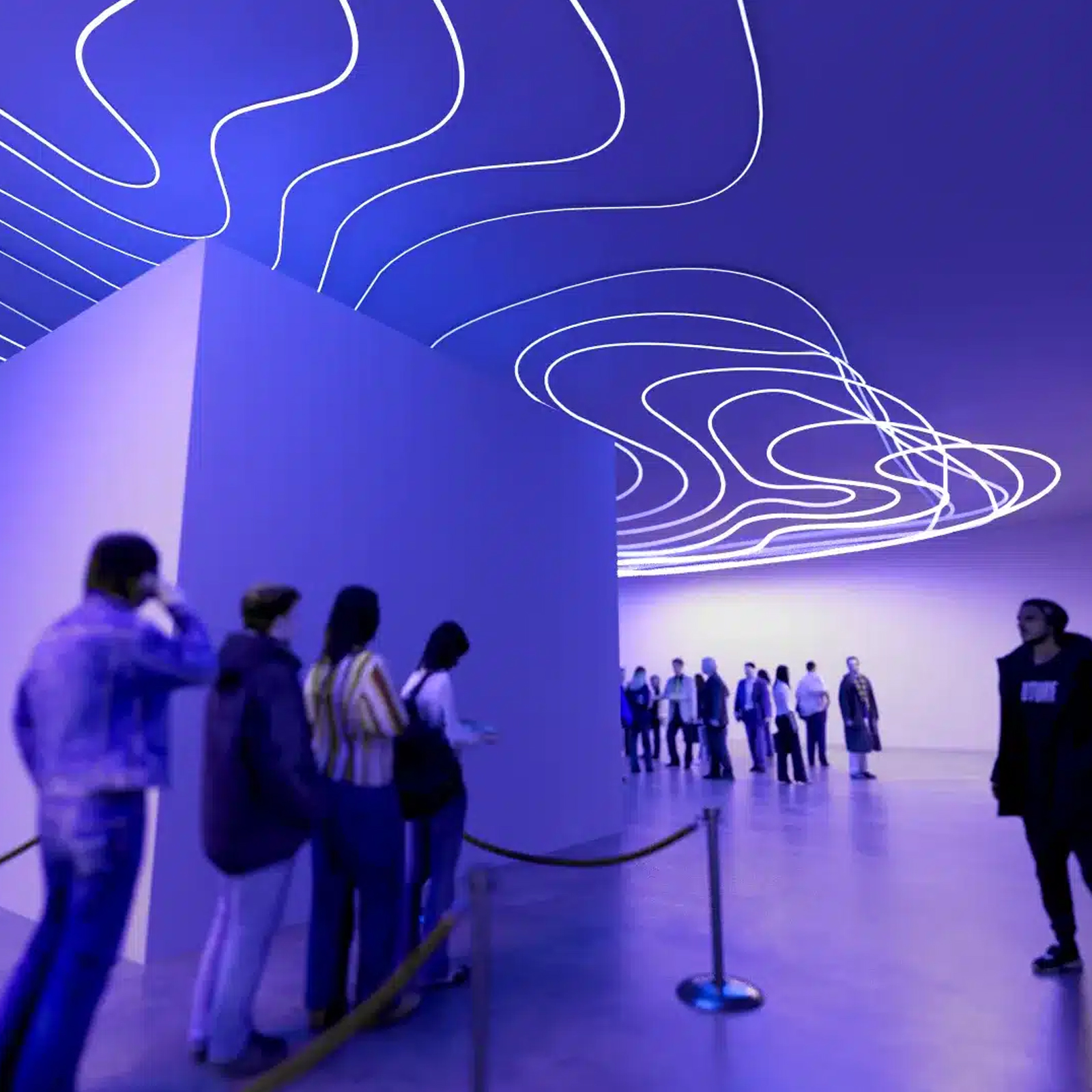

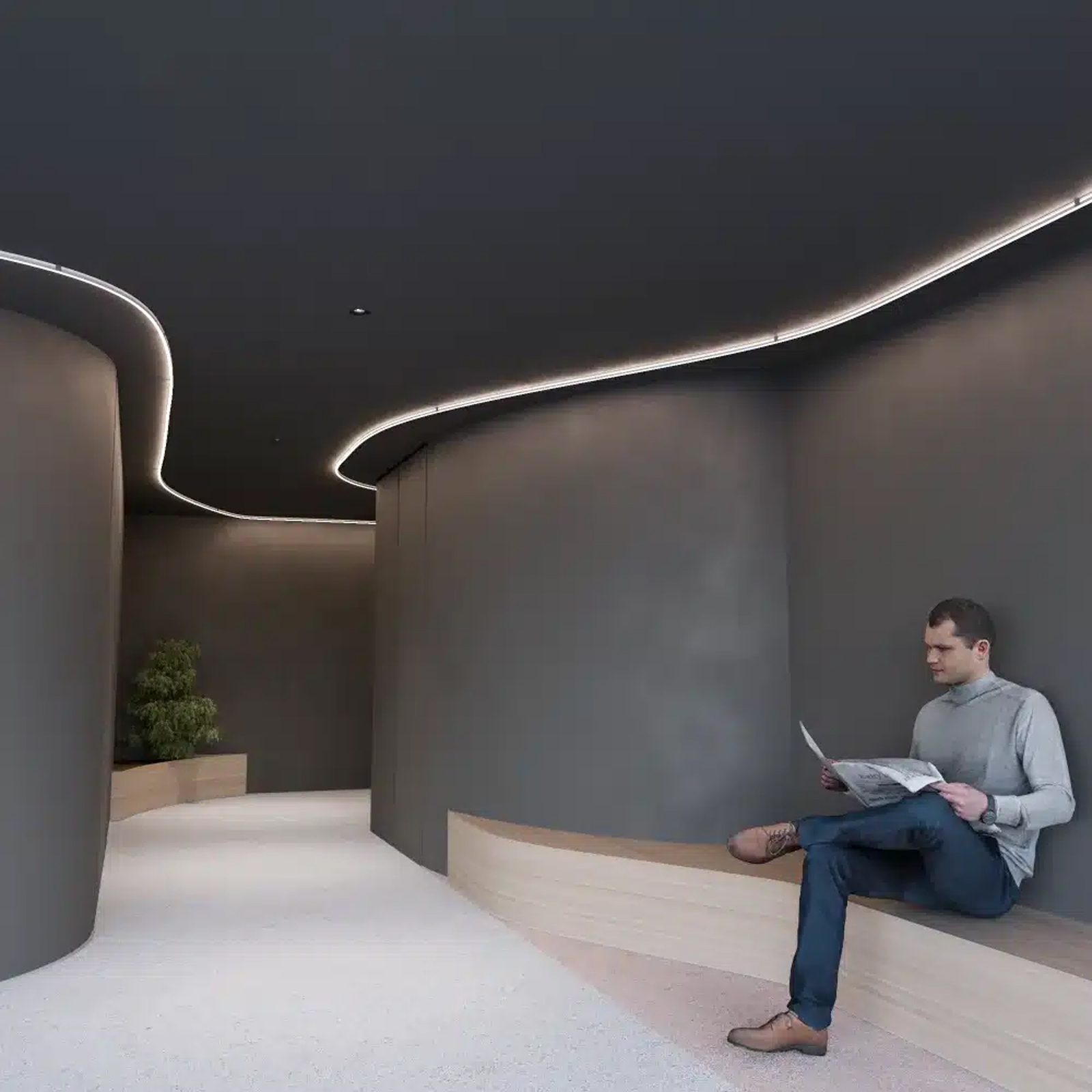

Recommended Applications

• Contour highlighting, shelving and furniture
• Creative signage and illuminated lettering
• Decorative wall strips and frame lighting
• Niches, display cases and showcase lighting

Performance and Installation

Its IP66 rating makes it suitable for covered damp environments, including sheltered outdoor applications. cULus certified, compliant with Canadian and US electrical standards. Rated lifespan up to 50,000 hours.

Power Supply Calculation

This flex neon draws approximately 4.39 watts per foot. Multiply total length by 4.39 then add a 20% safety margin.

Use a 24V driver sized to the total calculated wattage.

Dimming and Control

There are two ways to control the intensity of your flex neon.

The simplest option is a 120V LED wall dimmer — it installs directly in place of your existing switch, between 120V and a dimmable driver.

• W21 – Wireless wall controller (AAA batteries), up to 100 ft range, up to 4 zones.
• R21 – RF remote control, up to 100 ft range, up to 4 zones.
• Universal 4-zone 12A receiver – Installed between driver and flex neon (1 per independent zone).

Complete your installation with dedicated Side View accessories:

• SV end cap with hole
• SV end cap without hole
• SV mounting bracket
