(BENDABLE) ZIG ZAG LED STRIP 9.6W/M

💡 Reels available: 5 m (16.4 ft)

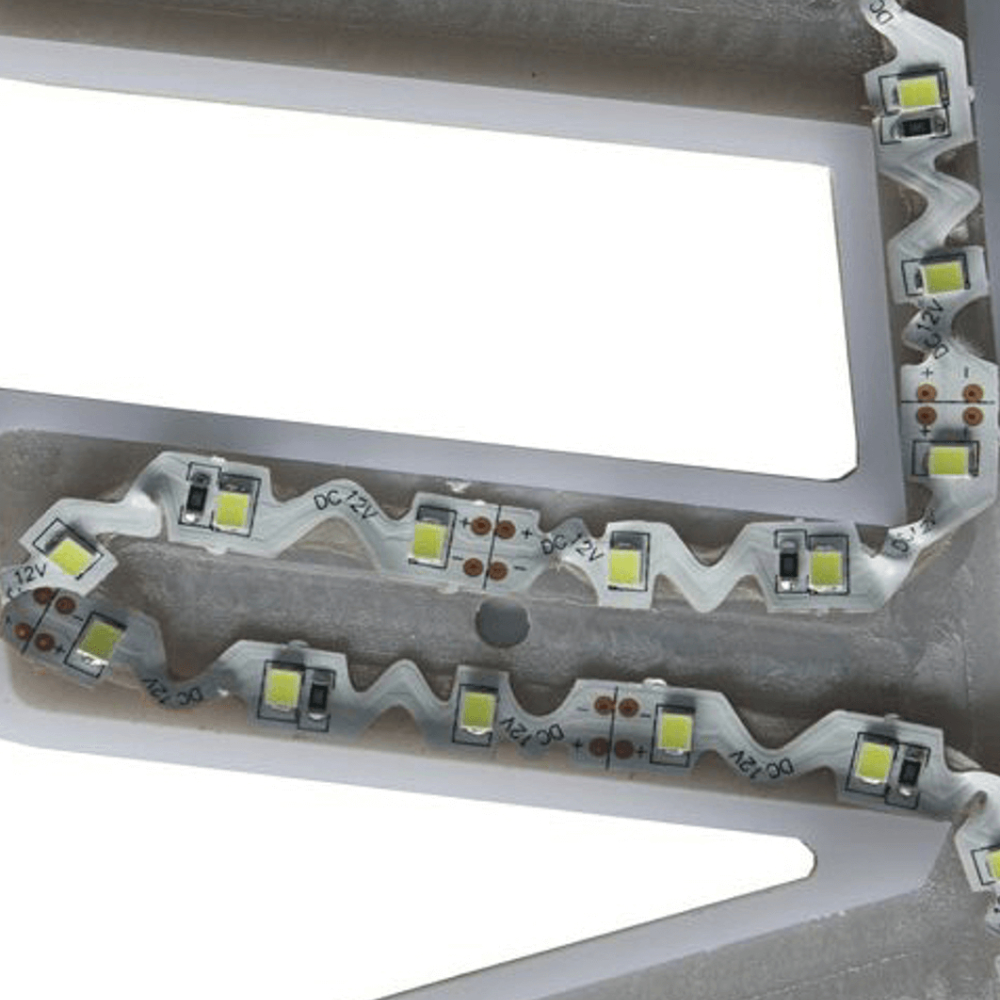

The Zigzag 9.6W/m LED strip (IP22) is a flexible LED strip specifically designed for curved installations, angles and complex geometric shapes. Thanks to its patented Zigzag design, it bends laterally without creating dark spots or damaging the PCB, making it possible to create light cut-outs, letters, decorative shapes or any custom architectural outline. Compatible with 24V DC, it delivers the same performance as a standard white strip while opening up unlimited creative possibilities.

cULus certified, this strip meets electrical standards in effect in both Canada and the United States, with a lifespan of up to 50,000 hours. Its high-quality PCB ensures excellent heat dissipation for stable long-term performance.

Color Temperatures

This Zigzag LED strip is available in five white color temperatures to suit any lighting need:

• 2700K (Warm White) – Creates a cozy and relaxing ambiance, ideal for living rooms and bedrooms.
• 3000K (Warm White) – Offers a slightly more neutral tone, perfect for living spaces.
• 3500K (Natural White) – Balances warmth and clarity, suitable for versatile environments.
• 4000K (Natural White) – Promotes a dynamic light, ideal for offices and commercial spaces.
• 5000K (Cool White) – Provides intense and stimulating brightness, recommended for workshops and areas requiring maximum visibility.

Recommended Applications

This Zigzag 9.6W/m LED strip is ideal for:

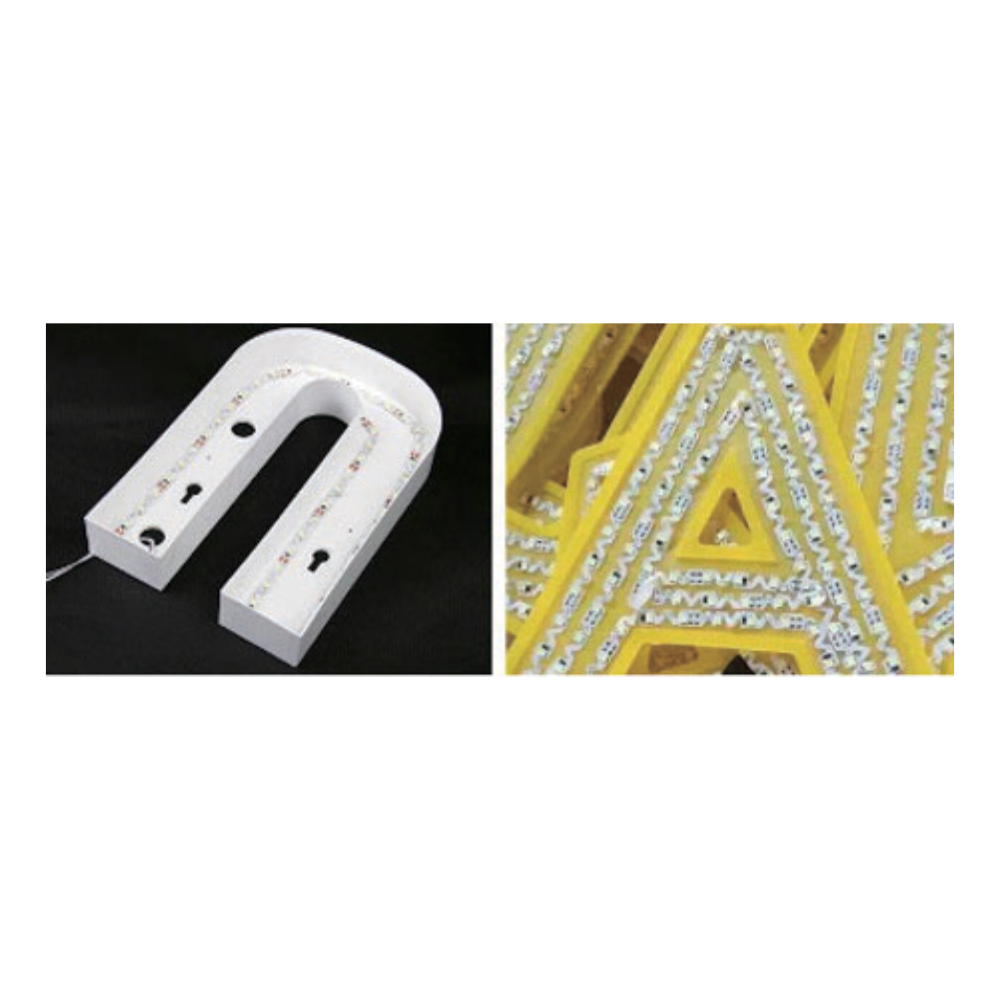

• Curved contours, geometric shapes and custom light lettering
• Vaulted ceilings, rounded alcoves and staircases with bends
• Commercial decorative lighting requiring precise and flexible routing
• Any installation where a standard strip cannot follow the shape without dark spots

Performance and Installation

The Zigzag design provides exceptional lateral flexibility without compromising light continuity. Its IP22 rating makes it perfectly suited for dry indoor environments. For outdoor or humid area installations, explore our range of waterproof outdoor LED strips.

Installation inside an aluminum profile is strongly recommended to optimize heat dissipation and achieve a professional architectural finish.

Power Supply Calculator

This LED strip consumes approximately 3W per foot. Simply multiply the total installed length by 3 to determine the required wattage.

Always add a 20% safety margin to ensure system stability and longevity.

• 1 reel (5 m / ~16 ft) = 48W → 60W power supply recommended
• 2 reels (~32 ft) = 96W → 115W power supply recommended
• 4 reels (~64 ft) = 192W → 200W or 240W power supply recommended

Use a 24V power supply matched to the total calculated wattage.

Dimming and Control

There are two ways to control the brightness of your LED strip. The first and simplest option is a 120V LED wall dimmer — it installs directly in place of your existing switch, between the 120V line and a dimmable power supply, and lets you adjust brightness from the wall with no additional equipment required.

The second option: a wireless controller system made up of a receiver paired with a remote or wireless wall controller. A zone is any section of lighting you want to control independently. For example, if you want a ceiling to turn on separately from a niche, or one section to have a different brightness than another, that represents two distinct zones.

If you want all lighting to always operate together (same brightness and simultaneous on/off), a single receiver is sufficient for the entire installation. However, if the total power of your project exceeds 225W on that zone, a 20A LED amplifier must be added to ensure stable, uniform, and lasting power delivery.

• 120V LED Wall Dimmer (150W) – Installs in place of your existing switch. Controls brightness from the wall, compatible with a dimmable power supply.
• W21 – Wireless wall controller (AAA batteries), range up to 100 feet, up to 4 zones.
• R21 – Radio-frequency remote, range up to 100 feet, up to 4 zones.
• Universal 4-Zone 12A Receiver – Installed between the power supply and the LED strip to receive the signal (1 per independent zone).
• 20A LED Amplifier (480W at 24V) – Recommended for installations exceeding 225W per zone.
• WiFi Controller – Full brightness control via Apple or Android mobile app.

Length Options

Available in standard 5-meter or 30-meter reels, this LED strip can also be supplied in custom lengths.
