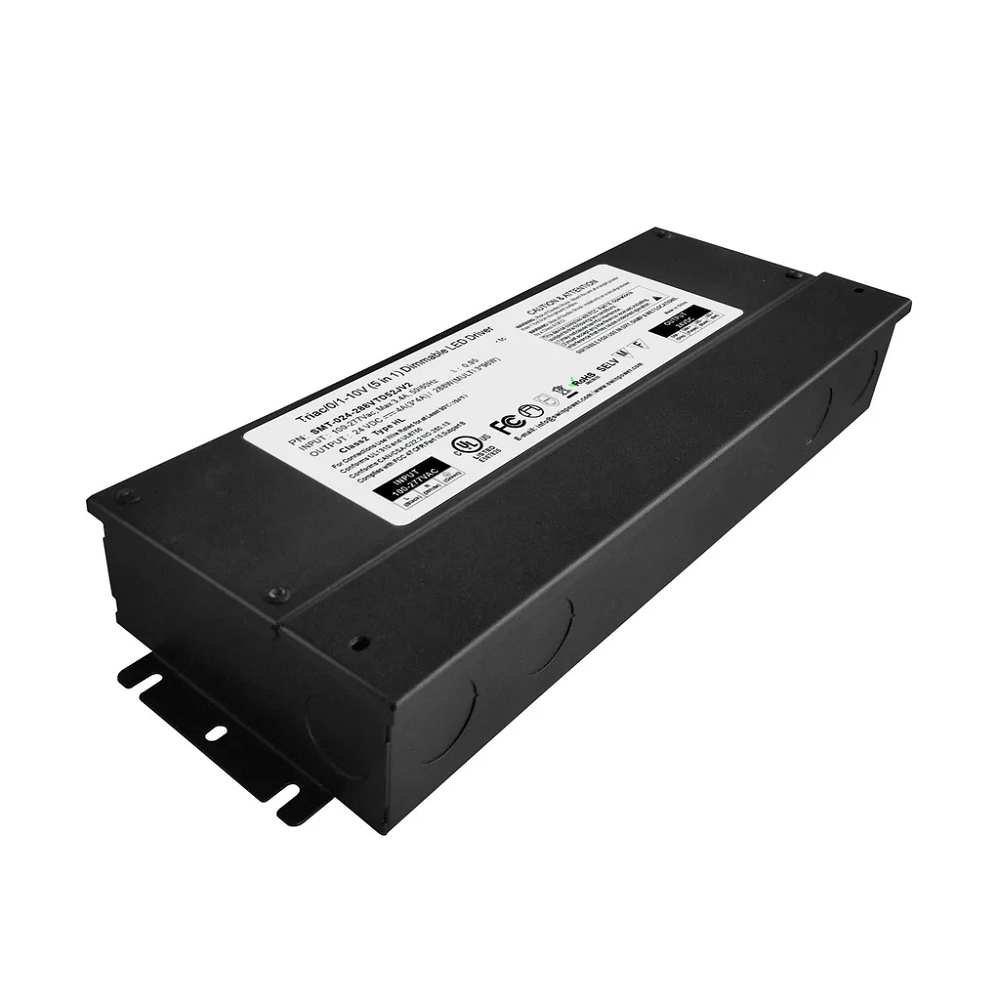

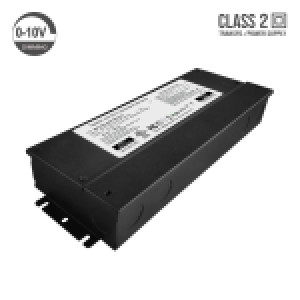

LED POWER SUPPLY - 5IN1 - 192W

The 5-in-1 dimmable LED power supply 192W by LEDCO is a professional constant voltage driver offering five dimming modes, multiple outputs and an IP67 waterproof enclosure. Designed for commercial installations and large residential projects requiring high capacity in indoor or outdoor environments, it combines the versatility of five dimming protocols with the ability to power multiple zones from a single driver.

5 DIMMING MODES AND MULTIPLE OUTPUTS

This 5-in-1 dimmable multi-output LED driver supports five dimming protocols, making it compatible with virtually any lighting control system on the market:

• TRIAC: Compatible with standard in-wall dimmers (leading edge and trailing edge), the most common mode for residential use.
• 0-10V: The most common standard in commercial and institutional lighting.
• 1-10V: Compatible with European systems and industrial controllers.
• 10V PWM: For digital pulse-width modulation controllers.
• Resistance: Potentiometer dimming for simple, cost-effective control.

The key advantage of this model is its multi-output configuration, which allows multiple LED strip runs or fixtures to be connected directly to the driver without requiring an external splitter. Combined with TRIAC and 0-10V compatibility in a single enclosure, this architecture significantly simplifies multi-zone installations where each output powers a different section of the project.

TECHNICAL SPECIFICATIONS

This waterproof 192W LED power supply operates on 24V DC with an IP67 protection rating, ensuring full resistance to dust and temporary water immersion. Its aluminum housing provides efficient heat dissipation even in the most demanding environments.

To ensure optimal lifespan, it is recommended not to exceed 80% of total capacity, meaning a maximum load of 153.6W. This translates to approximately 16 meters of 9.6W/m LED strip or 8 meters of 19.2W/m strip, distributed across multiple outputs as needed.

RECOMMENDED APPLICATIONS

This power supply is compatible with all of our LED strips, LED puck lights and fixtures operating on 24V DC. Thanks to its IP67 rating, multiple outputs and multi-protocol compatibility, it is particularly suited for:

• Multi-zone commercial lighting where several LED strip runs need to be dimmed simultaneously from a single power point via a 0-10V system.
• Large residential projects with wall dimmers thanks to the built-in TRIAC mode, powering kitchen, living room and hallways from a single waterproof driver.
• Large-scale outdoor and landscape projects (facades, perimeter soffits, decks, walkways) requiring powerful, waterproof power.
• Wet-location installations including spas, commercial kitchens, underground parking and industrial environments.

For installations requiring less power with the same dimming protocols, check out the 5-in-1 96W model. For higher capacity with multiple outputs, see the 5-in-1 288W model. For indoor projects that do not require IP67 waterproofing, explore our standard dimmable LED power supplies. Contact our team at (450) 444-4007 or visit our showroom in Saint-Hubert, on Montreal's South Shore.
