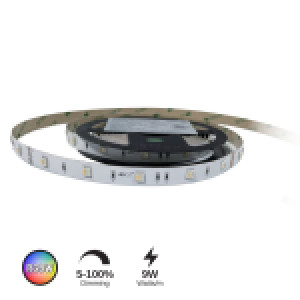

LED STRIP 9W/M (RGB-W) | LEDCO
LED STRIP 9W/M (RGB-W)
LED STRIP 9W/M (RGB-W)

LED STRIP 9W/M (RGB-W)

SKU: LCLS24V-9W-RGBW-30K-IP22

💡 Roll: 5 m

A 24 V RGBW LED strip at 9 W/m that combines multicolor accent lighting and a 3000K warm white on a single strip. Its 5050 LEDs carry four independent channels — red, green, blue and white — and it cuts every 166.67 mm. Indoor IP22, in 5 m rolls.

At a Glance

  • SMD 5050 RGBW chips, 30 LEDs/m
  • CRI 80+, 120° beam angle
  • Four channels: red, green, blue and 3000K white
  • Cuts every 166.67 mm
  • Lifespan: 50,000+ hours
  • Indoor IP22
  • cULus certified

Color Temperatures

The white channel of this RGB-W strip is available in one fixed color temperature to complement your décor:

  • 3000K (Warm White) – Delivers a warm and inviting tone, perfect for living rooms, bedrooms and common areas. Pairs naturally with RGB colors for harmonious ambient effects.

Recommended Applications

This RGB-W 9W/m LED strip is ideal for:

  • Multicolor ambient lighting with warm white option for living rooms and common areas
  • TV backlighting, bar furniture accent and bookcase decoration
  • Decorative lighting for bars, restaurants and event spaces
  • Colored architectural accent lighting in retail, showrooms and boutiques
  • Stage and decorative lighting for studios and creative spaces

Installation and Compatible Profiles

With a 120° beam angle, this LED strip delivers uniform color and white light with no visible dark spots. Its IP22 rating makes it suited for dry indoor environments. For outdoor or humid area installations, explore our range of waterproof outdoor LED strips.

Installation inside an aluminum profile is strongly recommended to optimize heat dissipation and achieve a professional architectural finish.

Aluminum profiles compatible with this 10 mm strip: Profile #84, Profile #85, Profile #90, Profile #91, Profile #49, Profile #50, Profile #81, Profile #87, Profile #86, Profile #88, Profile #89, Profile #92, Profile #97, Profile #315, Drywall Apsis, Drywall Latus, Drywall Sulcus.

Power Supply Calculator

This strip draws 9 W/m, or 2.74 W per foot. Multiply the installed length by 2.74, then choose a 24 V power supply loaded to 80% maximum of its rating.

Maximum strip length per dimmable power supply (24 V):

  • 24 W (LCPSLCODIM-24V-24W): up to 7.0 ft (2.1 m)
  • 48 W (LCPSLCODIM-24V-48W): up to 14.0 ft (4.3 m)
  • 96 W (LCPSLCODIM-24V-96W): up to 28.0 ft (8.5 m)
  • 200 W (LCPSLCODIM-24V-200W): up to 58.3 ft (17.8 m)
  • 300 W (LCPSLCODIM-24V-300W): up to 87.5 ft (26.7 m)

5-in-1 power supplies (TRIAC, 0-10 V, 1-10 V, PWM) are also available: see the full table in the spec sheet.

Color Control and Dimming

The RGB-W LED strip is controlled via a wireless controller system made up of a receiver paired with a remote or wireless wall controller. This system lets you adjust brightness, choose from millions of colors, and switch to pure white light — all from a single interface.

If the total power of your project exceeds 225W on that zone, a 20A RGBW LED amplifier must be added to ensure stable, uniform, and lasting power delivery.

  • W24 – Wireless RGBW wall controller (AAA batteries), range up to 100 feet, up to 4 zones.
  • R24 – RGBW radio-frequency remote, range up to 100 feet, up to 4 zones.
  • Universal 4-Zone 12A Receiver – Installed between the power supply and the LED strip to receive the signal (1 per independent zone).
  • RGBW LED Amplifier 20A (480W at 24V) – Recommended for installations exceeding 225W per zone.
  • RGBW WiFi Controller – Color and intensity control via Apple or Android mobile app.

Lengths and Custom Orders

Sold in a 5 m roll. For a custom length, contact us.

The spec sheet and the voltage drop chart are in the downloadable documents below.

  • cULus
Shipped in 24h

75.95$


● Shipping:

SPECIFICATIONS

  • Power: 9W/m (±10%), 45W per 5 m reel
  • Color temperature: RGB + 3000K white
  • LED: SMD 5050 RGBW, 30 LEDs/m
  • CRI: 80+
  • Beam angle: 120°
  • PCB width: 10 mm (white board, 3 oz)
  • Cut: every 166.67 mm / 6.56 in (5 LEDs)
  • Voltage: 24V DC, constant voltage
  • Dimming: DMX, PWM, RF PWM, 0-10V
  • Protection: IP22 (dry indoor)
  • Operating temperature: -25 °C to 60 °C
  • Lifespan: 50,000+ h
  • Mounting: 3M double-sided tape
  • Certification: cULus
