LED ALUMINUM PROFILE #84

💡 8 ft (2.44 m) or 16 ft (4.88 m) lengths · custom cuts up to 192 in · aluminum, black or white finish

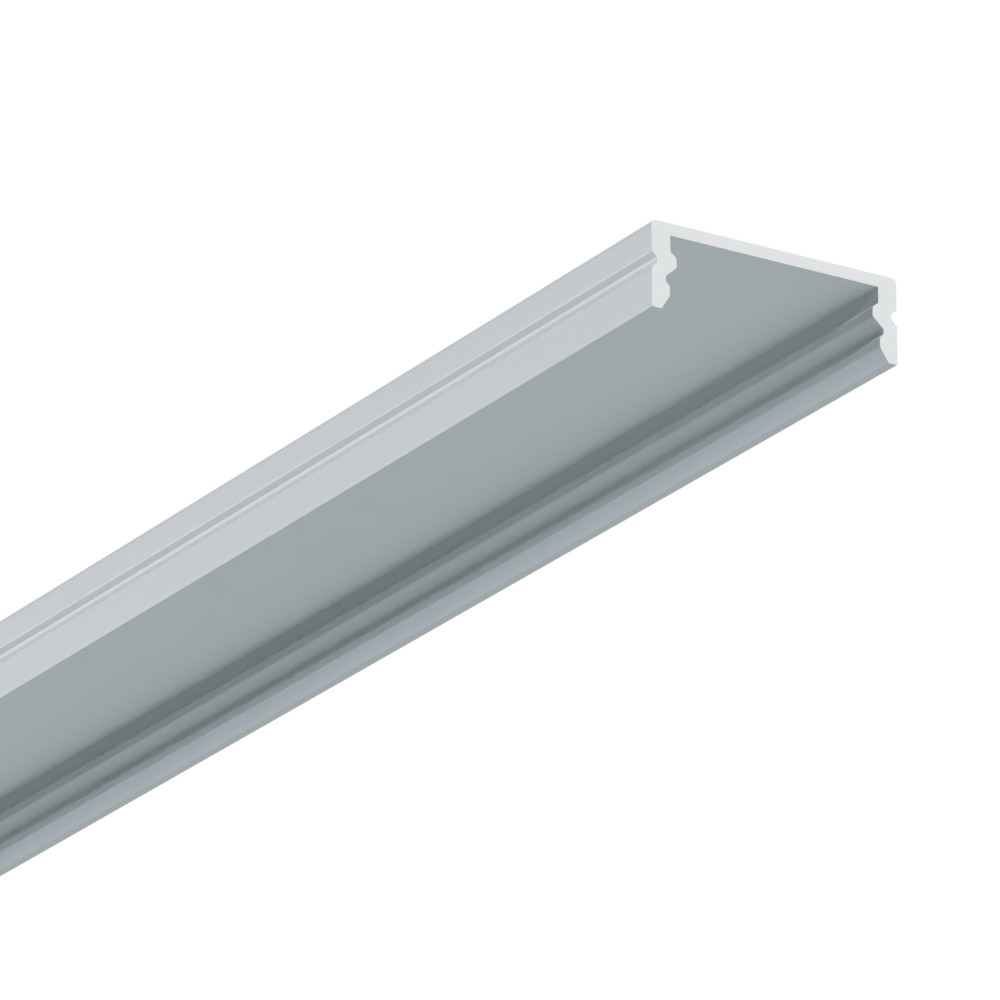

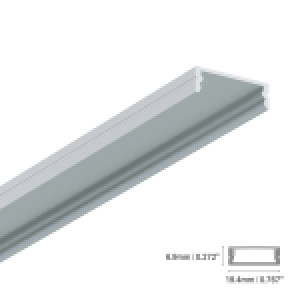

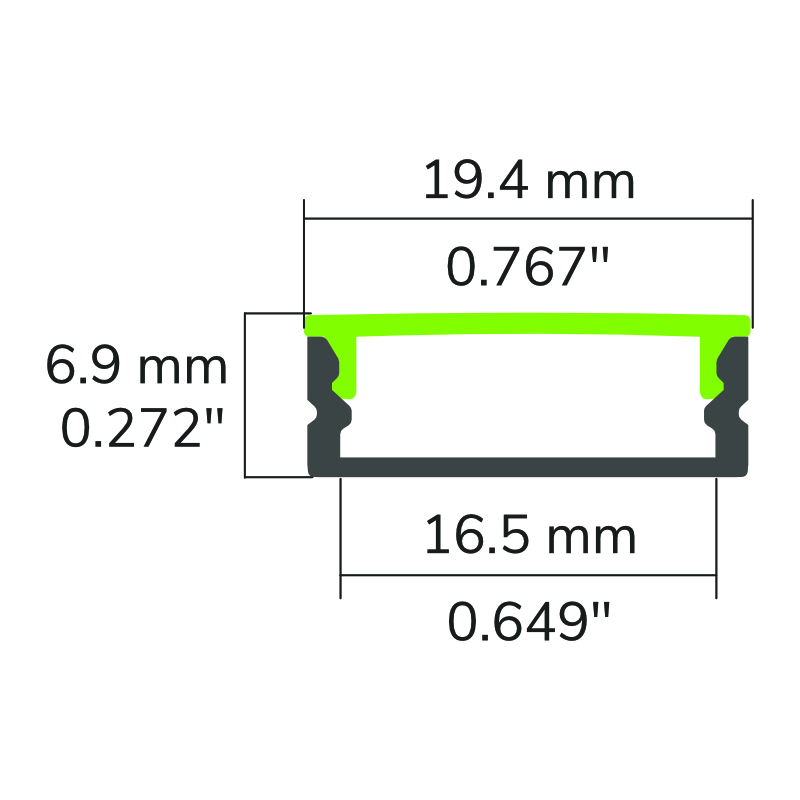

The #84 LED aluminum profile is one of the slimmest in our lineup: 19.4 mm wide by 6.9 mm high, lens included (0.767 × 0.272 in). Surface mounted, it fits where a standard profile won't and turns a simple LED strip into a clean, protected, professional-looking line of light.

Extruded from 6063-T5 aluminum, the profile acts as a heat sink: the strip runs cooler, its LEDs age more slowly and your lighting keeps its brightness longer. The snap-in lens shields the strip from dust and impacts while softening the light. The #84 is cETLus certified and can be painted to match your décor.

• Custom fabrication, cETL certified
• Components also sold separately
• Ships in 24 to 48 h
• Delivery across Canada

Custom Fabrication

We build your custom fixtures to your lengths in our cETL-certified warehouse. A manufactured fixture must be approved to meet the electrical code and the requirements of the Régie du bâtiment du Québec: ours are.

Get your quote in minutes with our Custom LED Builder. Prefer to assemble it yourself? All components are also sold separately.

Which LED Strip Should You Choose?

The #84 channel is 16.5 mm wide inside. It takes these 24V LED strips:

• 4.8 W/m LED strip
• 9.6 W/m LED strip
• 19.2 W/m LED strip
• 28.8 W/m LED strip
• 11 W/m COB LED strip
• 14.4 W/m RGB LED strip
• 19.2 W/m RGBW LED strip
• 20 W/m CCT LED strip
• 17 W/m Dim-to-Warm LED strip

Lenses and Finishes

• Opaque lens – diffuses and softens the light; available with all three finishes. Also sold separately in 8 ft.
• Coffee black lens – for a black profile in a single tone. Also sold separately in 8 ft.
• Frosted lens – sold separately in 8 ft; lets up to 85% of the light through.
• Finishes – natural aluminum, black or white; the profile can also be painted.

Accessories

• #84 mounting clips – small metal clips sold individually: screw them to the surface and snap the profile in.

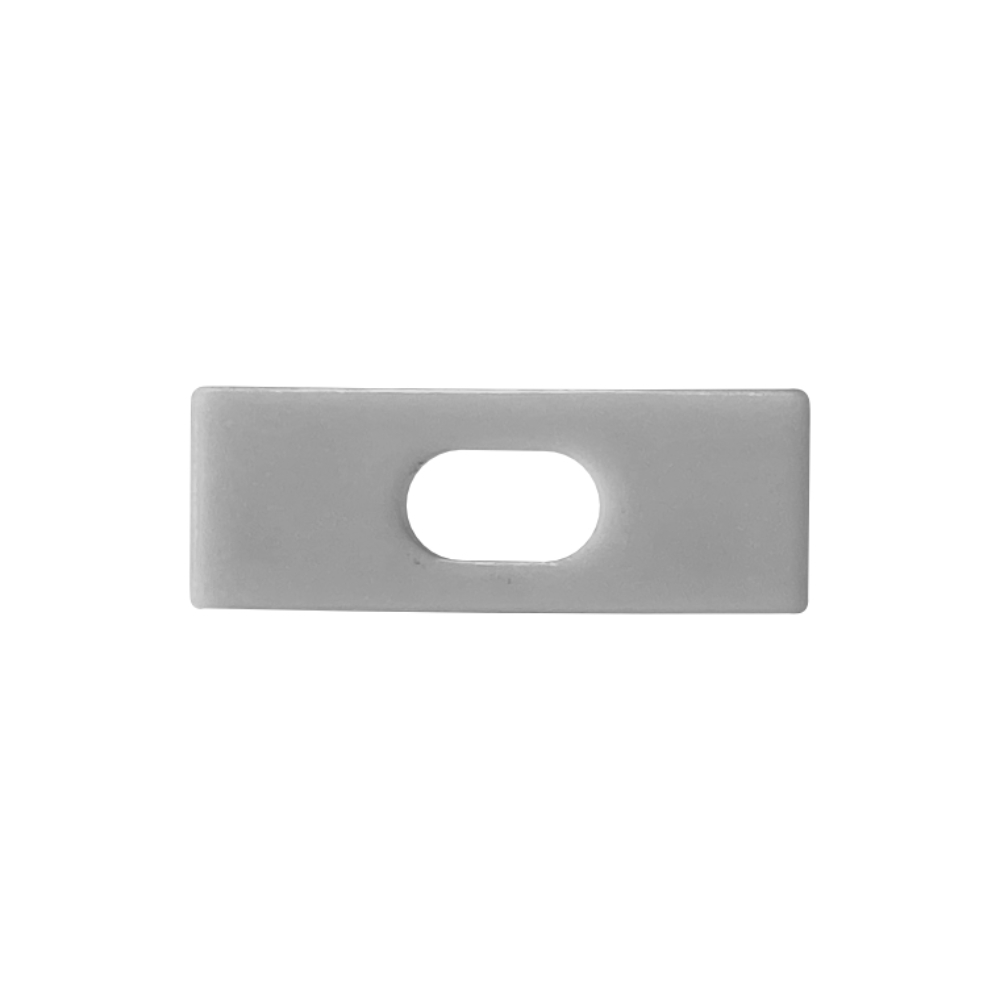

• #84 end cap with hole
• #84 end cap with hole, black
• #84 end cap without hole
• #84 end cap without hole, black

Indoors or outdoors: the profile is aluminum, the strip is what makes the difference. For outdoor or damp locations, pick the waterproof version of your strip from our IP66 outdoor LED strips.

The dimensioned drawing is in the spec sheet available for download below.
