LED STRIP 9.6W/M
SKU: LCLS24V-48W-30K-IP22
💡 Rolls: 5 m or 30 m · custom lengths by the inch
A 24 V LED strip at 9.6 W/m for even accent or task lighting. Dimmable, it cuts every 1/2 in and fits most of our aluminum profiles. Available indoor IP22 (also waterproof IP66), in 5 m and 30 m rolls, in five color temperatures.
At a Glance
- 2835 SMD chips
- CRI 90+, 120° beam angle
- Dimmable
- Maximum run: 10 m
- Lifespan: 50,000+ hours
- Indoor IP22 or waterproof IP66
- cULus certified
Color Temperatures
This LED strip is available in five white color temperatures to suit any lighting need:
- 2700K (Warm White) – Creates a cozy and relaxing ambiance, ideal for living rooms and bedrooms.
- 3000K (Warm White) – Offers a slightly more neutral tone, perfect for living spaces.
- 3500K (Natural White) – Balances warmth and clarity, suitable for versatile environments.
- 4000K (Natural White) – Promotes a dynamic light, ideal for offices and commercial spaces.
- 5000K (Cool White) – Provides intense and stimulating brightness, recommended for workshops and areas requiring maximum visibility.
Recommended Applications
This 24V 9.6W/m LED strip is ideal for:
- Ceiling coves and drywall reveals
- Under-cabinet kitchen and countertop lighting
- Ambient lighting for living rooms, bedrooms and retail spaces
- Interior stair lighting
Installation and Compatible Profiles
With a 120° beam angle, this LED strip delivers even light distribution with no visible dark spots, ideal for drywall reveals, niches and architectural outlines. Its IP22 rating makes it suited for dry indoor environments — living rooms, bedrooms, hallways, kitchens, retail spaces. For installations directly exposed to water — showers, outdoors, commercial signs — explore our range of waterproof outdoor LED strips.
For maximum lifespan and a high-end finish, installation inside an aluminum profile is strongly recommended. The profile improves heat dissipation, reduces LED degradation and gives a clean architectural finish thanks to its built-in diffuser.
The strip can be cut at every LED, every 8.3 mm (1/3 in), to match dimensions precisely. The maximum length per power feed is 10 m: beyond that, power each section separately, in parallel, from the power supply.

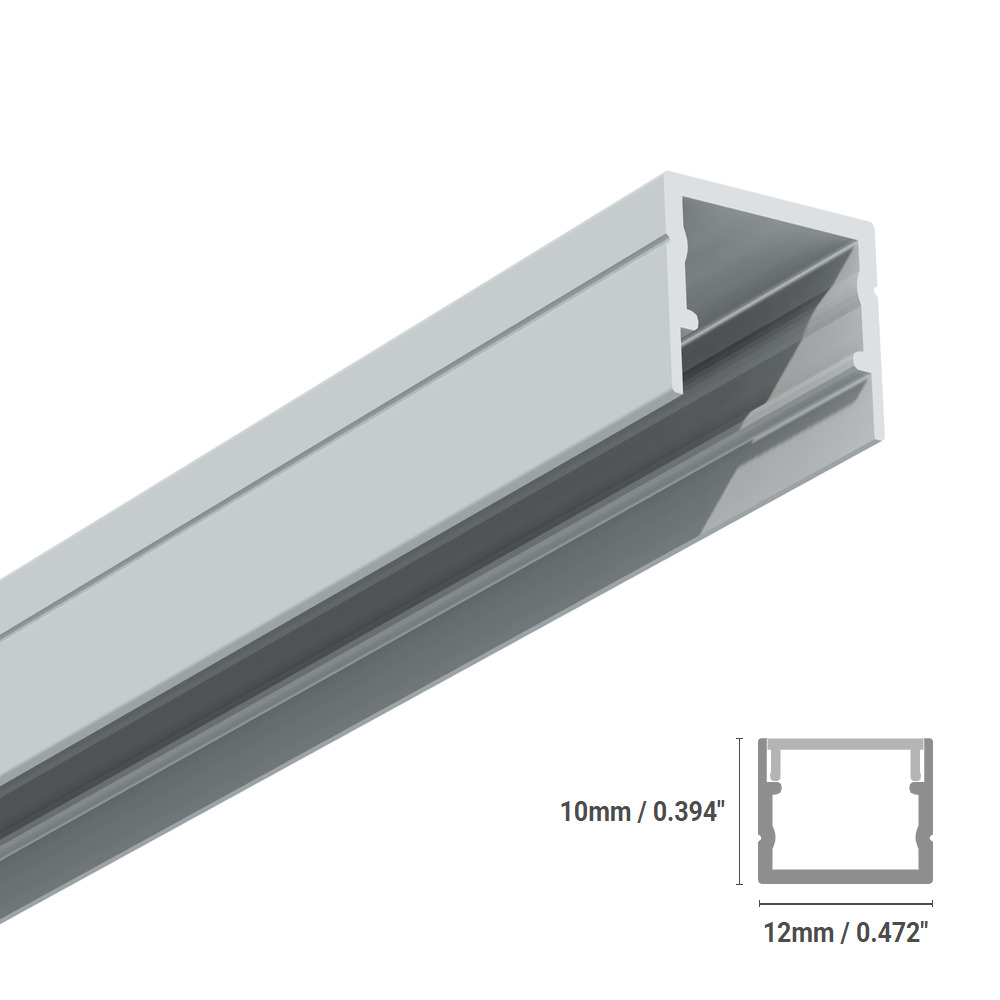

Aluminum profiles compatible with this 8 mm strip: Profile #80, Profile #84, Profile #85, Profile #90, Profile #91, Profile #49, Profile #50, Profile #81, Profile #87, Profile #86, Profile #88, Profile #89, Profile #92, Profile #95, Profile #96, Profile #97, Profile #315, Drywall Apsis, Drywall Latus, Drywall Sulcus.
Power Supply Calculator
This strip draws 9.6 W/m, or 2.93 W per foot. Multiply the installed length by 2.93, then choose a 24 V power supply loaded to 80% maximum of its rating.
Maximum strip length per dimmable power supply (24 V):
- 24 W (LCPSLCODIM-24V-24W): up to 6.6 ft (2.0 m)
- 48 W (LCPSLCODIM-24V-48W): up to 13.1 ft (4.0 m)
- 96 W (LCPSLCODIM-24V-96W): up to 26.2 ft (8.0 m)
- 200 W (LCPSLCODIM-24V-200W): up to 54.7 ft (16.7 m)
- 300 W (LCPSLCODIM-24V-300W): up to 82.0 ft (25.0 m)
5-in-1 power supplies (TRIAC, 0-10 V, 1-10 V, PWM) are also available: see the full table in the spec sheet.
This strip also comes in 12 V: in that case, use a 12 V power supply, also loaded to 80% maximum.
Beyond 10 m (32.8 ft) in one run, feed the strip from several points (maximum run).
Dimming and Control
There are two ways to control the brightness of your LED strip. The first and simplest option is a 120V LED wall dimmer — it installs directly in place of your existing switch, between the 120V line and a dimmable power supply, and lets you adjust brightness from the wall with no additional equipment required.
The second option: a wireless controller system made up of a receiver paired with a remote or wireless wall controller. A zone is any section of lighting you want to control independently. For example, if you want a ceiling to turn on separately from a niche, or one section to have a different brightness than another, that represents two distinct zones.
If you want all lighting to always operate together (same brightness and simultaneous on/off), a single receiver is sufficient for the entire installation. However, if the total power of your project exceeds 225W on that zone (about 23 m of this strip), a 20A LED amplifier must be added to ensure stable, uniform, and lasting power delivery.
- 120V LED Wall Dimmer – Installs in place of your existing switch. Controls brightness from the wall, compatible with a dimmable power supply.
- W21 – Wireless wall controller (AAA batteries), range up to 100 feet, up to 4 zones.
- R21 – Radio-frequency remote, range up to 100 feet, up to 4 zones.
- Universal 4-Zone 12A Receiver – Installed between the power supply and the LED strip to receive the signal (1 per independent zone).
- 20A LED Amplifier (480W at 24V) – Recommended for installations exceeding 225W per zone.
- WiFi Controller – Full brightness control via Apple or Android mobile app.
Lengths and Custom Orders
Sold in 5 m and 30 m rolls. It is also available in custom lengths, by the inch: get your quote in minutes with our custom LED Builder.
The spec sheet and the voltage drop chart are in the downloadable documents below.
79.95$
SPECIFICATIONS
- Power: 9.6W/m (±10%)
- Lumens per watt: 130 lm/W (about 1,248 lm/m)
- Color temperature: 2700K/3000K/3500K/4000K/5000K
- LED: SMD 2835, 120 LEDs/m
- CRI: 90+
- Beam angle: 120°
- PCB width: 8 mm (3 oz copper)
- Cut: at every LED (8.3 mm / 1/3 in)
- Max. length per power feed: 10 m
- Voltage: 24V DC (also available in 12V)
- Dimmable: yes (dimmable power supply or receiver)
- Protection: IP22 (dry indoor)
- Lifespan: 50,000+ h
- Leads: AWG20 silicone, 15 cm at both ends
- Mounting: 3M 9495LE adhesive
- Certification: cULus
- Recommended installation: mounting in an aluminum profile
