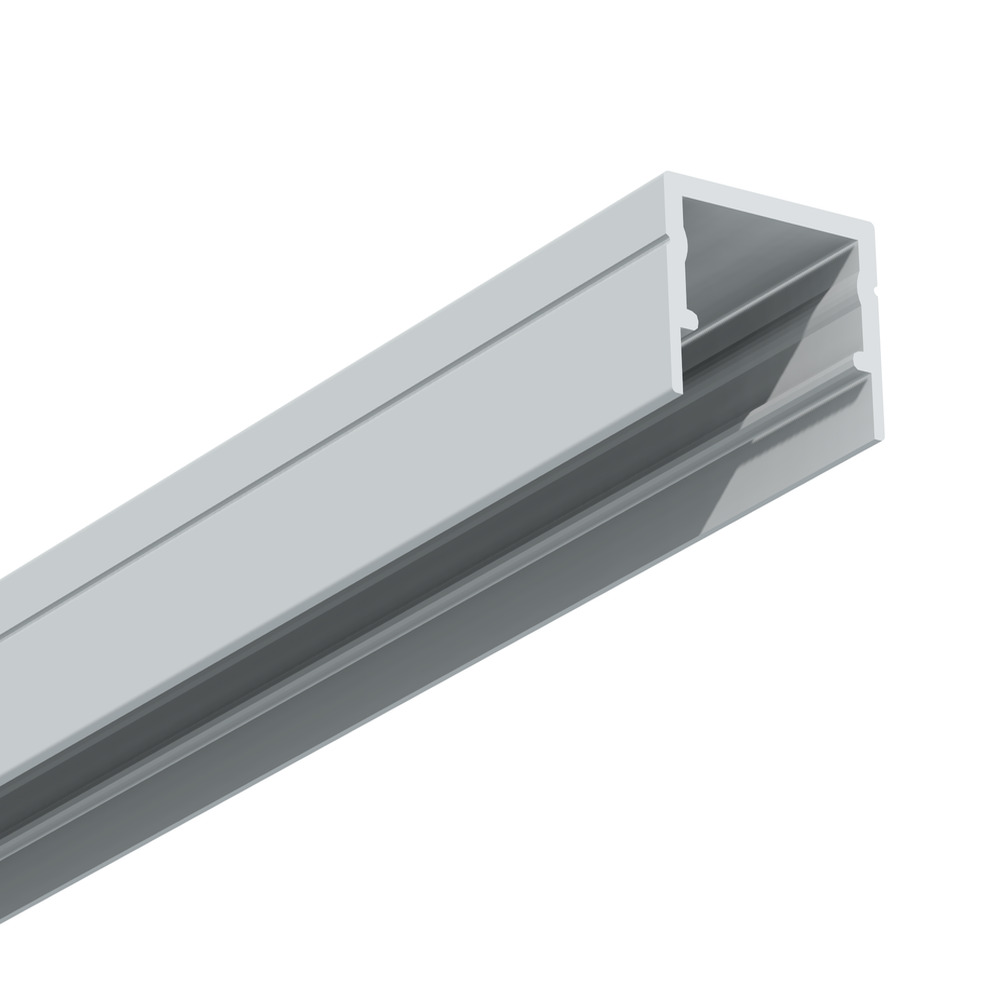

LED ALUMINUM PROFILE #80

💡 8 ft (2.44 m) or 16 ft (4.88 m) lengths · custom cuts · aluminum or black finish · optional opal lens

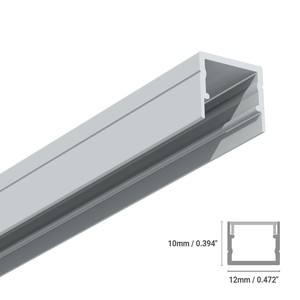

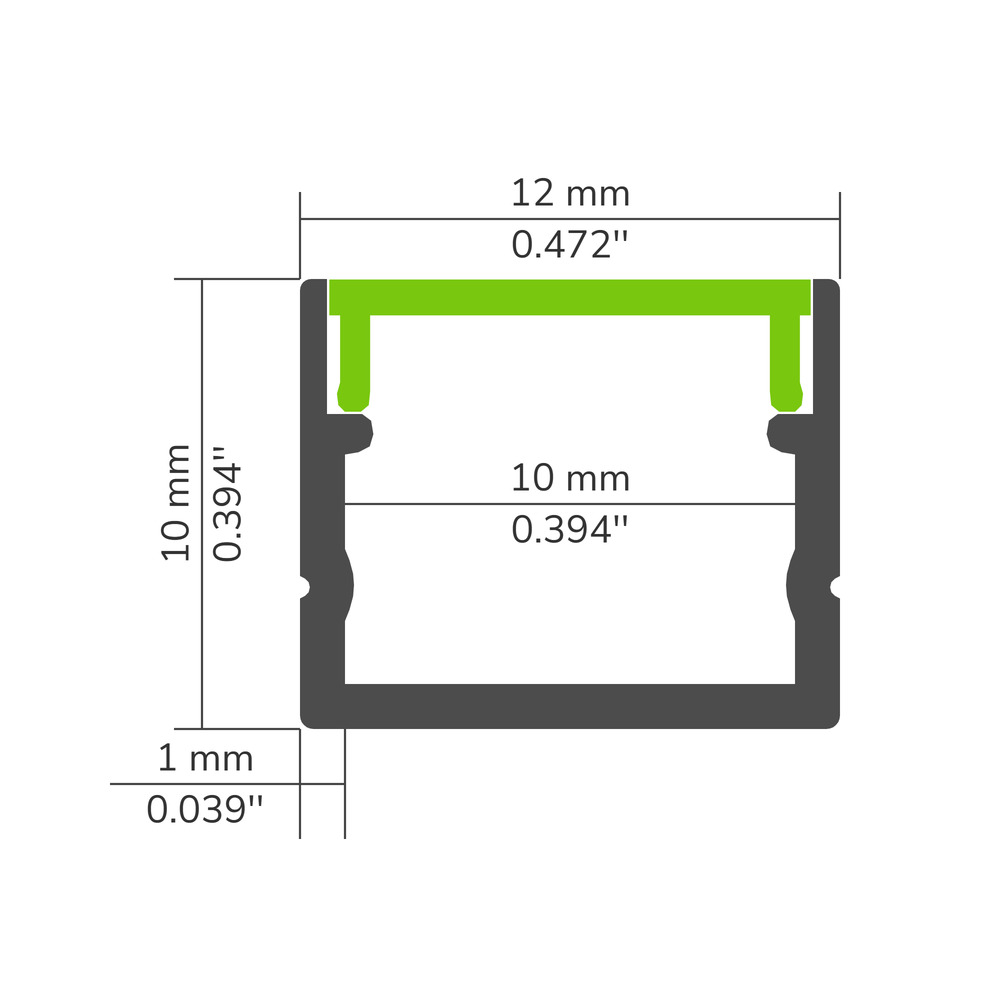

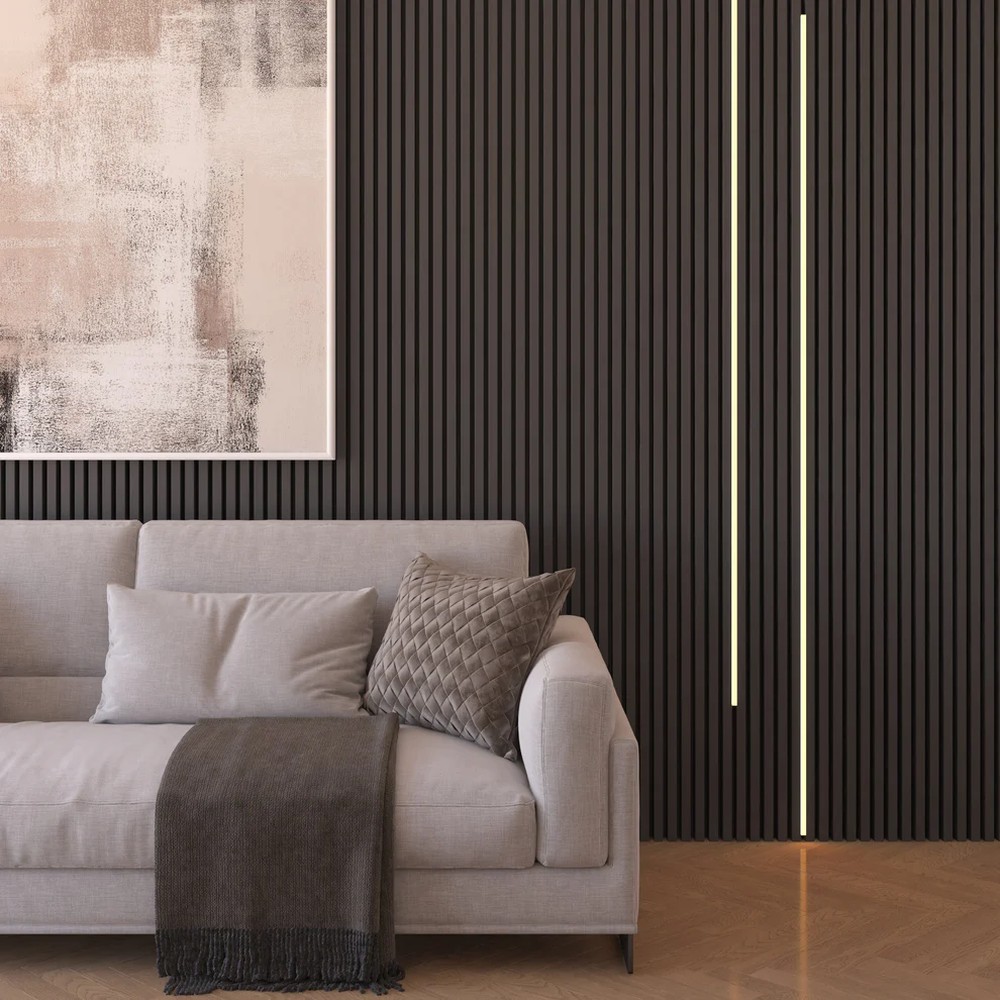

The #80 LED aluminum profile is one of the most compact in our lineup: 12 mm wide by 10 mm high (0.472 × 0.394 in). Designed for slat walls, it slips between the slats, into decorative panels and tight architectural details, and turns a simple LED strip into a discreet line of light.

Extruded from 6063-T5 aluminum, it acts as a heat sink: the strip runs cooler, its LEDs age more slowly and your lighting keeps its brightness longer. It comes in natural aluminum or black, with or without an opal lens to diffuse the light. 3-year warranty; certified for the Canadian market.

• Custom fabrication, cETL certified
• Components also sold separately
• Ships in 24 to 48 h
• Delivery across Canada

Custom Fabrication

We build your custom fixtures to your lengths in our cETL-certified warehouse. A manufactured fixture must be approved to meet the electrical code and the requirements of the Régie du bâtiment du Québec: ours are.

Get your quote in minutes with our Custom LED Builder. Prefer to assemble it yourself? All components are also sold separately.

Which LED Strip Should You Choose?

The #80 channel is 10 mm wide inside. It takes these 24V LED strips:

• 4.8 W/m LED strip
• 9.6 W/m LED strip
• 11 W/m COB LED strip
• 20 W/m CCT LED strip
• 17 W/m Dim-to-Warm LED strip

Lens and Finishes

• Opal lens – available with the profile, in aluminum or black; it diffuses the light.
• #80 opal lens, 8 ft – sold separately.
• #80 opal lens, 16 ft – sold separately.
• Finishes – natural aluminum or black.

Accessories

• #80 mounting bracket – sold individually, to fasten the profile to a surface.

The dimensioned drawing is in the spec sheet available for download below.
