LED ALUMINUM PROFILE #89

Name: LED ALUMINUM PROFILE #89
Brand: LEDCO
SKU: LCPROF-89-10FT
Price: 89.95 CAD
Availability: InStock

SKU: LCPROF-89-10FT

💡 10 ft length · opaque lens and end caps included

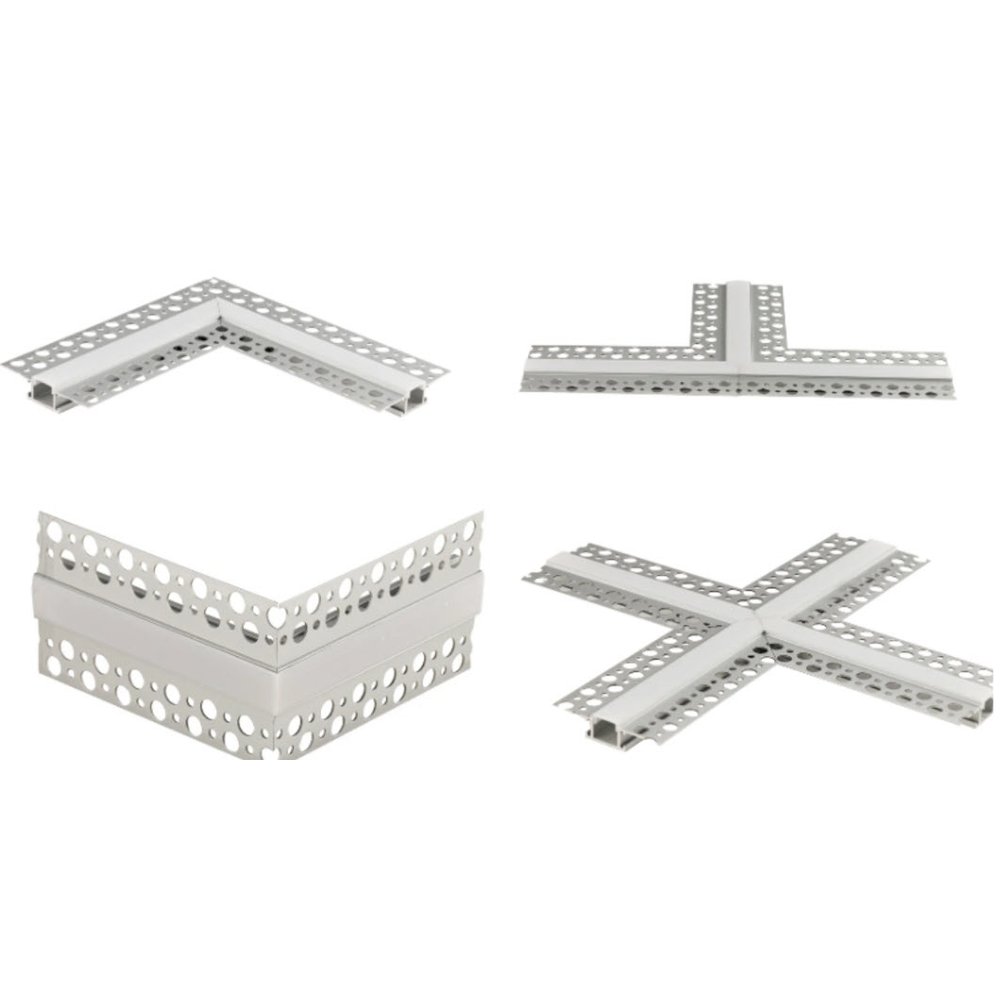

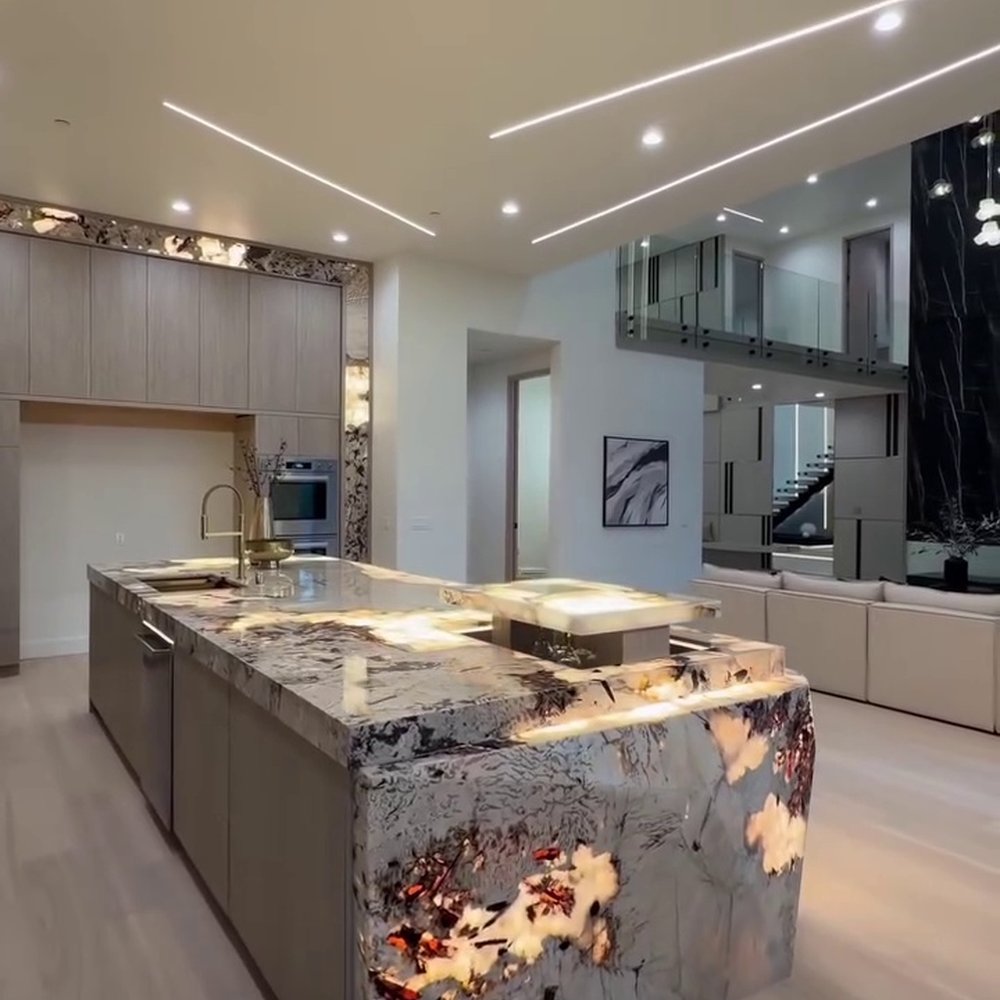

The #89 LED aluminum profile is a drywall-recessed profile: its flanges get covered with plaster while taping the joints, so once painted, all that remains is a line of light in the wall or ceiling. 61 mm (2.402 in) overall, a 27 mm (1.063 in) body, a 21 mm (0.827 in) opening and 13.9 mm (0.547 in) deep, it turns a simple LED strip into high-end architectural lighting.

Extruded from 6063-T5 aluminum, it acts as a heat sink: the strip runs cooler and keeps its brightness longer. It comes with its opaque lens and end caps, and gets painted with the wall. 3-year warranty.

Custom fabrication, cETL certified
Components also sold separately
Delivery across Canada

Custom Fabrication

We build your custom fixtures to your lengths in our cETL-certified warehouse. A manufactured fixture must be approved to meet the electrical code and the requirements of the Régie du bâtiment du Québec: ours are.

Get your quote in minutes with our Custom LED Builder. Prefer to assemble it yourself? All components are also sold separately.

Which LED Strip Should You Choose?

With its 21 mm opening, the #89 takes our 24V LED strips:

Lens and Finish

Opaque lens included – diffuses the light and hides the strip.
Finish – aluminum; once plastered, the profile is painted with the wall or ceiling.

Accessories

End caps – included with the profile.
#89 end cap with hole – for the power wire exit.
#89 end cap without hole – a spare, or for an extra cut.

Indoors or outdoors: the profile is aluminum, the strip is what makes the difference. For outdoor or damp locations, pick the waterproof version of your strip from our IP66 outdoor LED strips.

The dimensioned drawing is in the spec sheet available for download below.
