LED ALUMINUM PROFILE #92

💡 10 ft (3.05 m) length · lens included · strips up to 20 mm · bends to follow curves

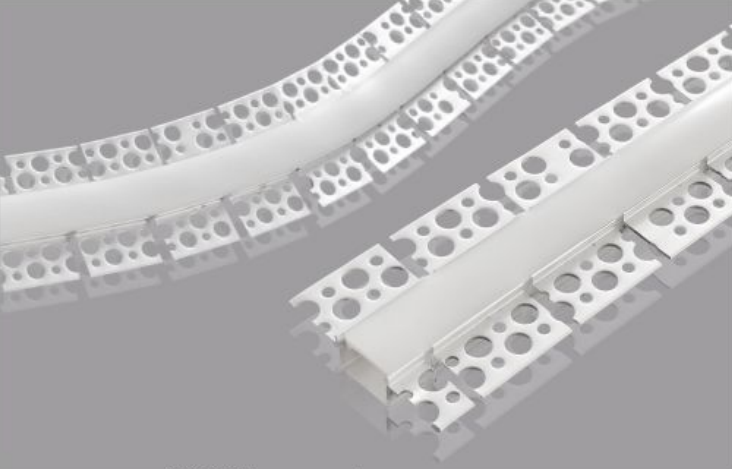

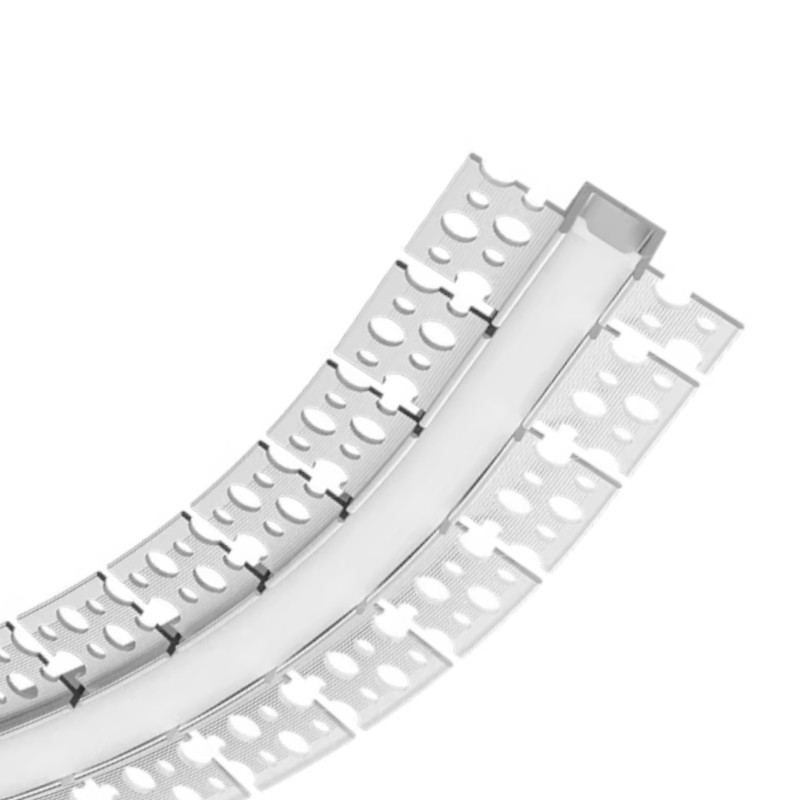

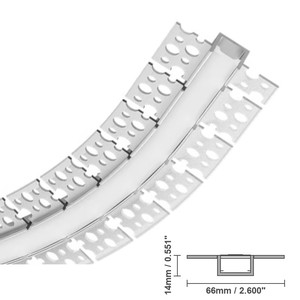

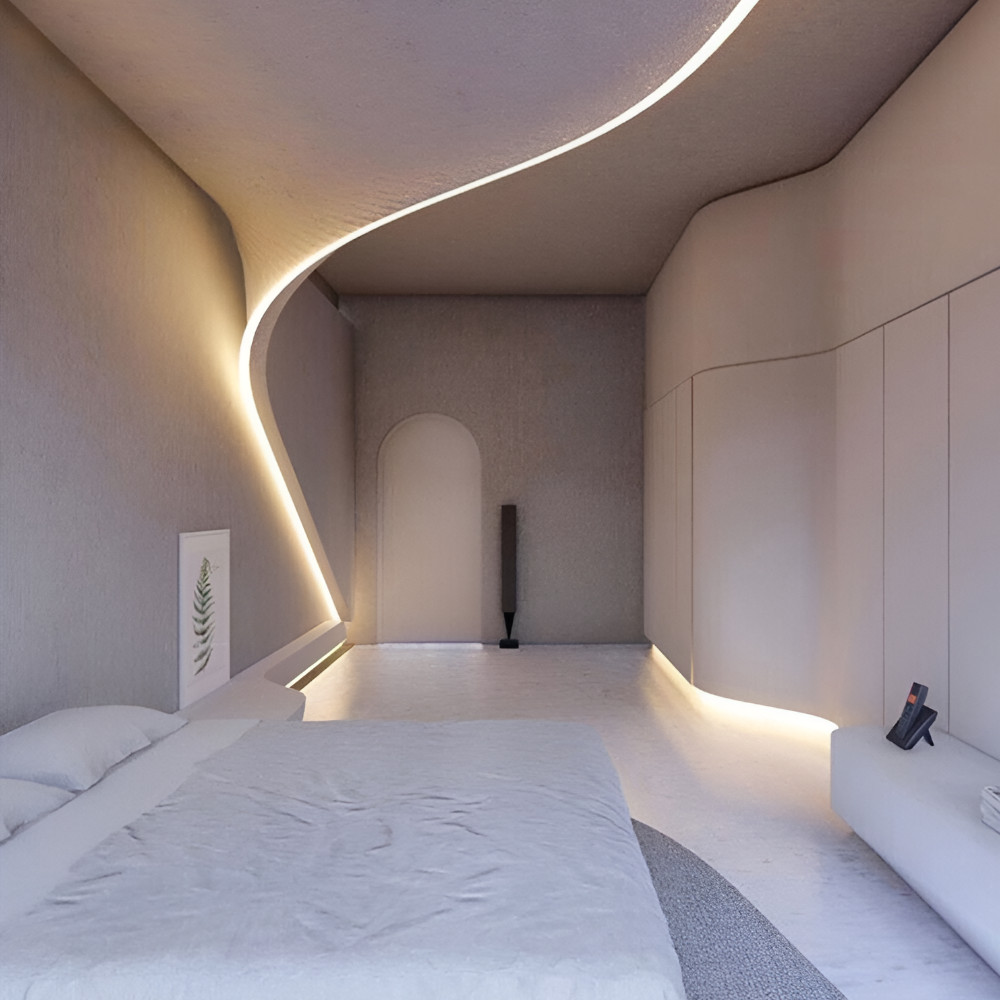

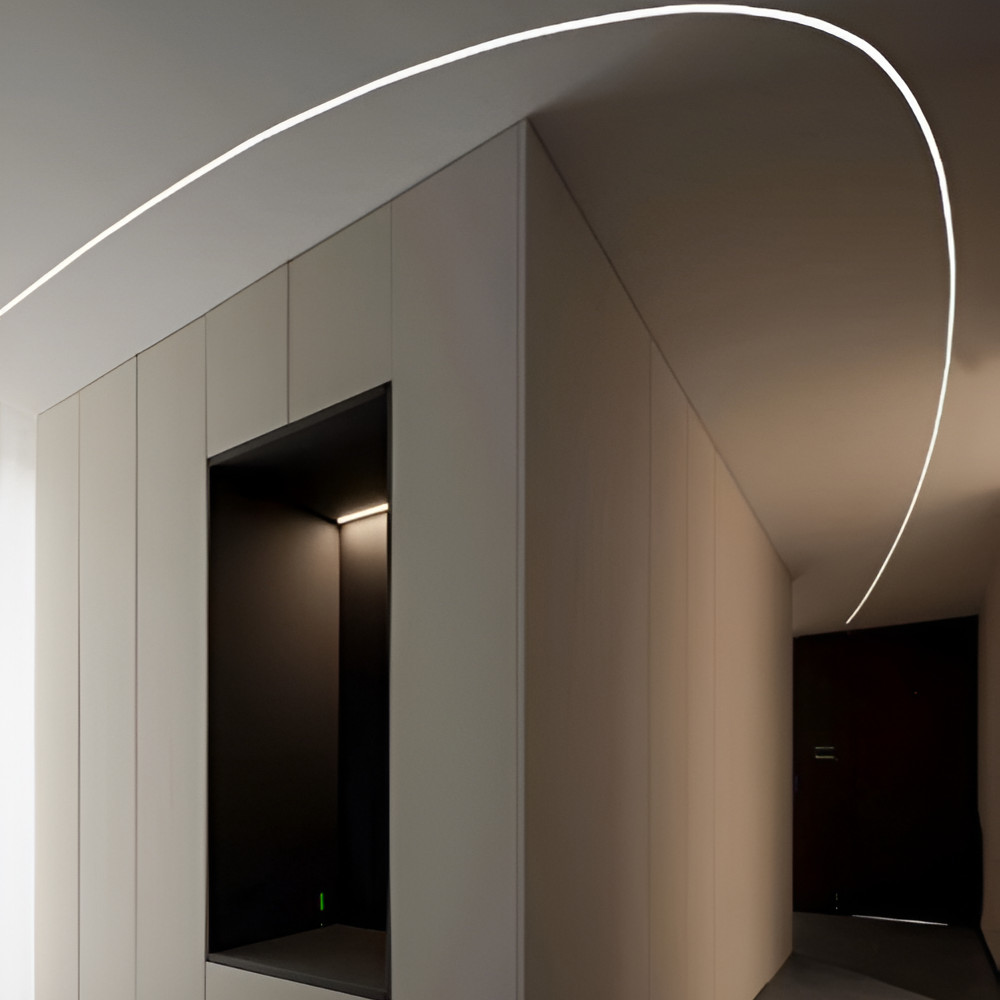

The #92 LED aluminum profile is a bendable drywall-recessed profile: it bends vertically to follow a curved ceiling, a vault or a rounded wall, then its flanges get covered with plaster. 66 mm (2.600 in) overall, with a 24.5 mm (0.965 in) channel and 14 mm (0.551 in) deep, it turns a simple LED strip into a smooth, continuous line of light.

Extruded from 6063-T5 aluminum, it acts as a heat sink for even lighting with no hot spots. It comes with its lens and gets painted with the surface. 3-year warranty.

• Components also sold separately
• Ships in 24 h
• Delivery across Canada

Custom Orders

Need a specific length or assembly? Request a quote. The profile and the strips are also sold separately.

Which LED Strip Should You Choose?

With its 24.5 mm channel, the #92 takes all of our 24V LED strips:

• 4.8 W/m LED strip
• 9.6 W/m LED strip
• 19.2 W/m LED strip
• 28.8 W/m LED strip
• 11 W/m COB LED strip
• 10 W/m spa and sauna LED strip
• 14.4 W/m RGB LED strip
• 19.2 W/m RGBW LED strip
• 20 W/m CCT LED strip
• 17 W/m Dim-to-Warm LED strip

Lens and Finish

• Lens included – protects the strip and diffuses the light.
• Finish – aluminum; once plastered, the profile is painted with the surface.

Indoors or outdoors: the profile is aluminum, the strip is what makes the difference. For outdoor or damp locations, pick the waterproof version of your strip from our IP66 outdoor LED strips.

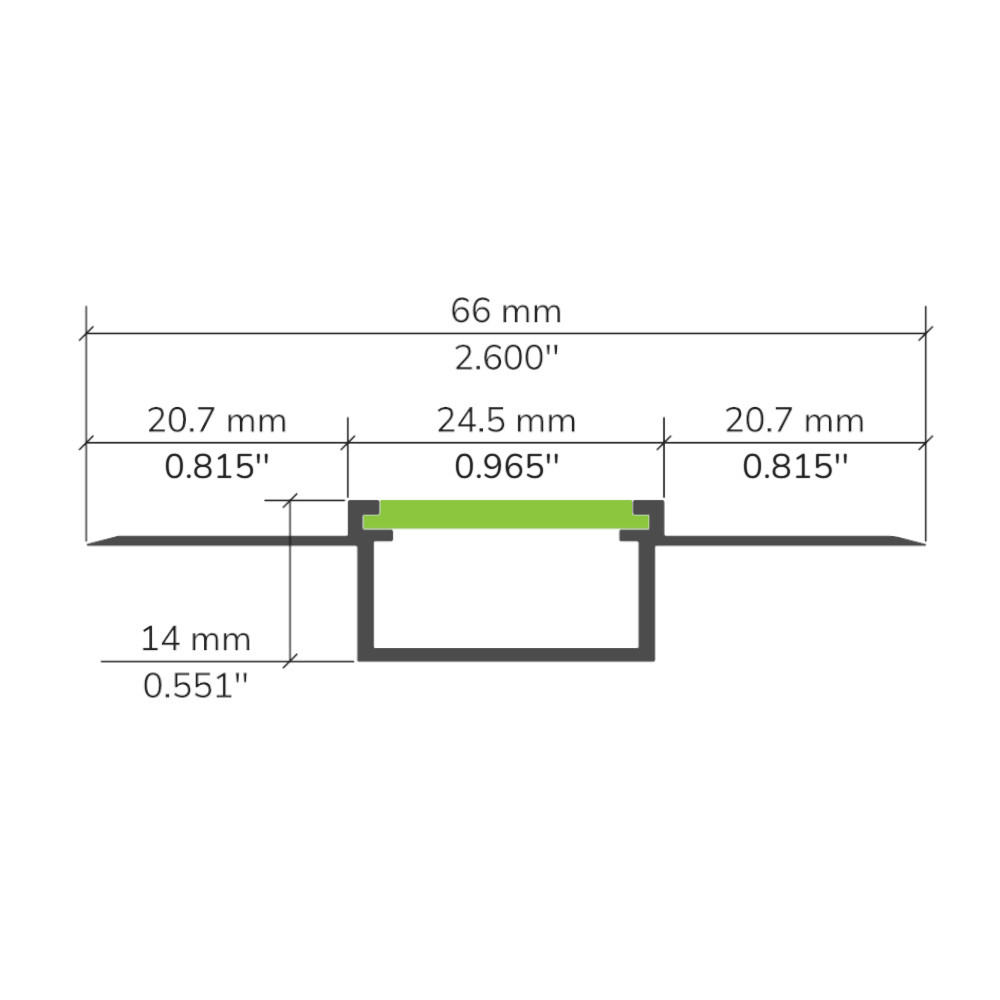

The dimensioned drawing is in the spec sheet available for download below.
