LED ALUMINUM PROFILE #97

💡 9 ft (2.74 m) length · opal lens and 2 end caps included · flush mount

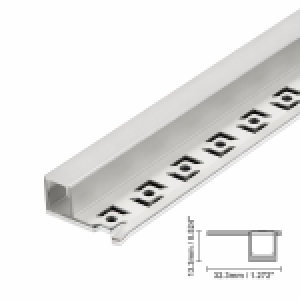

The #97 LED aluminum profile is a flush-recessed profile: its perforated flange fastens to the substrate and disappears into the plaster or drywall, so all that shows is a line of light. At 32.3 mm overall by 13.3 mm high (1.272 × 0.524 in), with a 12.1 mm (0.476 in) body and a channel 10 mm (0.394 in) wide and 11 mm (0.433 in) deep, it turns a simple LED strip into clean, discreet built-in lighting.

Extruded from silver anodized 6063-T5 aluminum, it acts as a heat sink: the strip runs cooler, its LEDs age more slowly and your lighting keeps its brightness longer. Its opal lens spreads the light over 120° and hides the strip. The #97 comes complete, with its lens and 2 finishing end caps.

• Components also sold separately
• Ships in 24 h
• Delivery across Canada

Custom Orders

Need a specific length or assembly? Request a quote. The profile and the strips are also sold separately.

Which LED Strip Should You Choose?

The #97 takes our 24V LED strips up to 10 mm wide:

• 4.8 W/m LED strip
• 9.6 W/m LED strip
• 19.2 W/m LED strip
• 28.8 W/m LED strip
• 11 W/m COB LED strip
• 10 W/m spa and sauna LED strip
• 14.4 W/m RGB LED strip
• 19.2 W/m RGBW LED strip
• 20 W/m CCT LED strip
• 17 W/m Dim-to-Warm LED strip

Lens and Finish

• Opal lens included – spreads the light over 120° and hides the strip.
• Finish – silver anodized aluminum.

Indoors or outdoors: the profile is aluminum, the strip is what makes the difference. For outdoor or damp locations, pick the waterproof version of your strip from our IP66 outdoor LED strips.

The dimensioned drawing is in the spec sheet available for download below.
