LED ALUMINUM PROFILE #96

💡 10 ft (3.05 m) length · opal lens and end caps included · inside corners

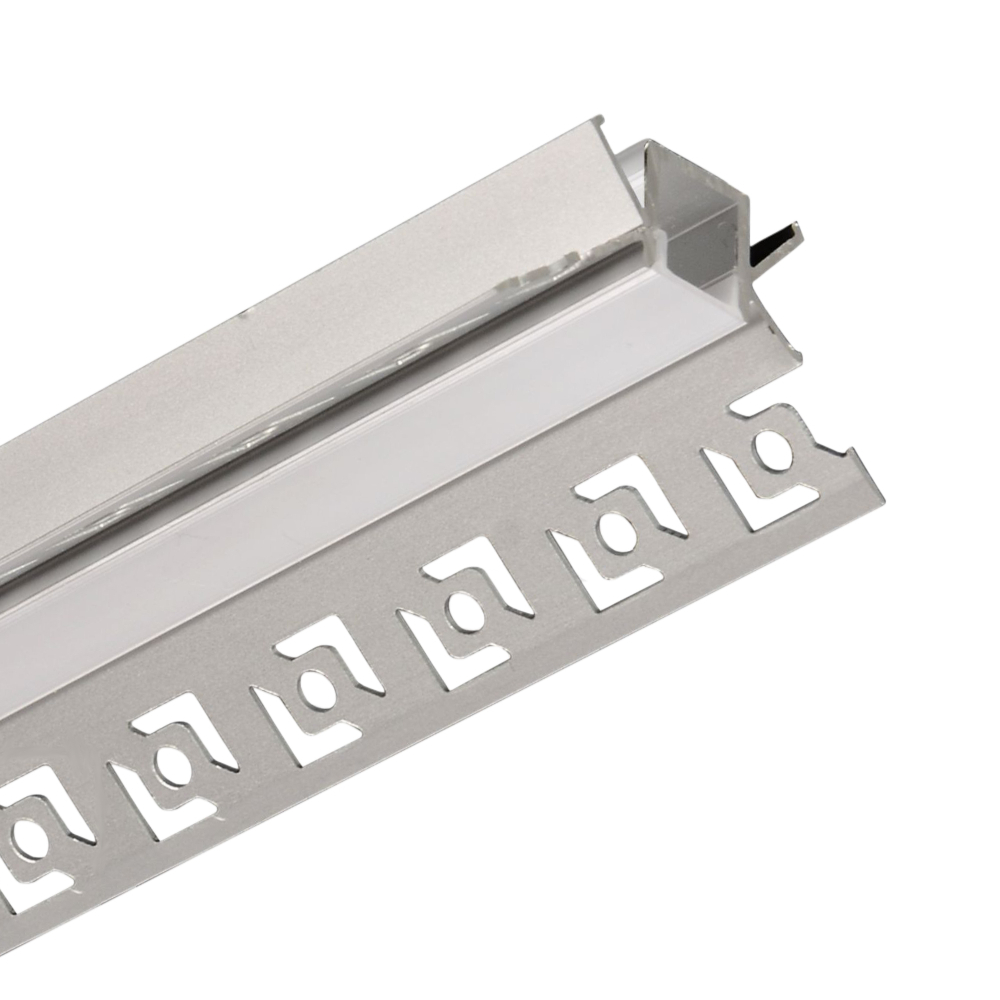

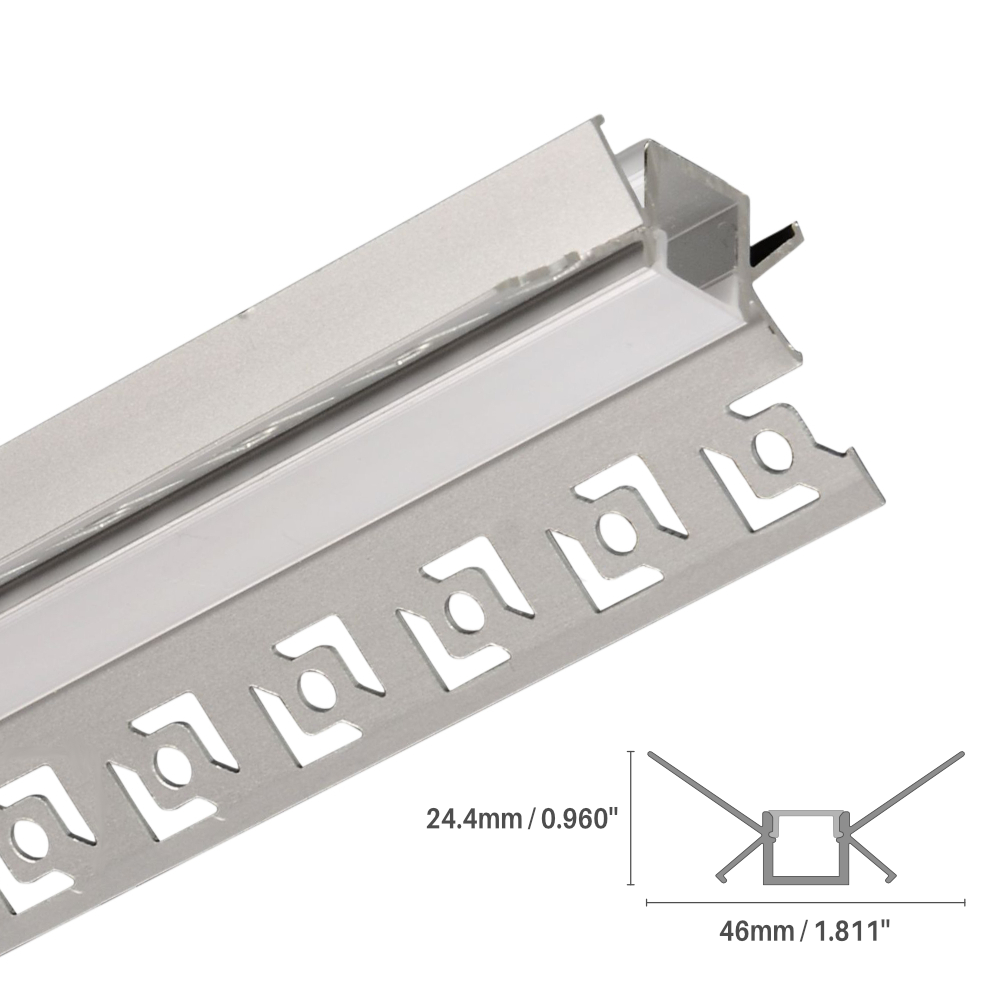

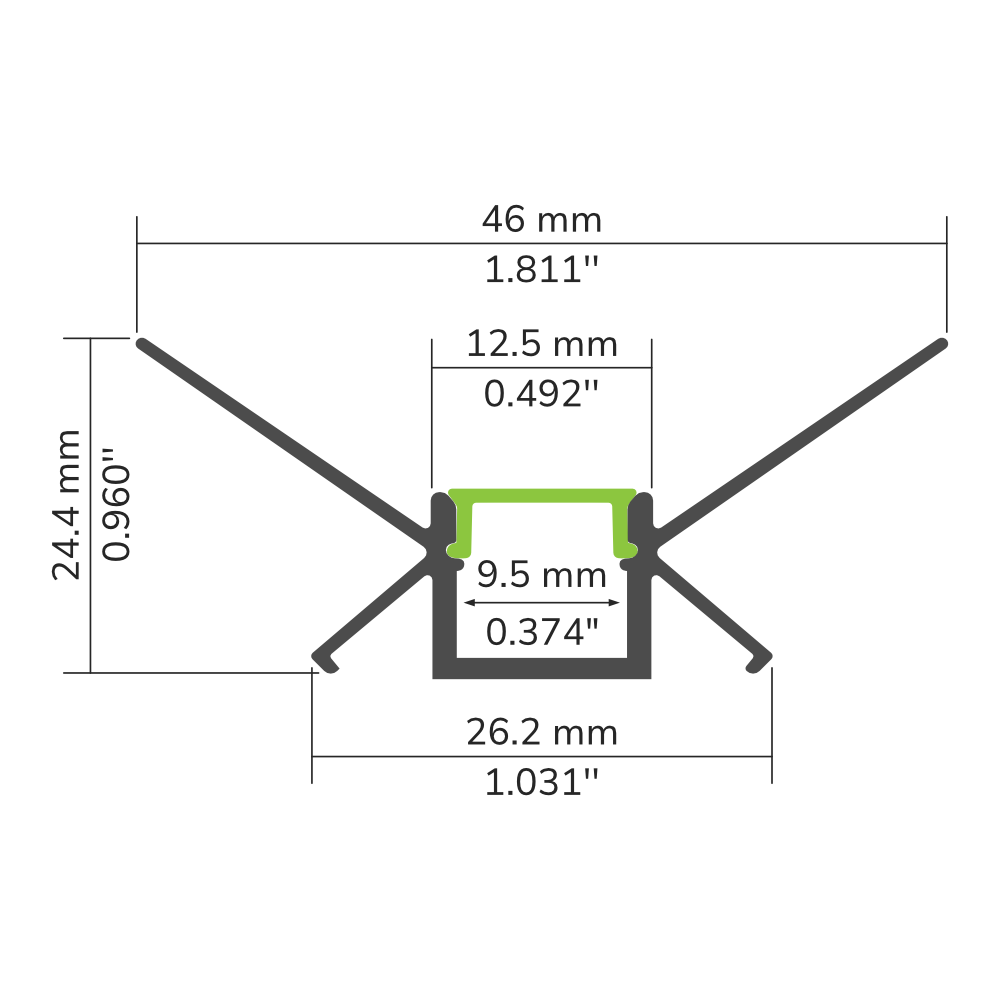

The #96 LED aluminum profile is a recessed profile for inside corners: it sits in the angle, its flanges set into both surfaces and its lens directs the light diagonally into the room. At 46 mm wide by 24.4 mm high (1.811 × 0.960 in), with a 12.5 mm (0.492 in) body and a 9.5 mm (0.374 in) inner channel, it turns a simple LED strip into a clean line of light built into the corner.

Extruded from 6063-T5 aluminum, it acts as a heat sink: the strip runs cooler, its LEDs age more slowly and your lighting keeps its brightness longer. It comes complete, with its opal lens, which spreads the light over 120°, and its polycarbonate end caps. The finish is silver anodized aluminum.

• Components also sold separately
• Ships in 24 h
• Delivery across Canada

Custom Orders

Need a specific length or assembly? Request a quote. The profile and the strips are also sold separately.

Which LED Strip Should You Choose?

The #96 takes our 24V LED strips up to 8 mm wide:

• 4.8 W/m LED strip
• 9.6 W/m LED strip
• 19.2 W/m waterproof IP66 LED strip
• 11 W/m COB LED strip
• 10 W/m spa and sauna LED strip

Lens and Finish

• Opal lens included – spreads the light over 120° and hides the strip.
• Finish – silver anodized aluminum.

Indoors or outdoors: the profile is aluminum, the strip is what makes the difference. For outdoor or damp locations, pick the waterproof version of your strip from our IP66 outdoor LED strips.

The dimensioned drawing is in the spec sheet available for download below.
