LED ALUMINUM PROFILE #50

💡 10 ft (3.05 m) length · lens and end caps included · 65.3 mm base for multiple strips

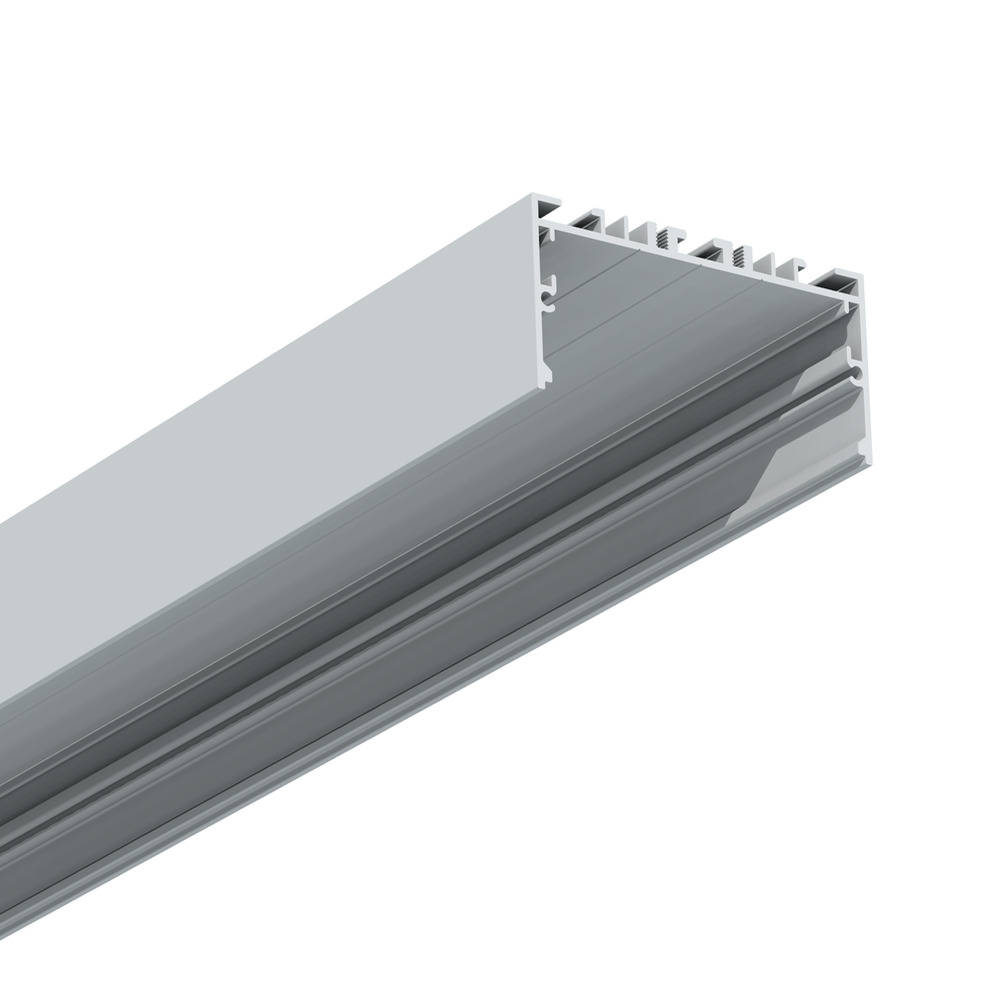

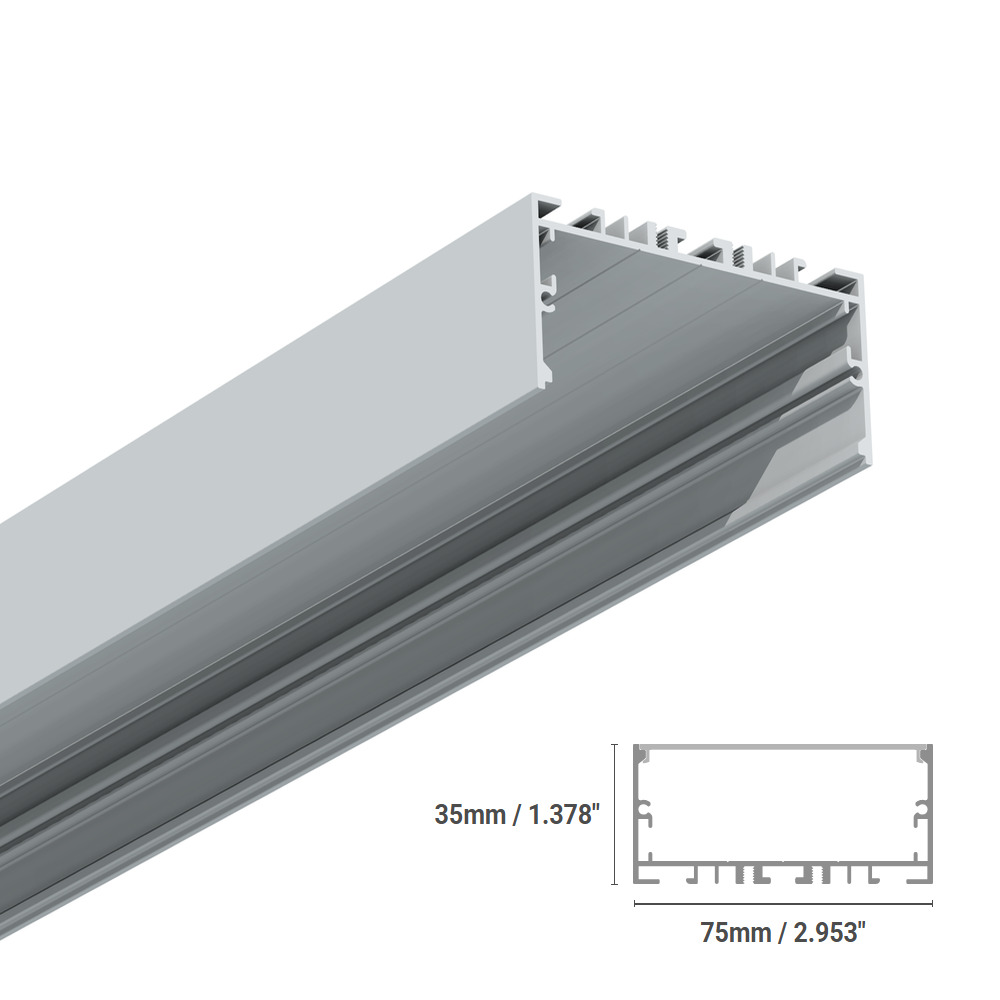

The #50 LED aluminum profile is a wide, deep 75 × 35 mm (2.953 × 1.378 in) profile for surface or suspended mounting. Its 65.3 mm (2.571 in) base holds several strips side by side, turning a simple LED strip into high-output linear lighting.

Extruded from 6063-T5 aluminum, it dissipates heat efficiently and extends the life of the strip. The 27.75 mm (1.093 in) between the base and the lens gives a soft, even light with no hot spots. It comes complete with its lens and end caps. 3-year warranty.

• Components also sold separately
• Ships in 24 h
• Delivery across Canada

Custom Orders

Need a specific length or assembly? Request a quote. The profile and the strips are also sold separately.

Which LED Strip Should You Choose?

With its 65.3 mm base, the #50 takes these 24V LED strips, even several side by side:

• 4.8 W/m LED strip
• 9.6 W/m LED strip
• 19.2 W/m LED strip
• 28.8 W/m LED strip
• 11 W/m COB LED strip
• 14.4 W/m RGB LED strip
• 19.2 W/m RGBW LED strip
• 20 W/m CCT LED strip
• 17 W/m Dim-to-Warm LED strip

Lens and Finish

• Opaque lens included – shipped with the profile, along with the end caps; it softens the light.
• Finish – aluminum.

Indoors or outdoors: the profile is aluminum, the strip is what makes the difference. For outdoor or damp locations, pick the waterproof version of your strip from our IP66 outdoor LED strips.

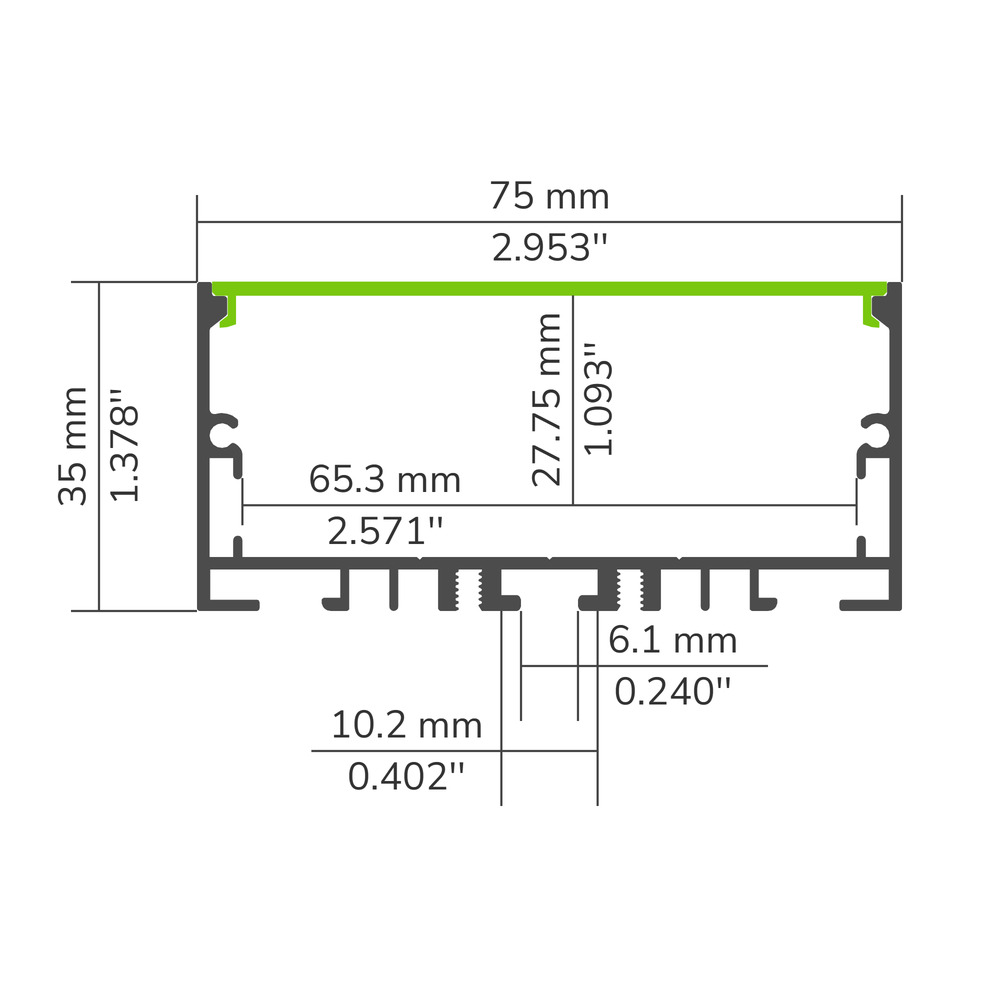

The dimensioned drawing is in the spec sheet available for download below.
