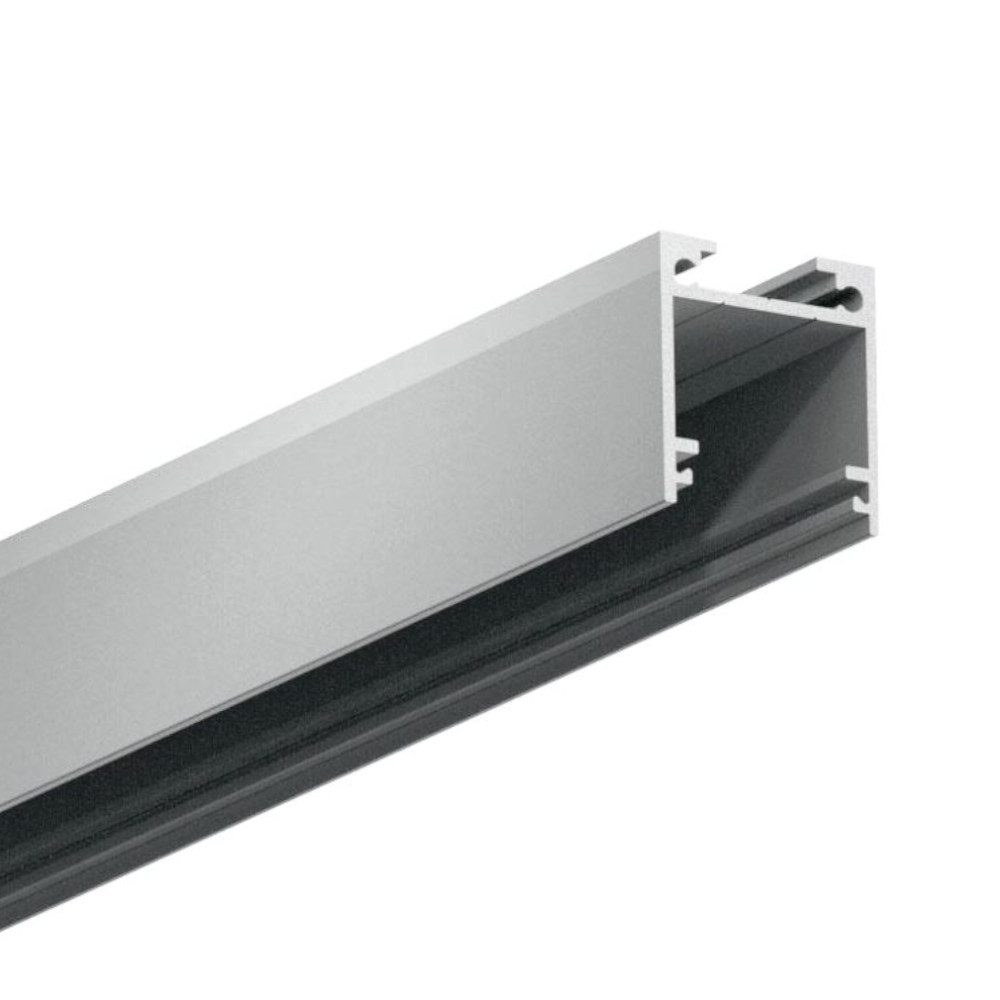

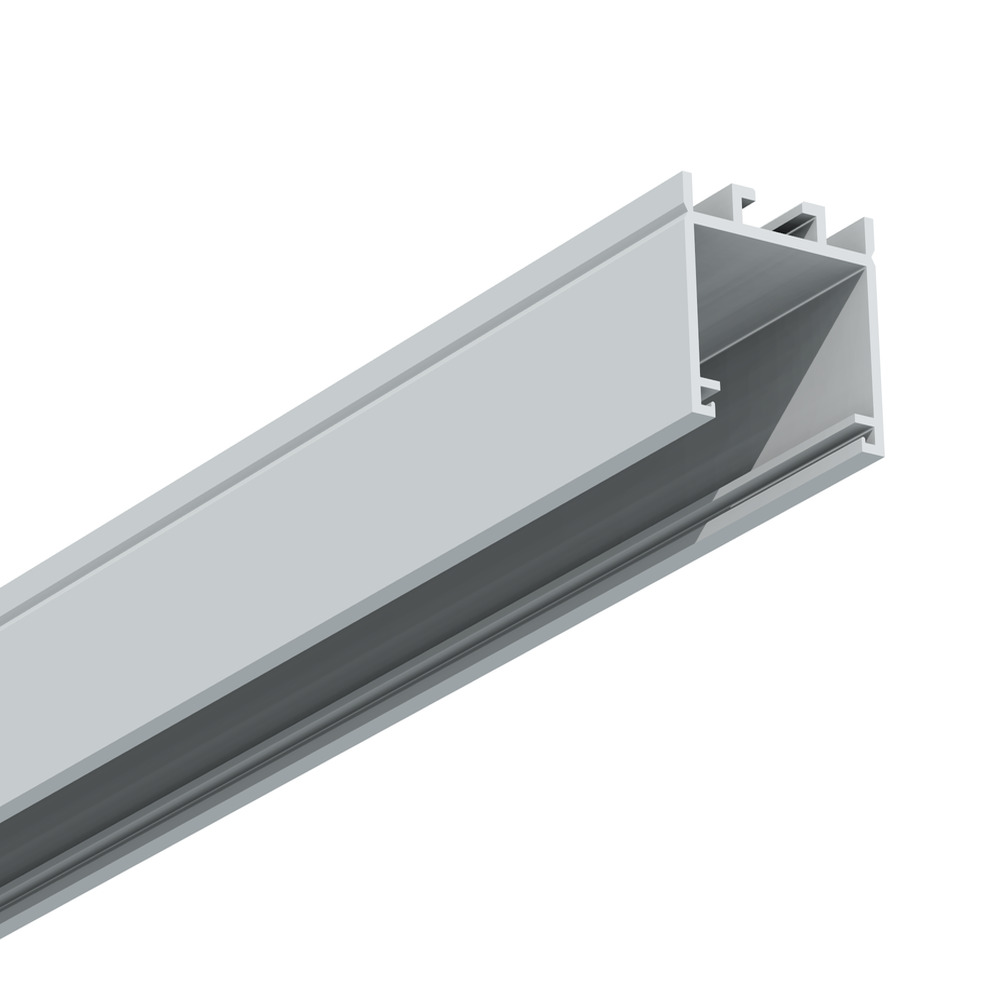

LED ALUMINUM PROFILE #81

💡 8 ft (2.44 m) or 16 ft (4.88 m) lengths · custom cuts · aluminum or black finish · surface or suspended mounting

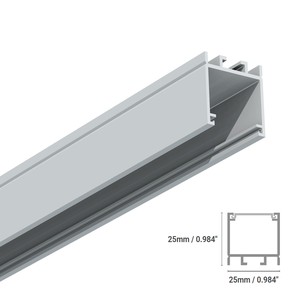

The #81 LED aluminum profile is a large 25 × 25 mm (0.984 × 0.984 in) square profile designed for commercial and architectural projects. Mount it on a surface or suspend it with its dedicated kits, and turn a simple LED strip into a continuous, professional line of light.

Extruded from 6063-T5 aluminum, its square cross-section takes a wide range of strips and dissipates heat well: the strip runs cooler and keeps its brightness longer. Its optional opal lens slides into the profile for a secure hold. The #81 comes in aluminum or black. 3-year warranty; certified for the Canadian market.

• Custom fabrication, cETL certified
• Components also sold separately
• Ships in 24 to 48 h
• Delivery across Canada

Custom Fabrication

We build your custom fixtures to your lengths in our cETL-certified warehouse. A manufactured fixture must be approved to meet the electrical code and the requirements of the Régie du bâtiment du Québec: ours are.

Get your quote in minutes with our Custom LED Builder. Prefer to assemble it yourself? All components are also sold separately.

Which LED Strip Should You Choose?

With its 17.52 mm inside opening, the #81 takes these 24V LED strips:

• 4.8 W/m LED strip
• 9.6 W/m LED strip
• 19.2 W/m LED strip
• 28.8 W/m LED strip
• 11 W/m COB LED strip
• 14.4 W/m RGB LED strip
• 19.2 W/m RGBW LED strip
• 20 W/m CCT LED strip
• 17 W/m Dim-to-Warm LED strip

Lens and Finishes

• Opal lens – available with the profile, in aluminum or black; it diffuses and softens the light.
• #81 opal lens, 8 ft – sold separately.
• #81 opal lens, 16 ft – sold separately.
• Finishes – aluminum or black.

Accessories

• #81 Phantom mounting bracket – sold individually, for surface mounting.
• #81 suspension kit – sold individually, to hang the profile.
• #81 suspension kit, black – sold individually, to match the black profile.

Indoors or outdoors: the profile is aluminum, the strip is what makes the difference. For outdoor or damp locations, pick the waterproof version of your strip from our IP66 outdoor LED strips.

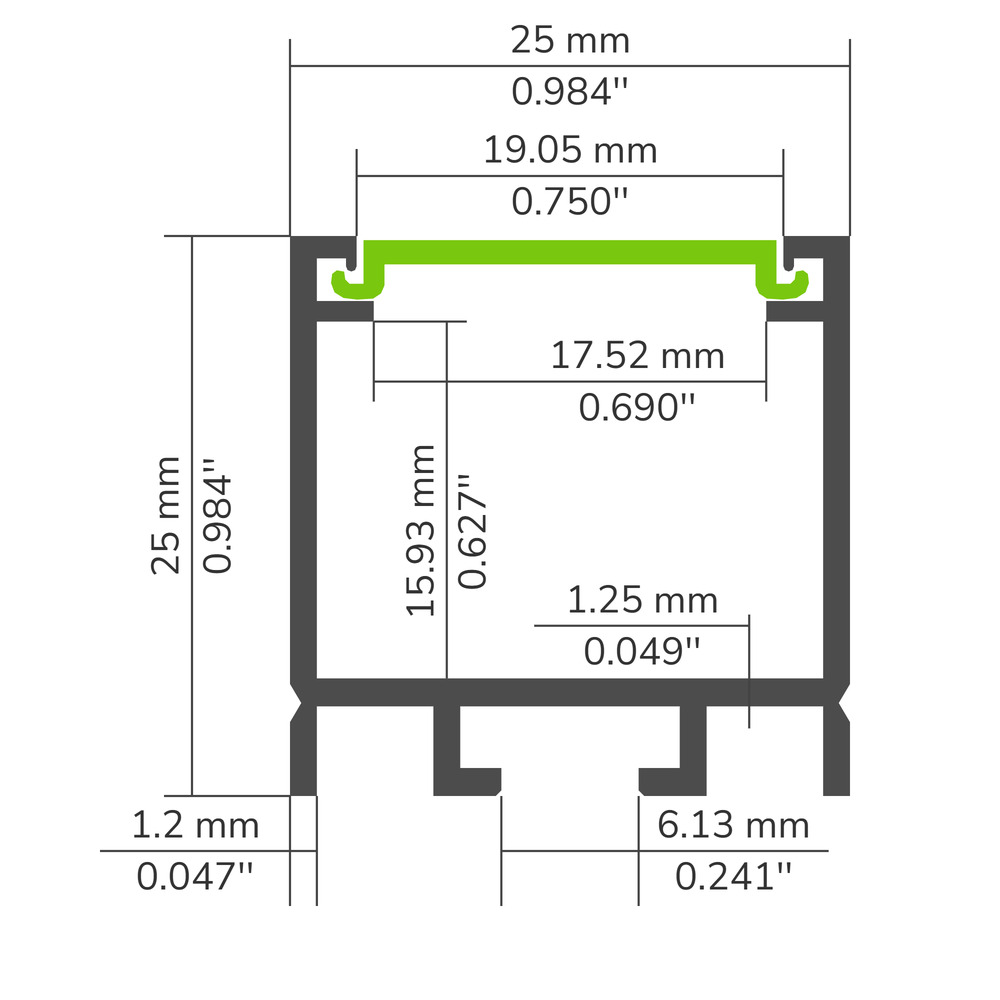

The dimensioned drawing is in the spec sheet available for download below.
