LED ALUMINUM PROFILE #49
SKU: LCPROF-49-8FT
💡 8 ft (2.44 m) or 16 ft (4.88 m) lengths · custom cuts · aluminum, black or white finish · surface or suspended mounting
The #49 LED aluminum profile is a large 43 × 43 mm (1.693 × 1.693 in) square profile that mounts on a surface or hangs from its suspension kits. Its channel, 39 mm (1.535 in) wide and 20.32 mm (0.800 in) deep, turns a simple LED strip into a clean, professional line of light.
Extruded from ALCOA 6063-T5 aluminum, it acts as a heat sink: the strip runs cooler, its LEDs age more slowly and your lighting keeps its brightness longer. It comes in natural aluminum, black or white, with or without an opaque lens, and can be painted to match your décor. 3-year warranty; certified for the Canadian market.
- Custom fabrication, cETL certified
- Components also sold separately
- Delivery across Canada
Custom Fabrication
We build your custom fixtures to your lengths in our cETL-certified warehouse. A manufactured fixture must be approved to meet the electrical code and the requirements of the Régie du bâtiment du Québec: ours are.
Get your quote in minutes with our Custom LED Builder. Prefer to assemble it yourself? All components are also sold separately.
Which LED Strip Should You Choose?
The #49 channel is 39 mm wide inside. It takes these 24V LED strips:
- 4.8 W/m LED strip
- 9.6 W/m LED strip
- 19.2 W/m LED strip
- 28.8 W/m LED strip
- 19.2 W/m RGBW LED strip
- 20 W/m CCT LED strip
- 17 W/m Dim-to-Warm LED strip
Lens and Finishes
- Opaque lens – available with the profile in all three finishes; it diffuses the light. Also sold separately in 8 ft.
- Finishes – natural aluminum, black or white; the profile can also be painted.
Accessories

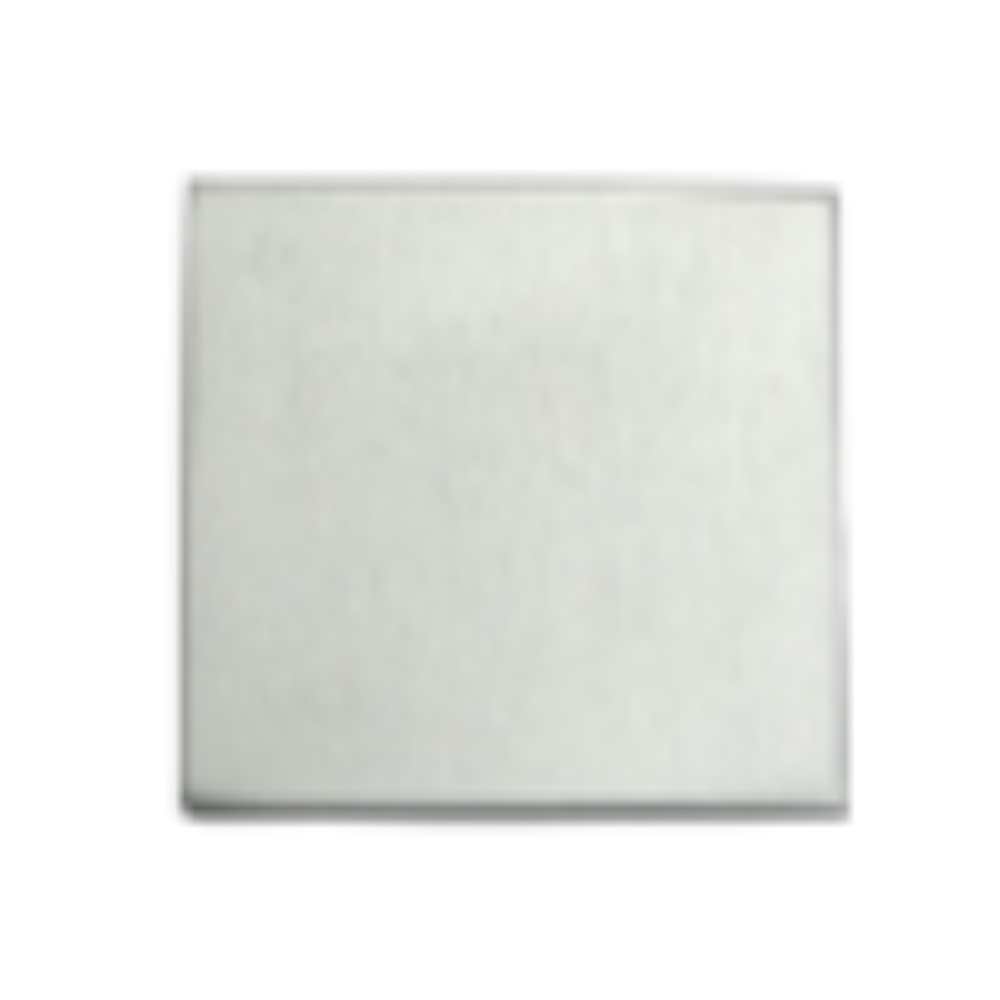

- #49 finishing end cap

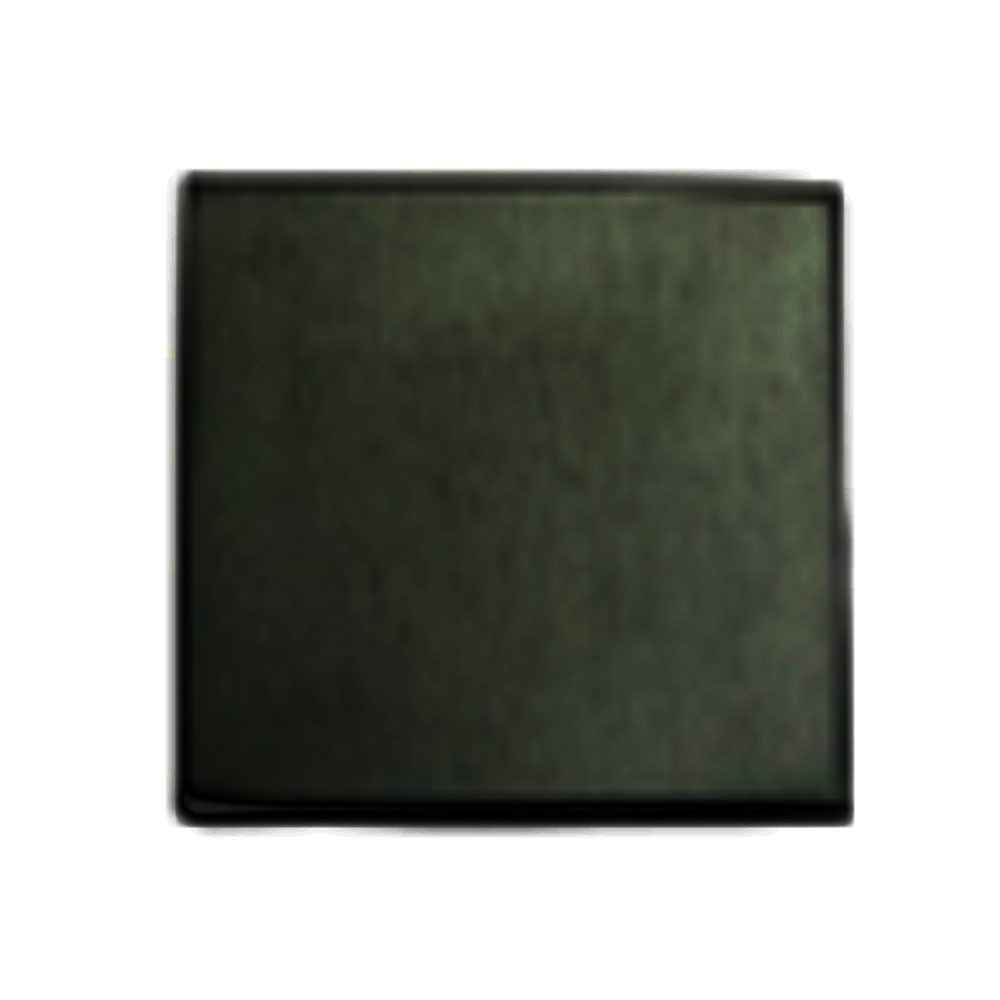

- #49 finishing end cap, black
- #49 finishing end cap, white
- #49/#87 suspension kit – to hang the profile.
- #49/#87 suspension kit, black – to match the black profile.
Indoors or outdoors: the profile is aluminum, the strip is what makes the difference. For outdoor or damp locations, pick the waterproof version of your strip from our IP66 outdoor LED strips.
The dimensioned drawing is in the spec sheet available for download below.
119.95$
SPECIFICATIONS
- Type: large square profile, surface or suspended mounting (suspension kits)
- Dimensions: 43 mm × 43 mm (1.693 × 1.693 in)
- Channel: 39 mm wide (1.535 in) · 20.32 mm deep (0.800 in)
- Compatible strips: 24V, 8 to 12 mm wide
- Lengths: 8 ft and 16 ft · custom cuts
- Finishes: natural aluminum, black, white
- Lens: opaque, optional (also sold separately in 8 ft)
- End caps: finishing caps without hole (aluminum, black, white), sold separately
- Material: ALCOA 6063-T5 aluminum alloy
- Use: indoor and outdoor (IP66 strip outdoors)
- Warranty: 3 years · certified for the Canadian market
