LED ALUMINUM PROFILE #90

Name: LED ALUMINUM PROFILE #90
Brand: LEDCO
SKU: LCPROF-90-8FT
Price: 44.95 CAD
Availability: InStock

SKU: LCPROF-90-8FT

💡 8 ft (2.44 m) or 16 ft (4.88 m) lengths · aluminum or black finish · opaque or frosted lens

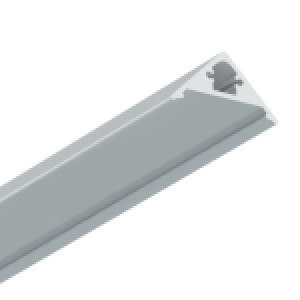

The #90 LED aluminum profile is a corner profile: its triangular base fits a 90° angle and its domed lens throws the light at 45°, without hot spots. With 18 mm (0.709 in) sides and a 17.5 mm (0.689 in) lens, it highlights a display and turns a simple LED strip into precise accent lighting.

Extruded from ALCOA 6063-T5 aluminum, it acts as a heat sink and extends the life of the strip. Its lens locks in mechanically along the full length to last. It can be painted to match your décor. 3-year warranty.

Custom fabrication, cETL certified
Components also sold separately
Delivery across Canada

Custom Fabrication

We build your custom fixtures to your lengths in our cETL-certified warehouse. A manufactured fixture must be approved to meet the electrical code and the requirements of the Régie du bâtiment du Québec: ours are.

Get your quote in minutes with our Custom LED Builder. Prefer to assemble it yourself? All components are also sold separately.

Which LED Strip Should You Choose?

The #90 takes our 24V LED strips up to 10 mm wide:

Lenses and Finishes

Opaque lens – spreads the light evenly; also sold separately in 8 ft.
Frosted lens – a lighter diffusion.
Finishes – natural aluminum or black.

Accessories

#90 45° clips – sold individually, to mount the profile in the corner.
3M double-sided tape – to stick the profile instead of screwing it.

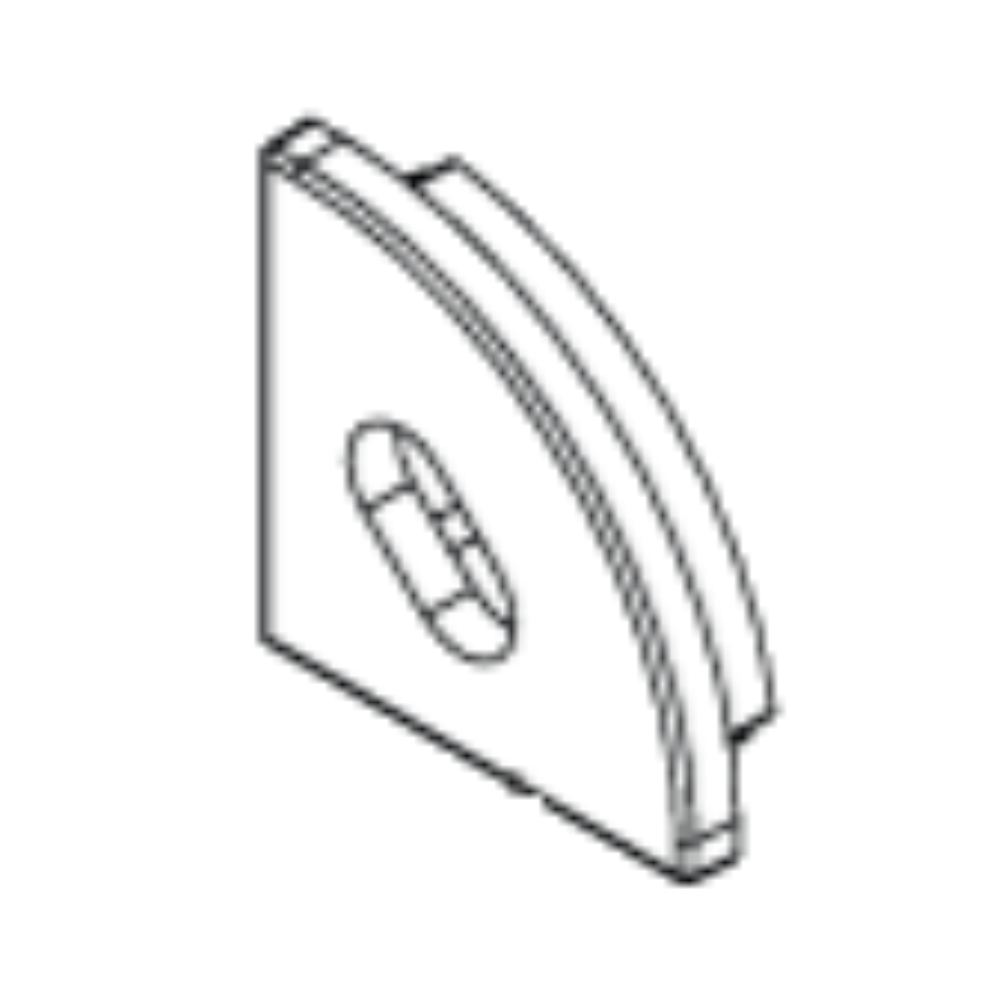

#90 end cap with hole
#90 end cap with hole, black

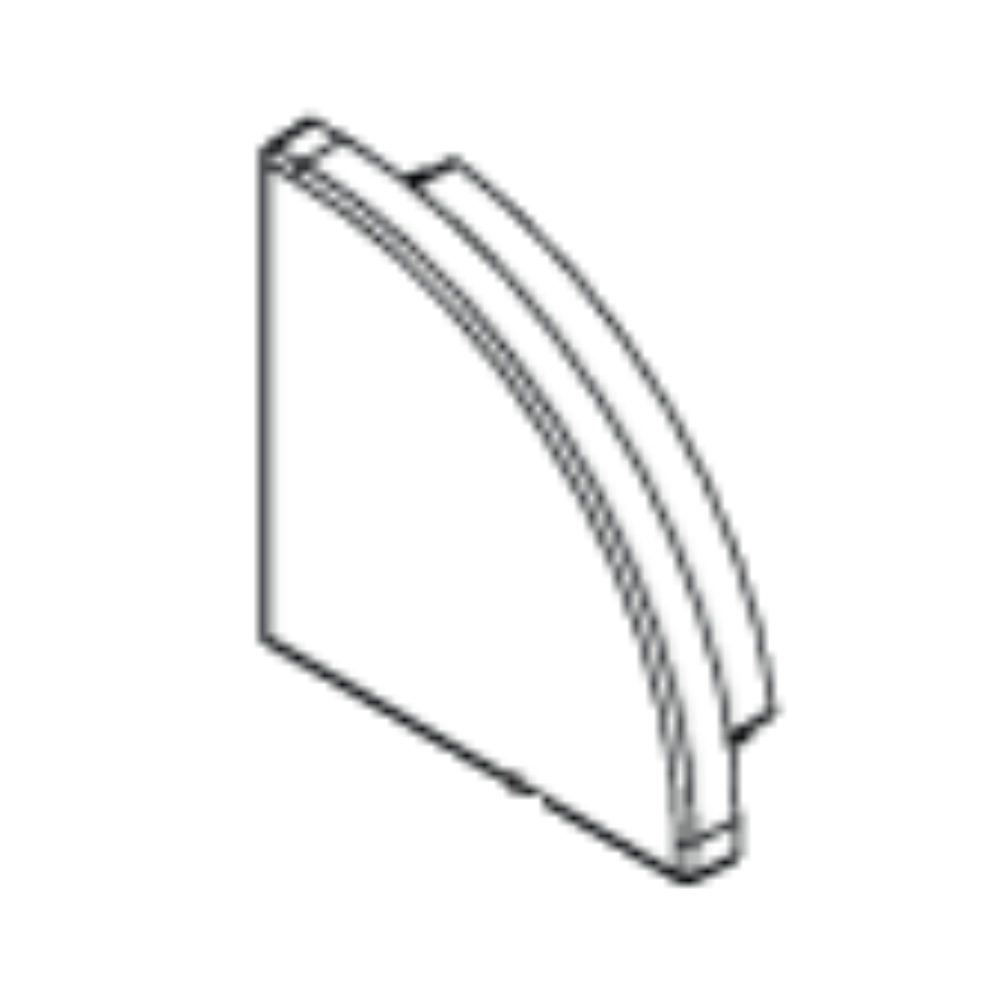

#90 end cap without hole
#90 end cap without hole, black

Indoors or outdoors: the profile is aluminum, the strip is what makes the difference. For outdoor or damp locations, pick the waterproof version of your strip from our IP66 outdoor LED strips.

The dimensioned drawing is in the spec sheet available for download below.

44.95$

Quantity

● Shipping:

SPECIFICATIONS

Type: corner profile (90° angle), 45° directed light
Dimensions: 18 mm sides (0.709 in) · 17.5 mm lens (0.689 in) · lens height 15.6 mm (0.614 in)
Compatible strips: 24V, up to 10 mm wide
Lengths: 8 ft and 16 ft · custom cuts
Finishes: natural aluminum, black
Lenses: opaque, frosted
Installation: 45° clips or double-sided tape
End caps: with or without hole (aluminum, black)
Material: ALCOA 6063-T5 aluminum alloy
Use: indoor and outdoor (IP66 strip outdoors)
Warranty: 3 years · certified for the Canadian market
