LED ALUMINUM PROFILE #91

💡 10 ft (3.05 m) length · opal lens and 2 end caps included

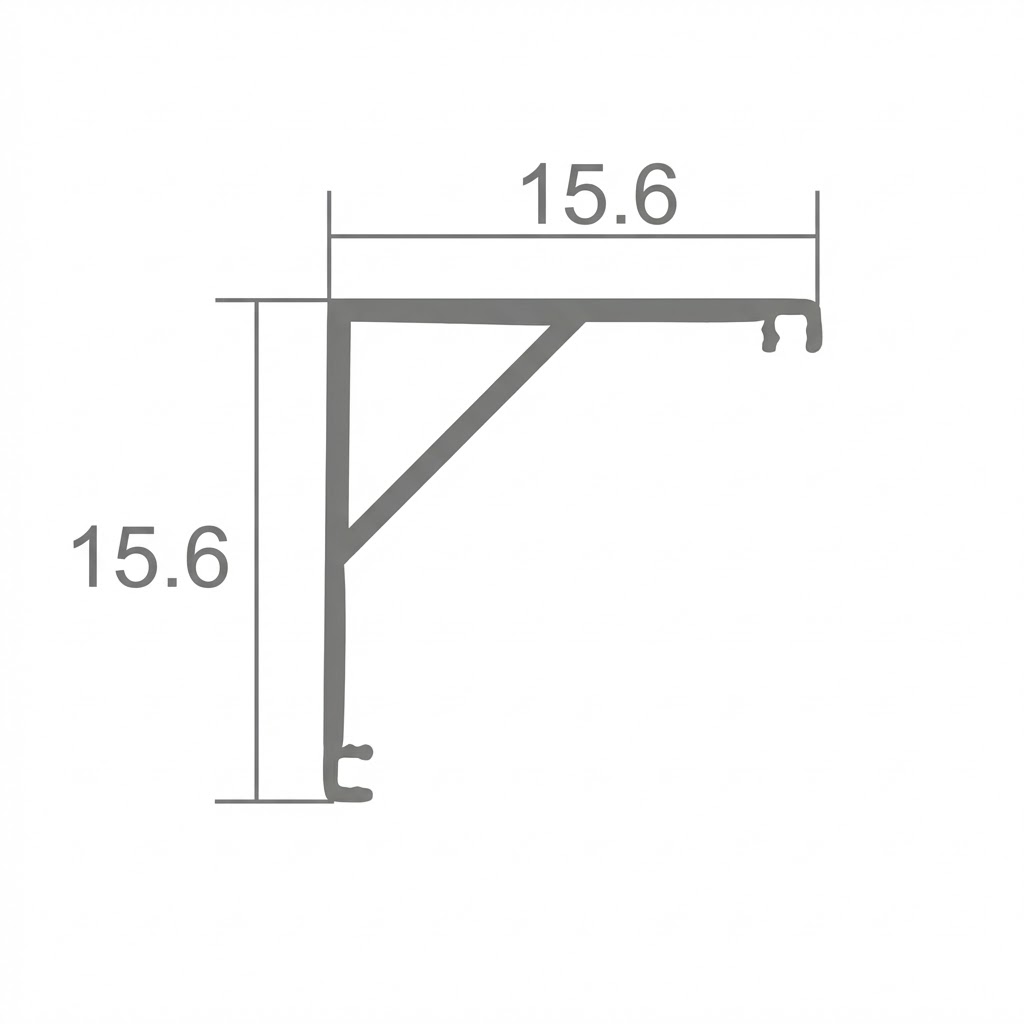

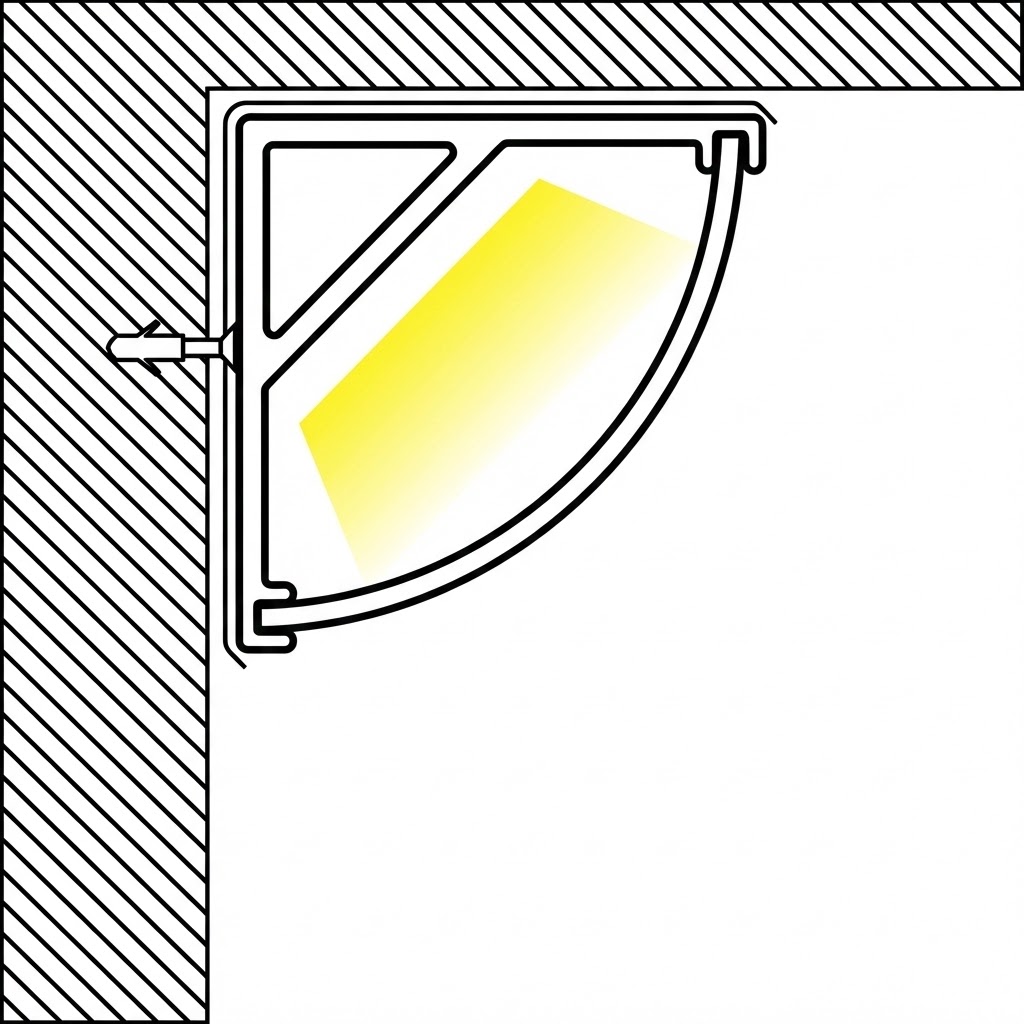

The #91 LED aluminum profile is a corner profile: it sits in a 90° angle and directs the light diagonally into the room. With its 15.6 × 15.6 mm (0.614 × 0.614 in) cross-section, it blends into the corner and turns a simple LED strip into a clean, professional line of light.

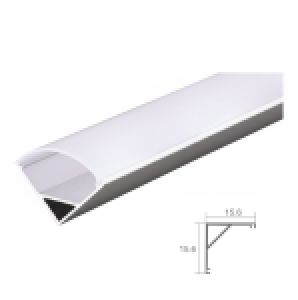

Extruded from anodized 6063-T5 aluminum, it acts as a heat sink: the strip runs cooler, its LEDs age more slowly and your lighting keeps its brightness longer. Its quarter-round opal lens spreads a soft, even light. The #91 comes complete, with its lens and 2 finishing end caps.

• Custom fabrication, cETL certified
• Components also sold separately
• Ships in 24 h
• Delivery across Canada

Custom Fabrication

We build your custom fixtures to your lengths in our cETL-certified warehouse. A manufactured fixture must be approved to meet the electrical code and the requirements of the Régie du bâtiment du Québec: ours are.

Get your quote in minutes with our Custom LED Builder. Prefer to assemble it yourself? All components are also sold separately.

Which LED Strip Should You Choose?

The #91 takes our 24V LED strips up to 10 mm wide:

• 4.8 W/m LED strip
• 9.6 W/m LED strip
• 19.2 W/m LED strip
• 28.8 W/m LED strip
• 11 W/m COB LED strip
• 10 W/m spa and sauna LED strip
• 14.4 W/m RGB LED strip
• 19.2 W/m RGBW LED strip
• 20 W/m CCT LED strip
• 17 W/m Dim-to-Warm LED strip

Lens and Finish

• Opal lens included – quarter-round, it softens the light and hides the strip.
• Finish – anodized aluminum.

Accessories

• 2 finishing end caps – included with every profile.
• #91 end cap with hole – for the power wire exit.
• #91 end cap without hole – a spare, or for an extra cut.

Indoors or outdoors: the profile is aluminum, the strip is what makes the difference. For outdoor or damp locations, pick the waterproof version of your strip from our IP66 outdoor LED strips.

The dimensioned drawing is in the spec sheet available for download below.
