PIXEL LED STRIP 19W/M (RGBW)

PIXEL LED STRIP 19W/M (RGBW)

SKU: LCLS24V-19W-PIX-RGBW-30K-IP22

💡 Roll: 5 m

A 24 V RGBW pixel LED strip at 19 W/m whose diodes are individually addressable through the UCS2904 IC, for animated sequences, chases and moving gradients. Its 3000K white channel adds warm white light to the color effects, on a single strip. It requires a dedicated pixel controller; indoor IP22, in 5 m rolls.

At a Glance

  • Addressable diodes, UCS2904 IC
  • SMD 5050 RGBW chips, 3000K white
  • 120° beam angle
  • Dedicated pixel controller required
  • Lifespan: 50,000+ hours
  • Indoor IP22
  • cULus certified

Addressable Pixel Technology — UCS2904

The UCS2904 integrated circuit built into each pixel enables cascading digital communication over a single data signal. Each pixel receives, executes and retransmits the next instruction, eliminating complex wiring and allowing long installations from a single data injection point. This protocol is compatible with dedicated pixel controllers and smart home systems supporting the UCS/WS standard.

This RGBW pixel strip is incompatible with standard controllers (W21, R21, W24, R24) and 120V wall dimmers. It exclusively requires a dedicated pixel controller.

Recommended Applications

This Pixel RGBW 19W/m LED strip is ideal for:

  • Animated lighting effects and dynamic sequences for bars, restaurants and event spaces
  • Premium architectural lighting with chasing effects, gradients and color movement
  • Stage decoration, artistic installations and professional stage lighting
  • TV and gaming backlighting with custom pixel-by-pixel Ambilight effects
  • Advanced smart home projects requiring individual control of each diode

Installation and Compatible Profiles

With a 120° beam angle, this pixel strip delivers uniform color with no visible dark spots. Its IP22 rating makes it perfectly suited for dry indoor environments. For maximum lifespan and a premium architectural finish, installation inside an aluminum profile is strongly recommended. The profile improves heat dissipation and delivers a clean light line through its integrated diffuser.

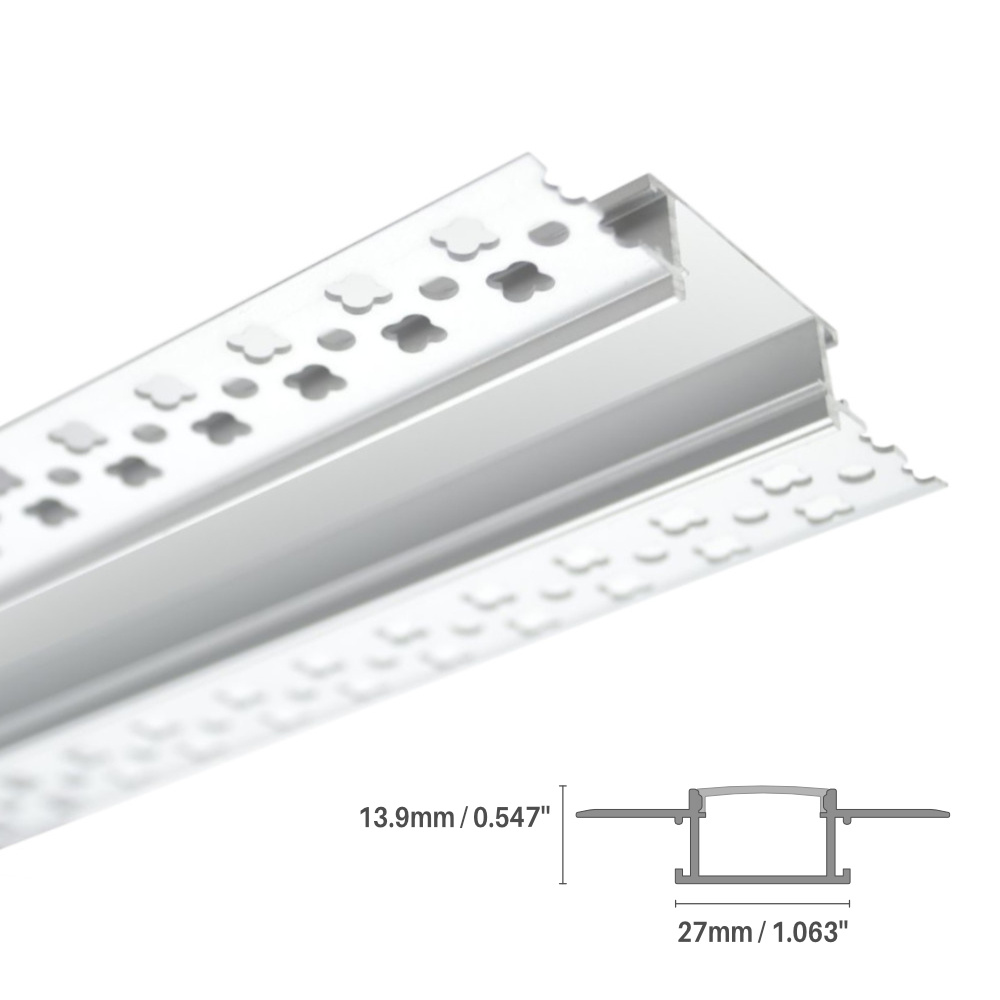

Aluminum profiles compatible with this 8 mm strip: Profile #80, Profile #84, Profile #85, Profile #90, Profile #91, Profile #49, Profile #50, Profile #81, Profile #87, Profile #86, Profile #88, Profile #89, Profile #92, Profile #95, Profile #96, Profile #97, Profile #315, Drywall Apsis, Drywall Latus, Drywall Sulcus.

Power Supply Calculator

This strip draws 19 W/m, or 5.79 W per foot. Multiply the installed length by 5.79, then choose a 24 V power supply loaded to 80% maximum of its rating.

Maximum strip length per dimmable power supply (24 V):

  • 24 W (LCPSLCODIM-24V-24W): up to 3.3 ft (1.0 m)
  • 48 W (LCPSLCODIM-24V-48W): up to 6.6 ft (2.0 m)
  • 96 W (LCPSLCODIM-24V-96W): up to 13.3 ft (4.0 m)
  • 200 W (LCPSLCODIM-24V-200W): up to 27.6 ft (8.4 m)
  • 300 W (LCPSLCODIM-24V-300W): up to 41.4 ft (12.6 m)

5-in-1 power supplies (TRIAC, 0-10 V, 1-10 V, PWM) are also available: see the full table in the spec sheet.

Pixel Control

This RGBW pixel strip requires a dedicated pixel controller compatible with the UCS2904 protocol. Standard controllers (W21, R21, W24, R24) and 120V wall dimmers are incompatible with this strip — they cannot handle the pixel-by-pixel addressable digital signal.

The pixel controller connects between the power supply and the LED strip, and allows effects, sequences and animations to be programmed via a dedicated mobile app or remote. For multi-reel installations, each additional reel must be connected in cascade from the output of the previous reel to maintain pixel signal continuity.

  • RGBW Pixel Remote – Controls pixel effects, colors and brightness, with animated sequence programming.

Lengths and Custom Orders

Sold in a 5 m roll. For a custom length, contact us.

The spec sheet and the voltage drop chart are in the downloadable documents below.

Shipped in 24h

179.95$


● Shipping:

SPECIFICATIONS

  • Consumption: 14.4W/m
  • Color temperature: RGB
    (red, green, blue)
  • PCB width: 8mm
  • Cut every: 50mm (6 LED)
  • Projection angle: 120°
  • Voltage: 24V DC
  • Certification: cULus
  • Lifespan: 50 000h
  • Protection: IP22
  • Recommended Installation: Mounting in an aluminum profile for optimal heat dissipation
