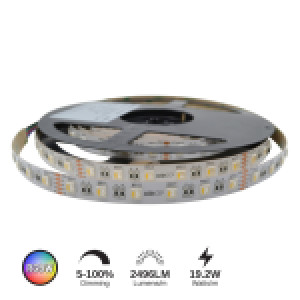

LED STRIP 19.2W/M (RGBW)

💡 Reels available: 5 m (16.4 ft) or 30 m (98.4 ft)

The RGBW 19.2W/m LED strip (IP22) is a premium decorative lighting solution that combines the richness of RGB color with integrated white light. Compatible with 24V DC, it delivers both multicolor ambient lighting and functional white light from a single strip — a unique versatility in the LEDCO lineup.

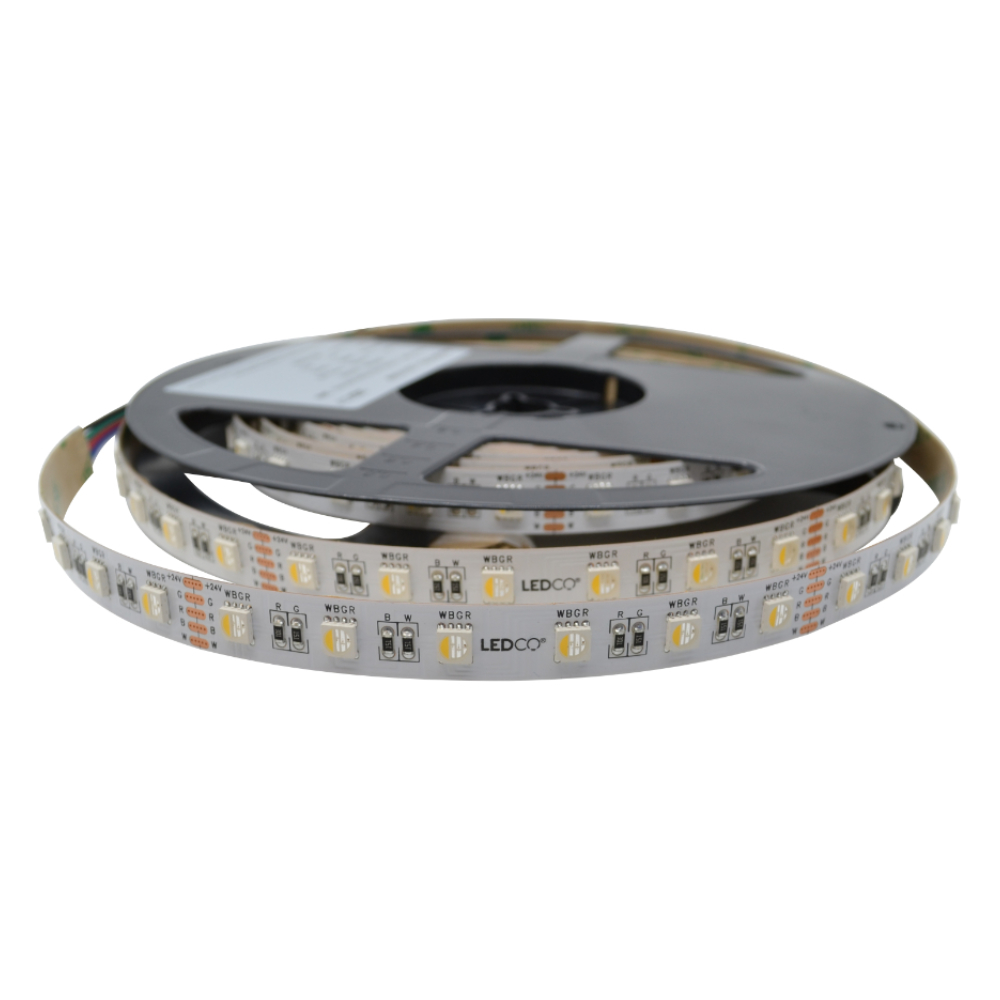

Featuring 60 RGBW SMD 5050 diodes per meter, each diode integrates four independent channels — red, green, blue, and white — enabling millions of color combinations as well as pure white light with no color cast. cULus certified, it meets electrical standards in effect in both Canada and the United States, with a lifespan of up to 50,000 hours.

Color Temperatures

The white channel of this RGBW strip is available in four color temperatures to match the ambiance of your space:

• 2700K (Warm White) – Creates a cozy and relaxing ambiance, ideal for living rooms and bedrooms.
• 3000K (Warm White) – Offers a slightly more neutral tone, perfect for living spaces.
• 3500K (Natural White) – Balances warmth and clarity, suitable for versatile environments.
• 4000K (Natural White) – Promotes a dynamic light, ideal for offices and commercial spaces.

Recommended Applications

This RGBW 19.2W/m LED strip is ideal for:

• Multicolor ambient lighting with pure white option for living rooms and common areas
• TV backlighting, furniture accent and bar lighting with white reading mode
• Decorative lighting for upscale bars, restaurants and event spaces
• Colored architectural accent lighting in retail, showrooms and boutiques

Performance and Installation

With a 120° beam angle, this LED strip delivers uniform color and white light with no visible dark spots. Its IP22 rating makes it perfectly suited for dry indoor environments. For outdoor or humid area installations, explore our range of waterproof outdoor LED strips.

Installation inside an aluminum profile is strongly recommended to optimize heat dissipation and achieve a professional architectural finish.

Power Supply Calculator

This LED strip consumes approximately 6 watts per foot. Simply multiply the total installed length by 6 to determine the required wattage.

Always add a 20% safety margin to ensure system stability and longevity.

• 1 reel (5 m / ~16 ft) = 96W → 115W power supply recommended
• 2 reels (~32 ft) = 192W → 200W or 240W power supply recommended
• 3 reels (~48 ft) = 288W → 300W power supply recommended

Use a 24V power supply matched to the total calculated wattage. For existing 12V systems, a 12V power supply of equivalent wattage can be used.

Color Control and Dimming

The RGBW LED strip is controlled via a wireless controller system made up of a receiver paired with a remote or wireless wall controller. This system lets you adjust brightness, choose from millions of colors, and switch to pure white light — all from a single interface.

A zone is any section of lighting you want to control independently. For example, if you want a ceiling to turn on separately from a niche, or one section to display a different color than another, that represents two distinct zones.

If you want all lighting to always operate together (same color and simultaneous on/off), a single receiver is sufficient for the entire installation. However, if the total power of your project exceeds 225W on that zone, a 20A RGBW LED amplifier must be added to ensure stable, uniform, and lasting power delivery.

• W24 – Wireless RGBW wall controller (AAA batteries), range up to 100 feet, up to 4 zones.
• R24 – RGBW radio-frequency remote, range up to 100 feet, up to 4 zones.
• Universal 4-Zone 12A Receiver – Installed between the power supply and the LED strip to receive the signal (1 per independent zone).
• RGBW LED Amplifier 20A (480W at 24V) – Recommended for installations exceeding 225W per zone.
• RGBW WiFi Controller – Color and intensity control via Apple or Android mobile app.

Length Options

Available in standard 5-meter or 30-meter reels, this LED strip can also be supplied in custom lengths.
