LED ALUMINUM PROFILE #940

SKU: LCPROF-94-8FT

💡 8 ft (2.44 m) or 16 ft (4.88 m) lengths · custom up to 240 in · aluminum, black or white finish

The #940 LED aluminum profile is a sturdy profile with twin mounting channels: on swivel arms, on a surface or suspended, it installs in many ways. With its 41.3 × 41.3 mm (1.630 × 1.630 in) square section, it turns a simple LED strip into uniform lighting without hot spots, with understated elegance.

Its ALCOA 6063-T5 aluminum alloy acts as a heat sink that extends the life of the strip. Built tough, the profile stands up to demanding use and extreme weather, and is suitable for outdoor installation. Three slot positions hold the strip insert to set the beam angle, and its 33 mm wide area accepts several strips side by side. Available in natural aluminum, black or white, it can also be painted. 3-year warranty.

Custom fabrication, cETL certified
Components also sold separately
Delivery across Canada

Custom Fabrication

We build your custom fixtures to your lengths in our cETL-certified warehouse. A manufactured fixture must be approved to meet the electrical code and the requirements of the Régie du bâtiment du Québec: ours are.

Get your quote in minutes with our Custom LED Builder. Prefer to assemble it yourself? All components are also sold separately.

Which LED Strip Should You Choose?

The #940 has guides for 10 mm wide strips. It takes these 24V LED strips:

Lenses and Finishes

Opaque or Prime lens – the two lenses of our custom-built #940 fixtures.
Finishes – natural aluminum, black or white; the profile can also be painted.

Accessories

#94 suspension kit – sold individually, to hang the profile.
#94 finishing end cap – aluminum, sold individually.

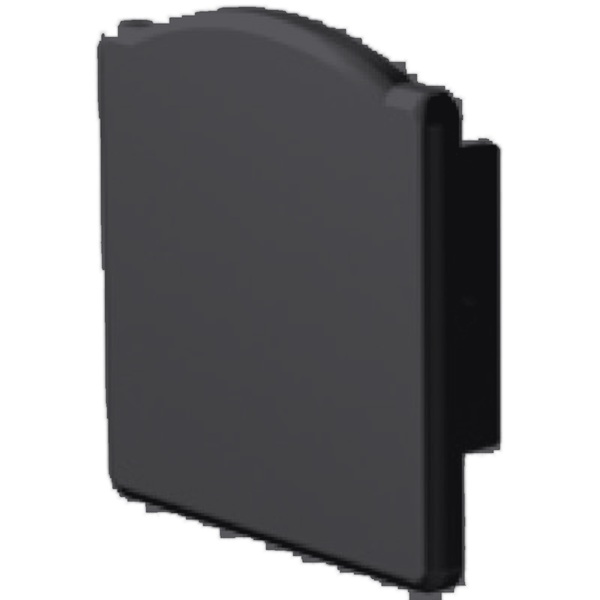

#94 finishing end cap, black – sold individually.

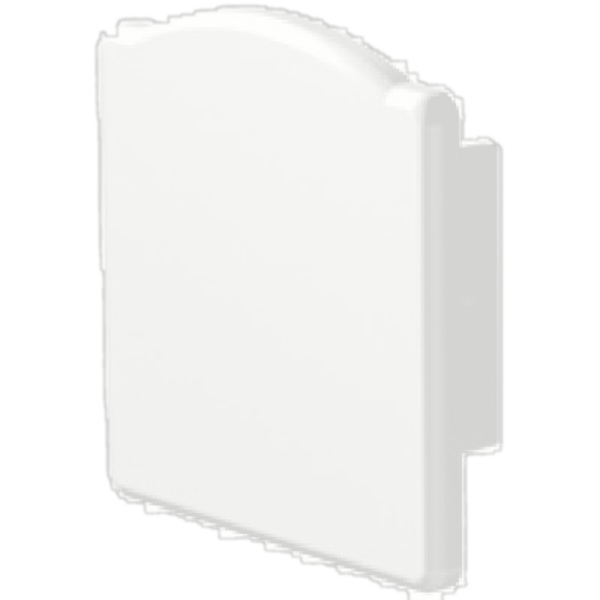

#94 finishing end cap, white – sold individually.

Indoors or outdoors: the profile is aluminum, the strip is what makes the difference. For outdoor or damp locations, pick the waterproof version of your strip from our IP66 outdoor LED strips.

The dimensioned drawing is in the spec sheet available for download below.
